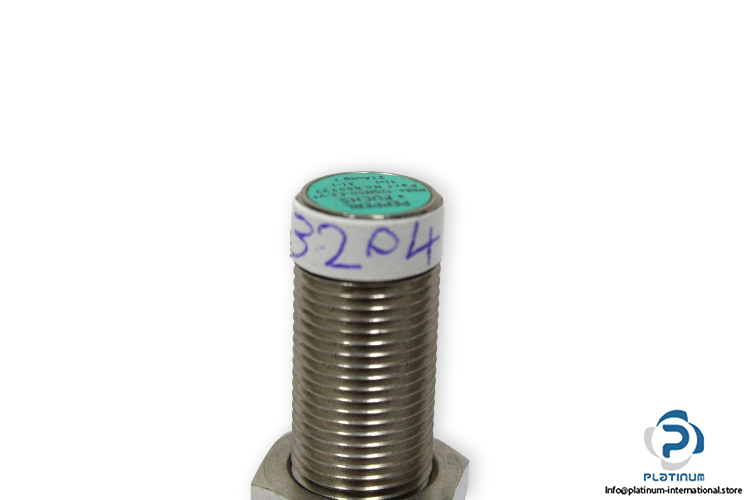

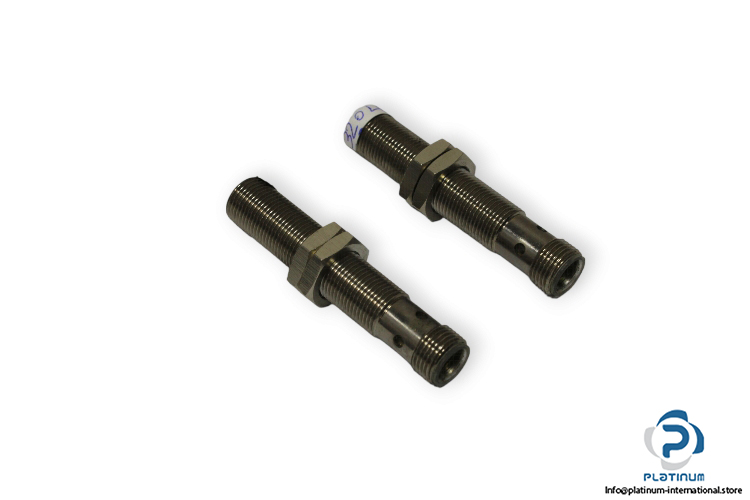

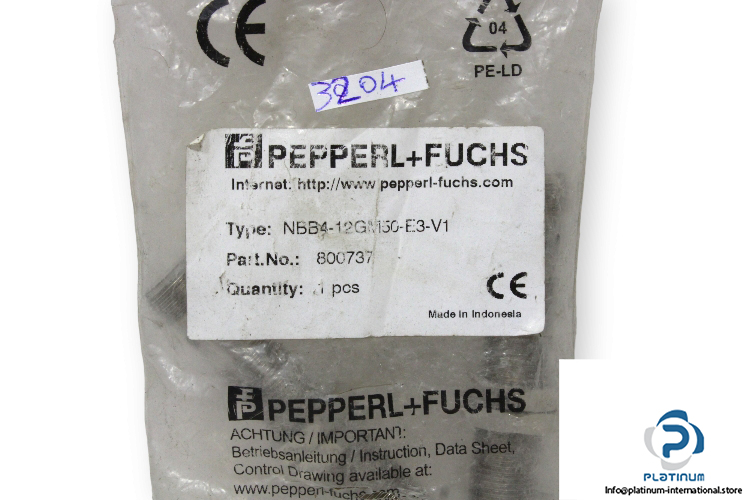

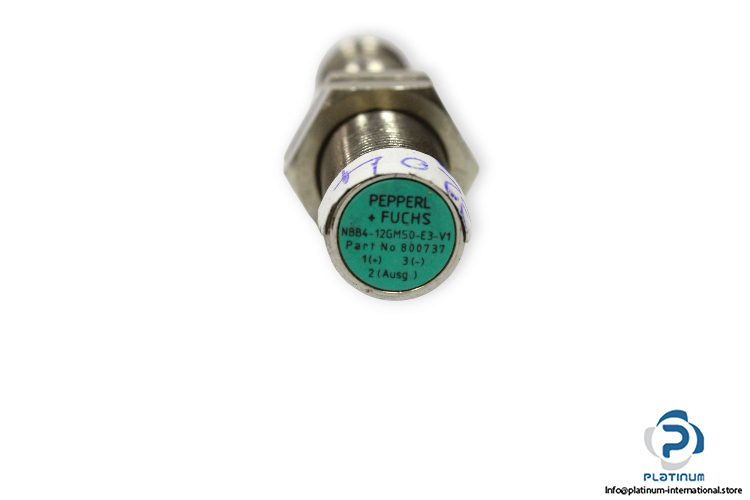

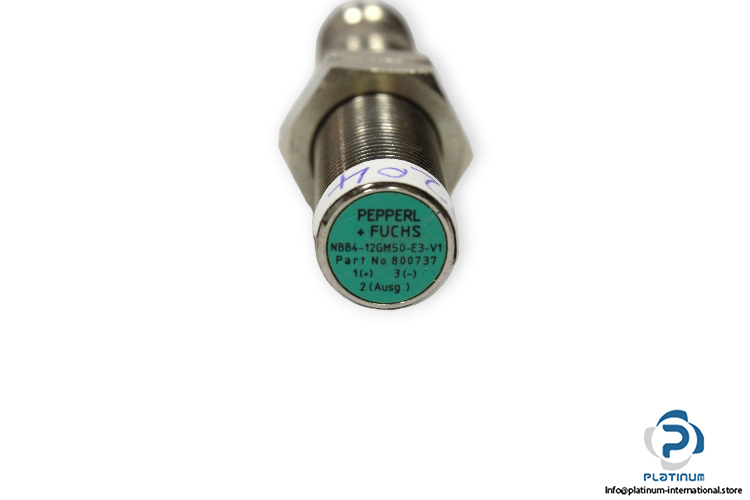

Pepperl+Fuchs NBB4-12GM50-E3-V1 Inductive Sensor
New
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBB4-12GM50-E3-V1
Part No: 800737
Rated Operating Distance: 4 mm
Assured Operating Distance: 0 … 3.24 mm
Operating Voltage: 5 … 36 V DC
Operating Current: 0 … 200 mA
Switching Frequency: 0 … 2550 Hz
Switching Output: Normally closed
Connection Type: Connector plug
Connector type: M12, 3 pins
Diameter, Length: 12, 64.5 mm
Protection Class: II
Degree of protection: IP68
Ambient Operating Temperature: -40 … 85 °C
Housing Material: brass, white bronze coated
Sensing Face Material: PBT, green
Installation: Flush
