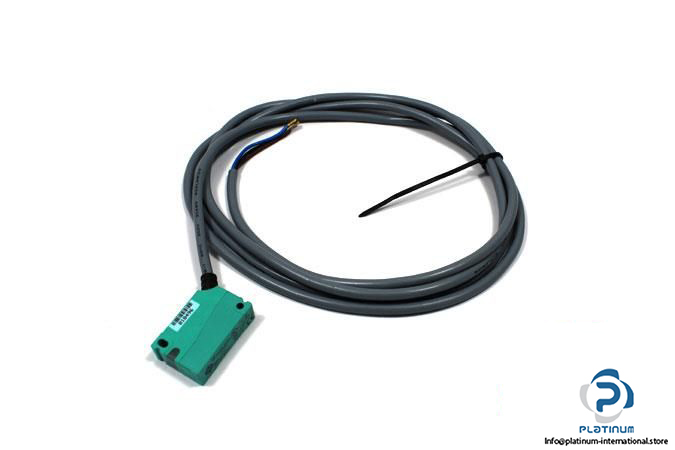

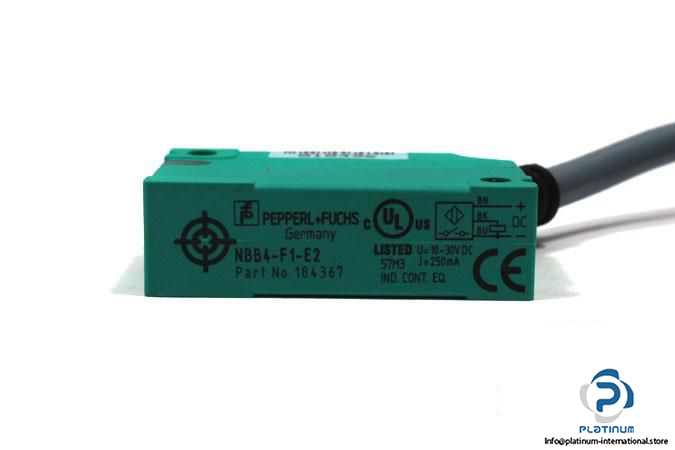

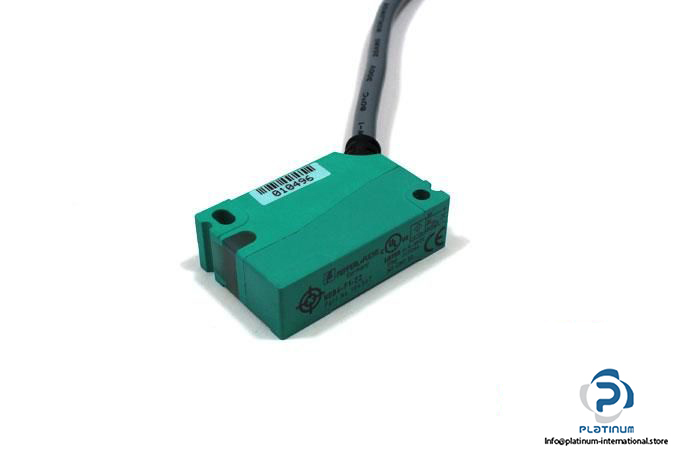

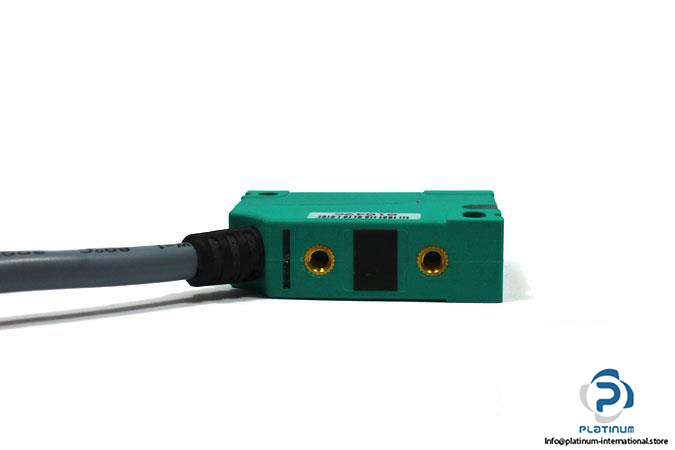

Pepperl+Fuchs NBB4-F1-E2 Inductive Sensor

Manufacturer:  PEPPERL FUCHS

Type:  INDUCTIVE SENSOR

Model No.: NBB4F1E2

Part No.: 184367

Rated Operating Distance: 4 mm

Assured Operating Distance: 0 … 3.24 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 250 mA

Switching Frequency: 0 … 1400 Hz

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions: 25 x 12 x 40 mm

Housing Material: PA

Sensing Face Material: PA

Mounting: Flush-Mountable
