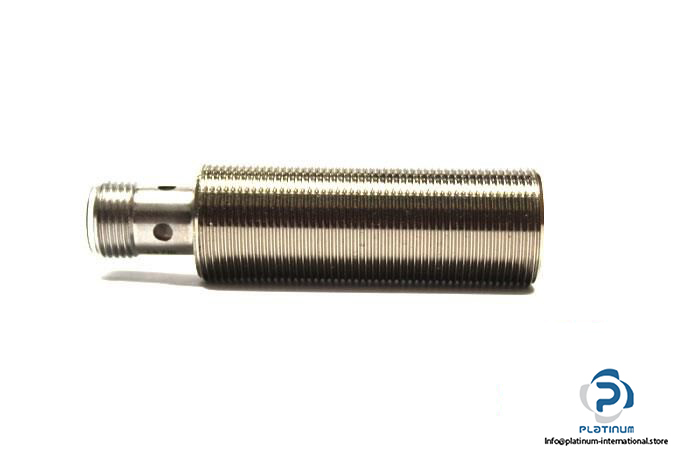

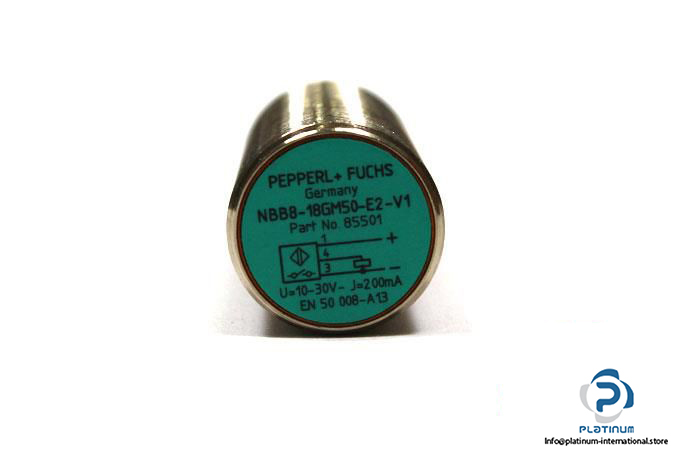

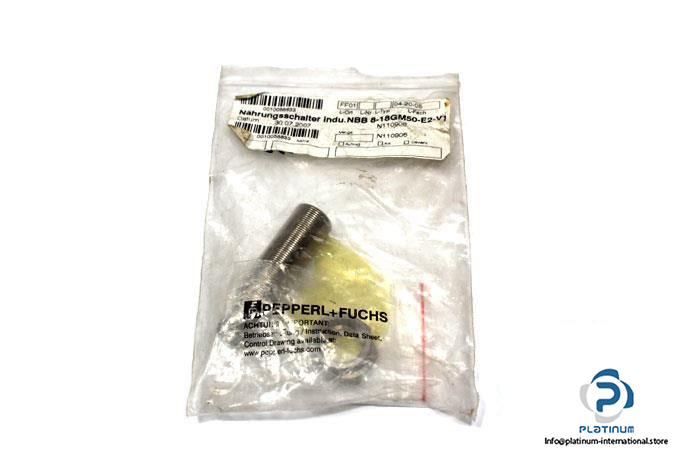

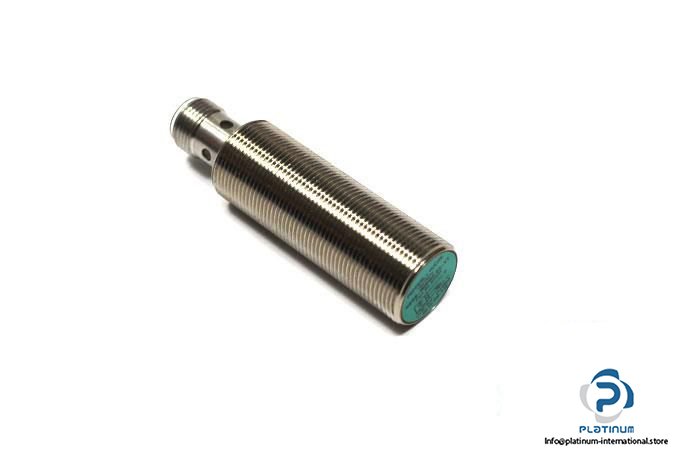

Pepperl+Fuchs NBB8-18GM50-E2-V1 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model No.: NBB818GM50E2V1
Part No.: 85501
Rated operating distance: 8 mm
Assured operating distance: 0 … 6.48 mm
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching frequency: 0 … 500 Hz
Electrical design: PNP
Switching output: Normally open

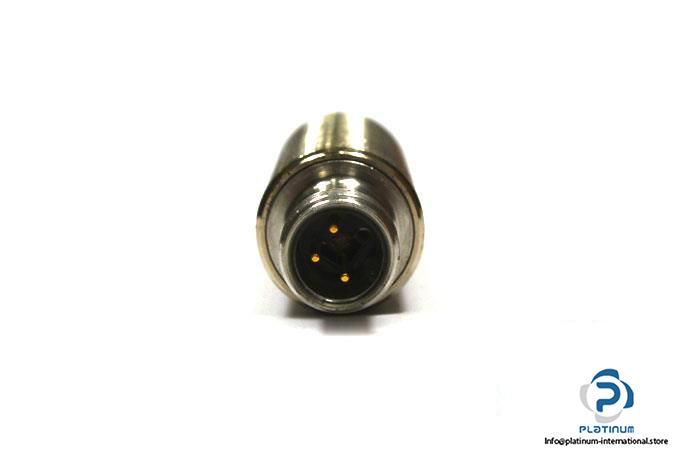

Connector type: M12 Connector, 4-pin
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -40 … 70°C
Diameter, housing length: M18, 50 mm
Housing material: Brass, nickel-plated
Sensing face material: PBT
Mounting: Flush-mountable

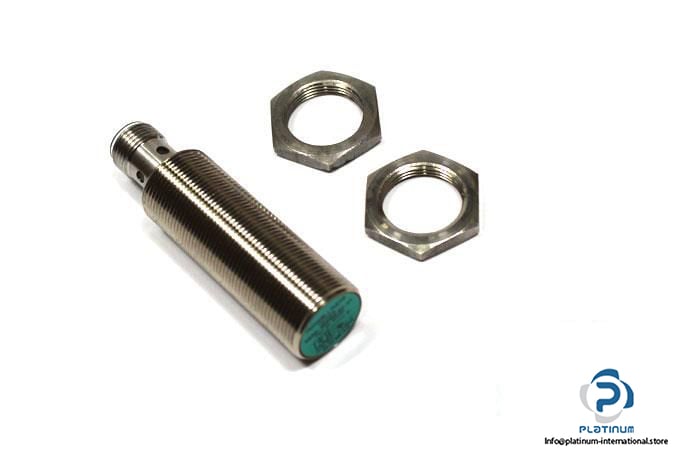

Supplied items: 2 lock nuts
