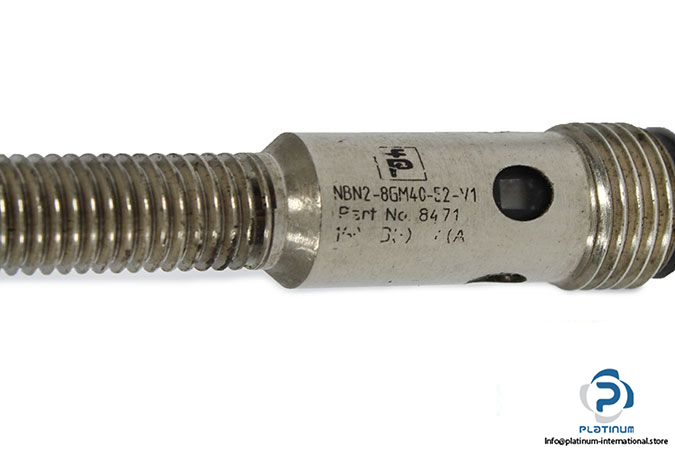

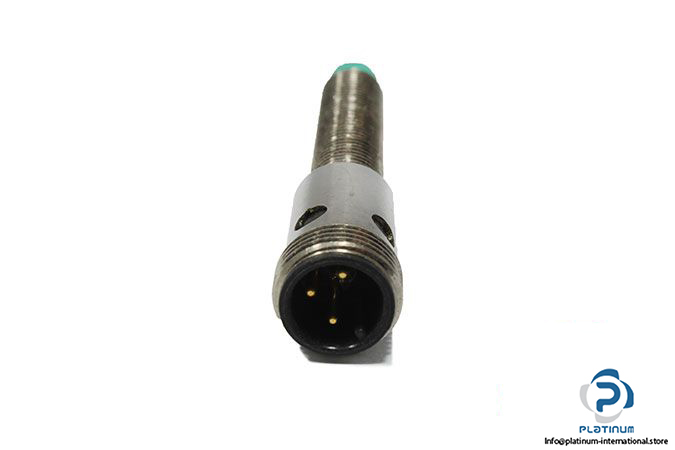

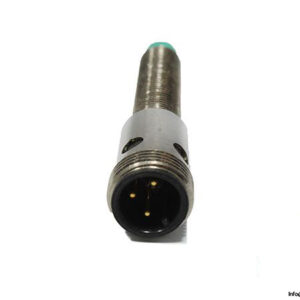

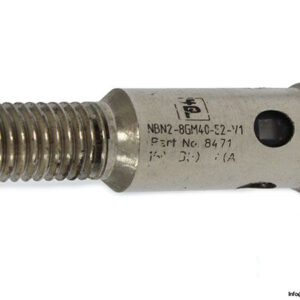

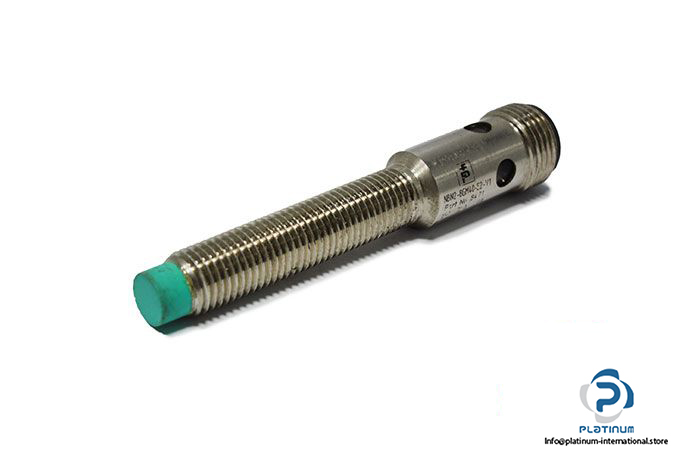

Pepperl+Fuchs NBN2-8GM40-E2-V1 Inductive Sensor

Manufacturer: PEPPERL+FUCHS

Type: Inductive Sensor

Model: NBN2-8GM40-E2-V1

Switching Element Function: PNP Make function

Rated Operating Distance: 2 mm

Installation: not embeddable

Assured Operating Distance:  0 … 1.62 mm

Operating Voltage: 10 … 30 V

Switching Frequency: 0 … 1500 Hz

Reverse Polarity Protection: protected against reverse polarity

Short-Circuit Protection: pulsing

Operating Current: 0 … 100 mA

Indication of the Switching State: Multihole-LED, yellow

Ambient Temperature: -25 … 70 °C

Connection Type: V1-connector

Housing Material: brass, nickel-plated

Sensing Face: PBT

Protection Degree: IP67

Diameter, Length: 12 mm, 65 mm

Weight: 0.01 Kg
