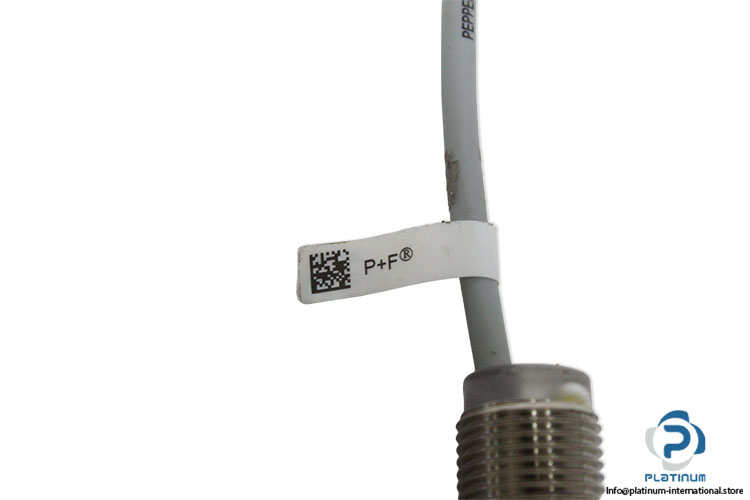

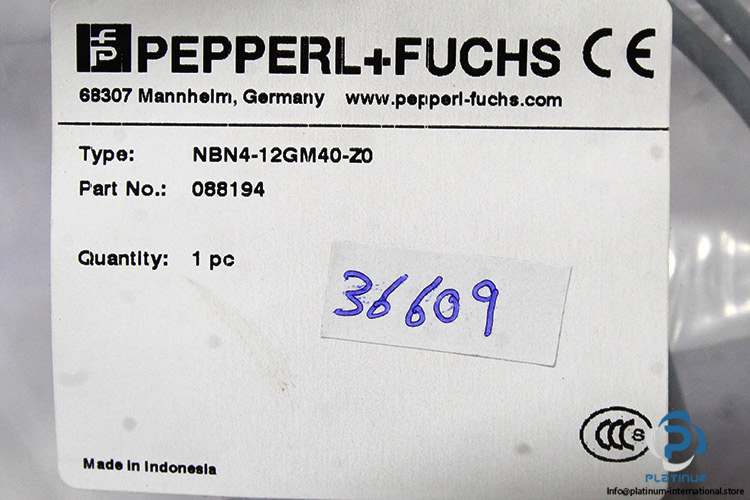

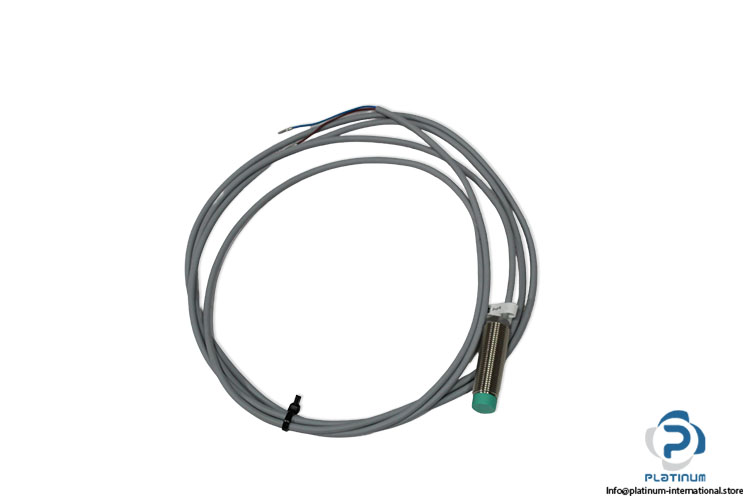

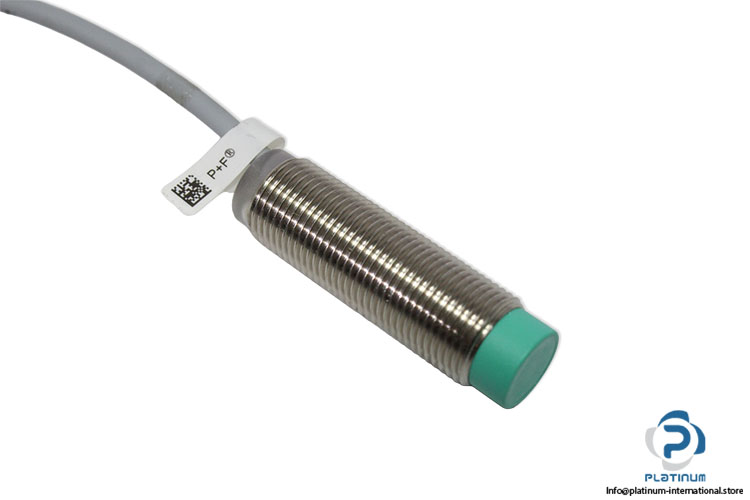

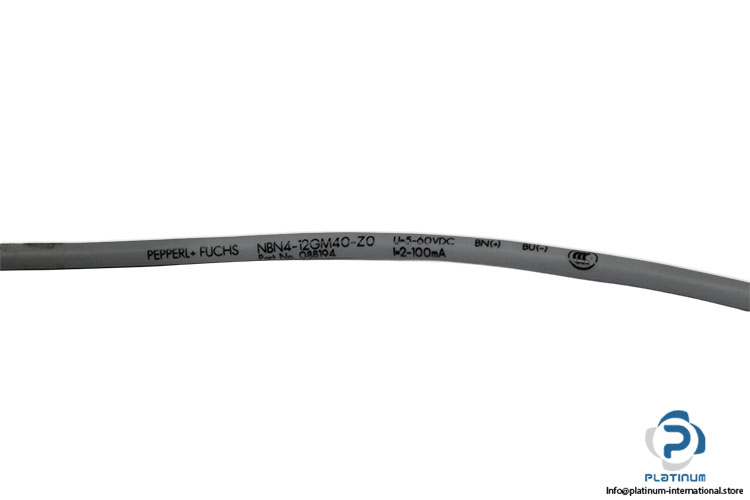

Pepperl+Fuchs NBN4-12GM40-Z0 Inductive Sensor
New
In stock1 unitReady to ship
39,99$
Industrial inductive sensor with a 5 to 60 V operating voltage range, IP67 protection, nickel-plated brass housing, and 2-wire cable connection for reliable object detection in automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 088194 |

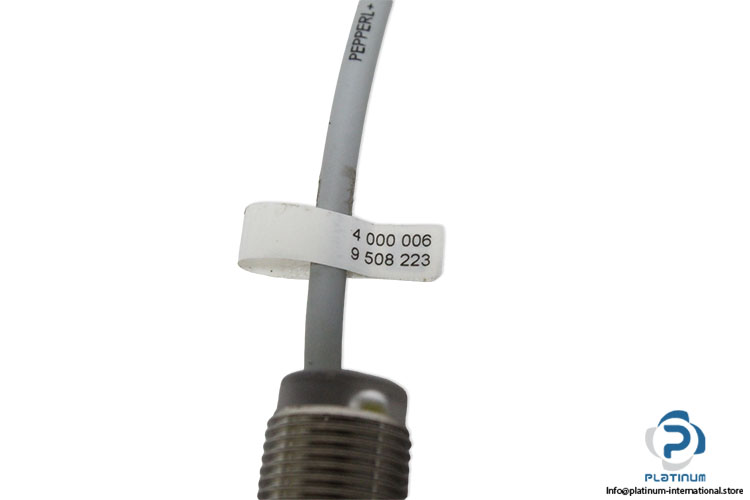

| Ref Code | 4 000 006/9 508 223 |
| Operating voltage UB | 5 ... 60 V |
| Switching frequency f | 0 ... 700 Hz |
| Hysteresis H | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | pulsing |
| Voltage drop Ud | 5 V |
| Operating current IL | 2 ... 100 mA |
| Lowest operating current Im | 2 mA |
| Off-state current | Ir 0 ... 0.5 mA typ. |
| Switching state indicator | all direction LED, yellow |
| Standards | EN IEC 60947-5-2 |
| Ambient temperature | -25 ... 70 °C |

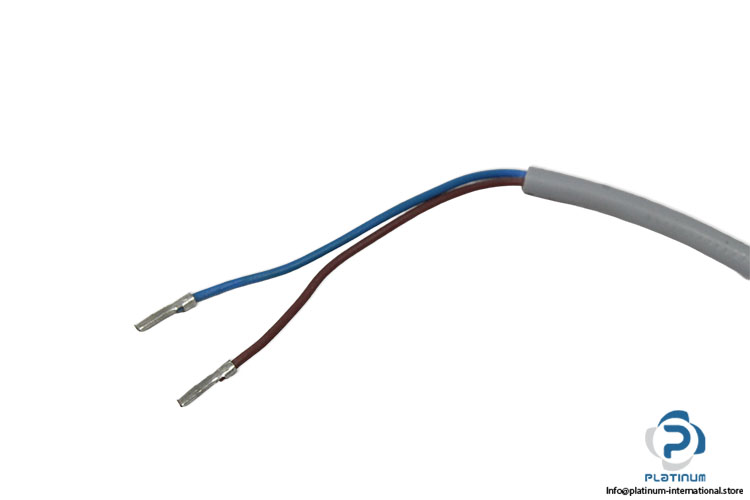

| Connection type | cable,2M,2-Wire |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable diameter | 3 mm ± 0.2 mm |
| Length | 40 mm |
| Diameter | 12 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1099328 |
| Weight | 0,05 |
