Pepperl+Fuchs NCB15+U1+N0 Inductive Sensor
New
In stock5 unitsReady to ship
Inductive Sensor
The Pepperl+Fuchs NCB15+U1+N0 is an explosion-proof inductive sensor with a 15 mm sensing range, NAMUR NC switching, and IP68 protection for harsh industrial environments.15AutomationDetectionExplosionFlushInductiveIndustrialIP68mmmountNamurNCB15+U1+N0Pepperl+FuchsPFProofSensorVariKont
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

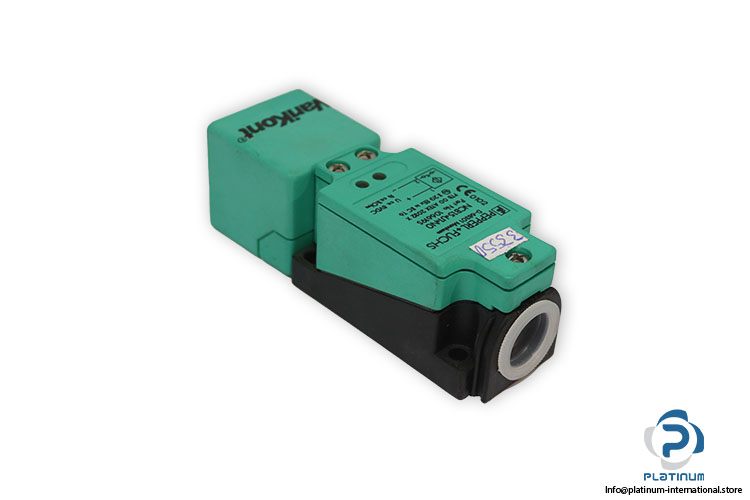

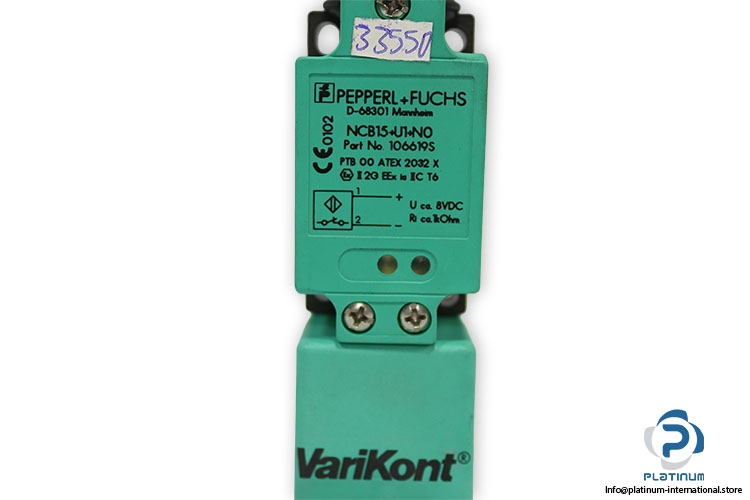

Pepperl+Fuchs NCB15+U1+N0 Inductive Sensor
The Pepperl+Fuchs NCB15+U1+N0 is a high-performance inductive sensor from the VariKont series, designed for demanding industrial detection applications. Offering a long 15 mm sensing range, NAMUR NC switching function, and explosion-proof construction, this sensor ensures reliable operation in hazardous and tough environments. Its rugged PBT housing, IP68 protection, and flush-mount installation make it ideal for machinery, automation systems, and chemical or process industries.
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NCB15+U1+N0
Part No.: 106619S
Series: VariKont
| Switching Element Function | NAMUR, NC |
| Rated Operating Distance (sn) | 15 mm |
| Installation | Flush |
| Output Polarity | NAMUR |
| Assured Operating Distance (sa) | 0 ... 12.15 mm |
| Actual Operating Distance (sr) | 13.5 ... 16.5 mm typ. |
| Nominal Voltage (Uo) | 8 V |
| Switching Frequency (f) | 0 ... 400 Hz |
| Hysteresis (H) | 1 ... 15 %, typ. 5 % |
| Ambient Temperature | ˆ’25 ... +100 °C |
| Connection Type | Terminal Compartment |
| Core Cross-Section | Up to 2.5 mm² |
| Housing Material | PBT |
| Sensing Face | PBT |
| Degree of Protection | IP68 |
| Dimensions | 118 × 40 × 40 mm |
| Explosion Proof | Yes |
