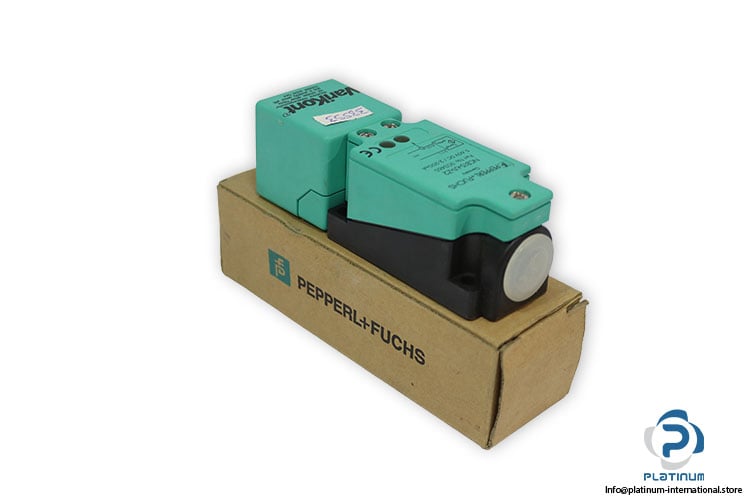

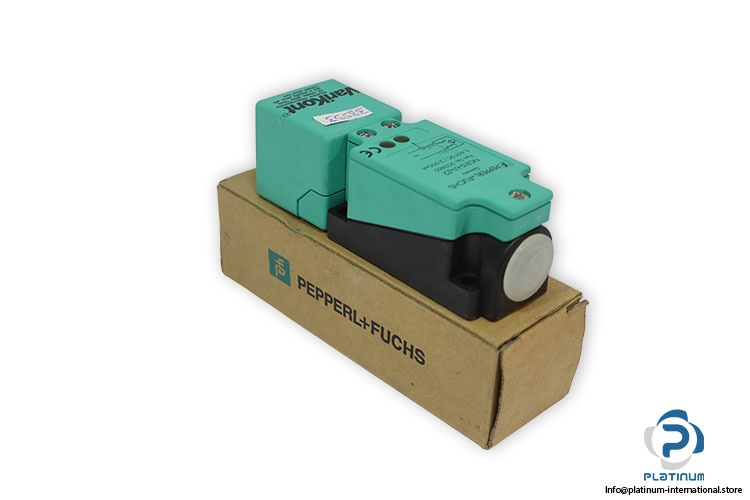

Pepperl+Fuchs NCB15+U1+Z2 Inductive Sensor
New
In stock1 unitReady to ship
Inductive Sensor
A durable and precise two-wire inductive sensor from the VariKont series, offering a 15 mm sensing range, high immunity, and reliable performance for industrial automation applications.30346SAutomationDetectionInductiveIndustrialIP68MetalNCB15+U1+Z2Pepperl+FuchsProximitySensorSeriestwoVariKontwire
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

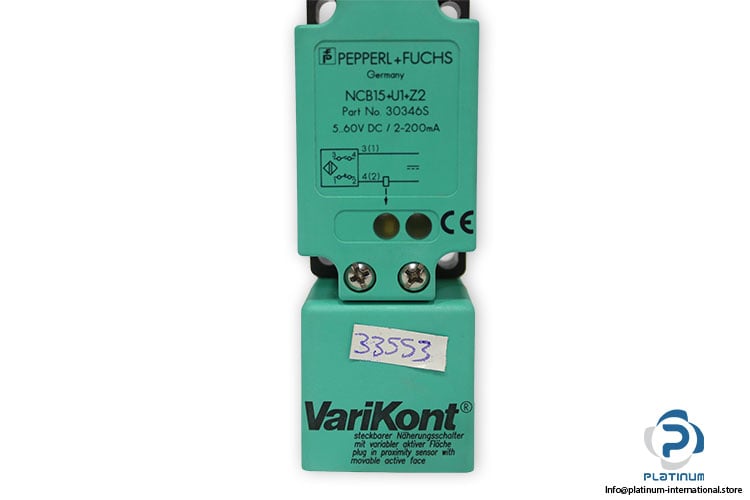

PEPPERL+FUCHS NCB15+U1+Z2 Inductive Sensor
A high-performance inductive sensor designed for precise metal detection, stable switching behavior, and reliable operation in demanding industrial automation environments. Part of the renowned VariKont series, this sensor delivers excellent repeatability and extended sensing distance. Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NCB15+U1+Z2
Part No.: 30346S
| Series | VariKont |
| Switching Function | Normally Open/Closed (NO/NC) |
| Output Type | Two-wire |
| Rated Operating Distance (sn) | 15 mm |
| Installation | Flush |
| Output Polarity | DC |
| Assured Operating Distance (sa) | 0 ... 12.15 mm |
| Actual Operating Distance (sr) | 13.5 ... 16.5 mm, typ. 15 mm |
| Reduction Factor rAl | 0.28 |
| Reduction Factor rCu | 0.25 |
| Reduction Factor r304 | 0.75 |
| Operating Voltage (UB) | 5 ... 60 V |
| Switching Frequency (f) | 0 ... 400 Hz |
| Hysteresis (H) | 1 ... 10 %, typ. 5 % |
| Reverse Polarity Protection | Reverse polarity tolerant |
| Short-Circuit Protection | Pulsing |
| Voltage Drop (Ud) | 5 V |
| Voltage Drop at IL 20 mA | Ud 3.4 ... 5 V, typ. 4.3 V |
| Operating Current (IL) | 2 ... 200 mA |
| Lowest Operating Current (Im) | 2 mA |
| Off-State Current (Ir) | 0 ... 1 mA, typ. 0.7 mA |
| Time Delay Before Availability (tv) | ‰¤ 100 ms |
| Switching State Indicator | LED, Yellow |
| Standards | EN 60947-5-2:2007, IEC 60947-5-2:2007 |
| Ambient Temperature | -25 ... 70 °C |
| Connection Type | Terminal compartment |
| Core Cross-Section | Up to 2.5 mm² |
| Housing Material | PBT |
| Sensing Face | PBT |
| Degree of Protection | IP68 |
| Dimensions | M20 x 118 mm |
