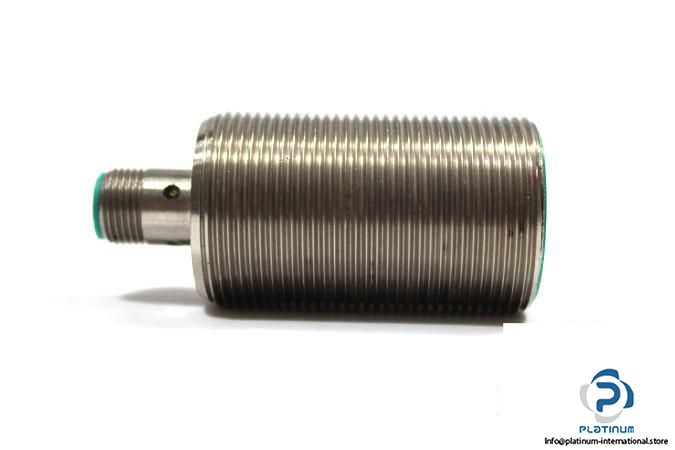

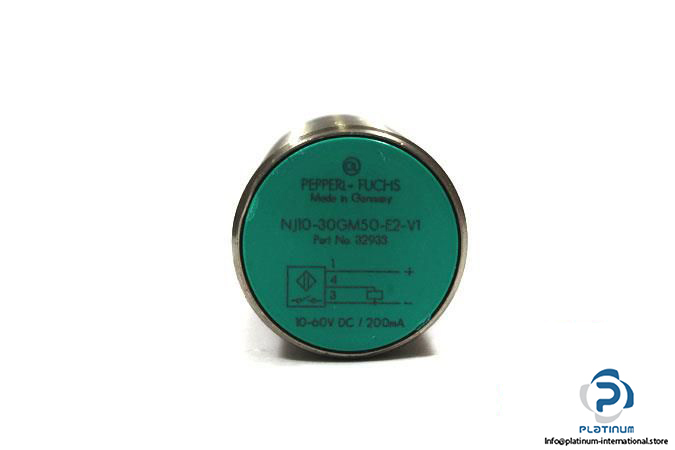

Pepperl+Fuchs NJ10-30GM50-E2-V1 Inductive Sensor

Manufacturer:  PEPPERL FUCHS

Type:  INDUCTIVE SENSOR

Model No.: NJ1030GM50E2V1

Part No.: 32933

Rated operating distance: 10 mm

Assured operating distance: 0 … 8.1 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 650 HZ

Electrical design: PNP

Switching output: Normally open

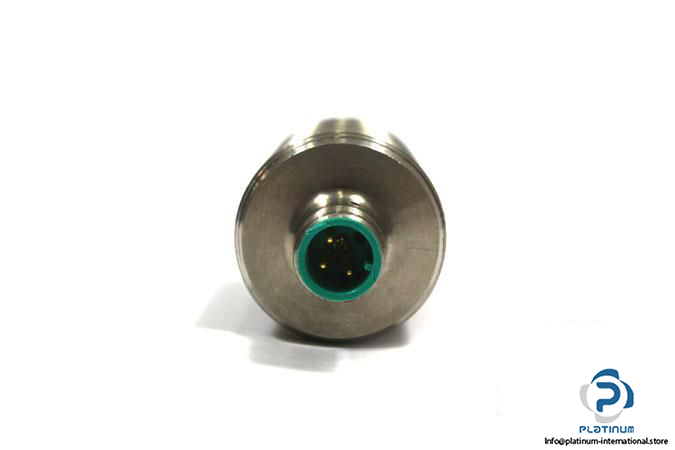

Connector type: M12 Connector, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

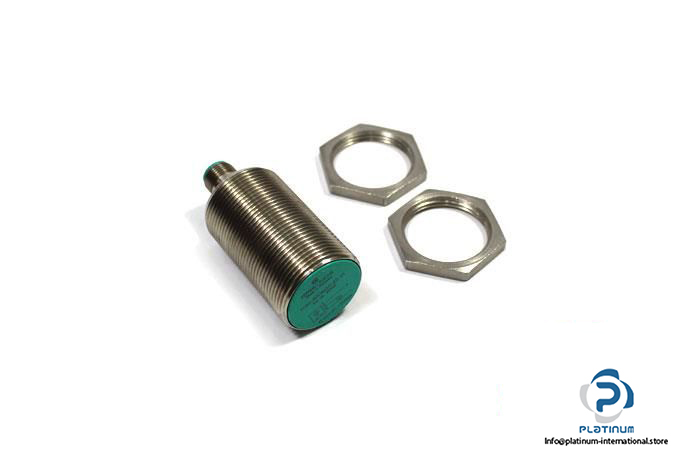

Supplied accessories: 2 lock nuts

Condition: New
