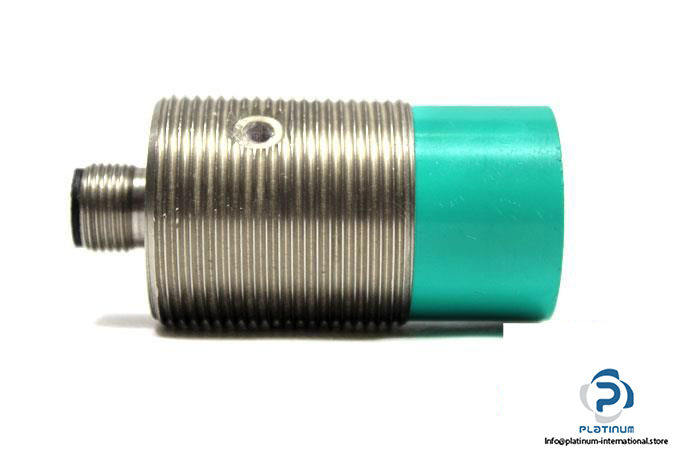

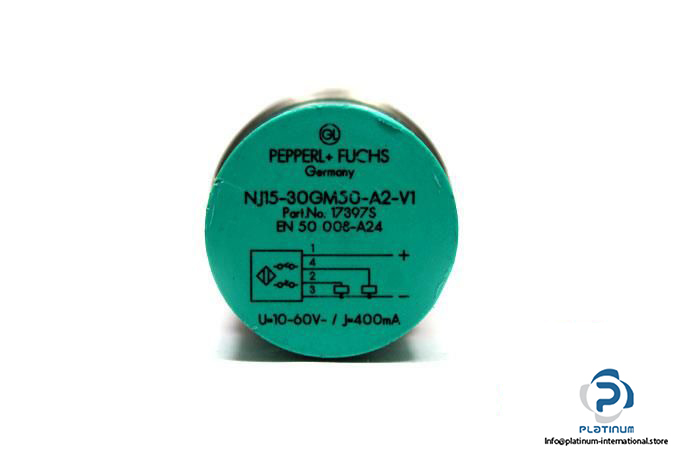

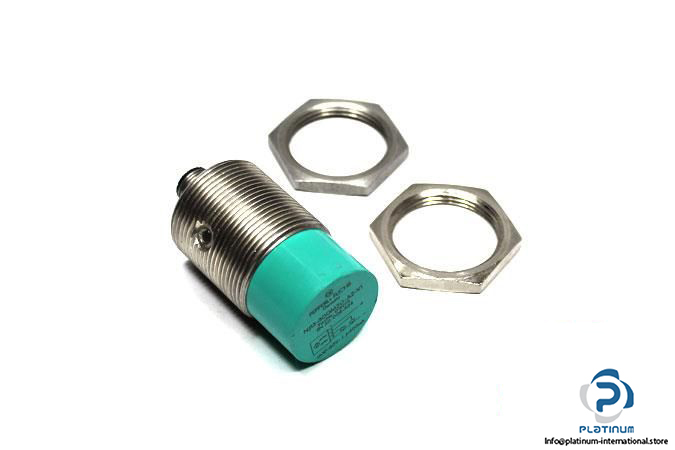

Pepperl+Fuchs NJ15-30GM50-A2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ1530GM50A2V1

Part No.: 17397S

Rated operating distance: 15 mm

Assured operating distance: 0 … 12.15 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 400 mA

Switching frequency: 0 … 300 Hz

Electrical design: PNP

Switching output: Normally open/Normally closed

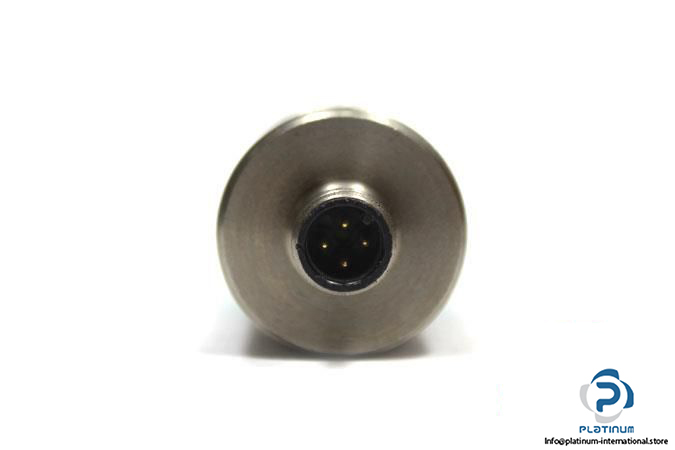

Connector type: M12 Connector,4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 30, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Non-flush mountable
