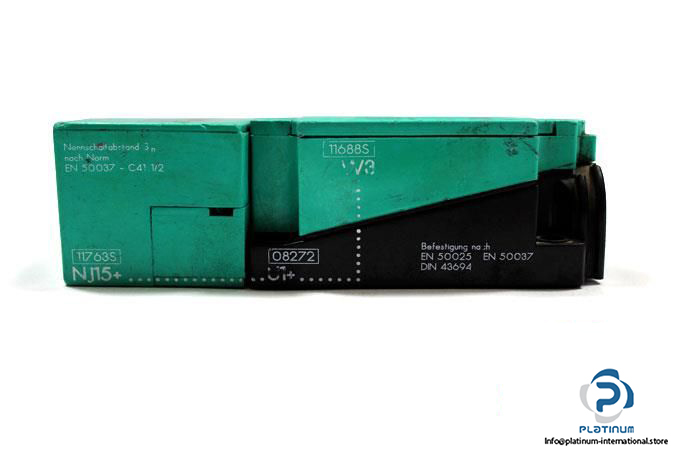

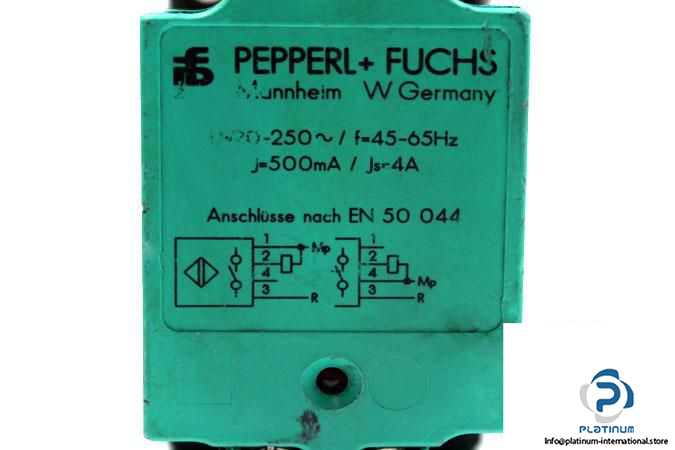

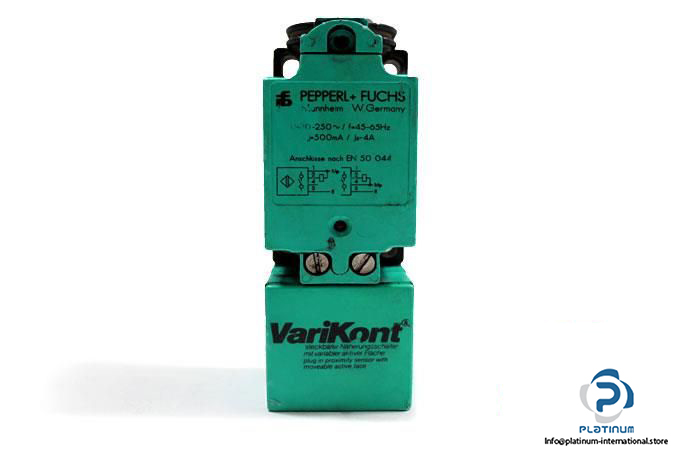

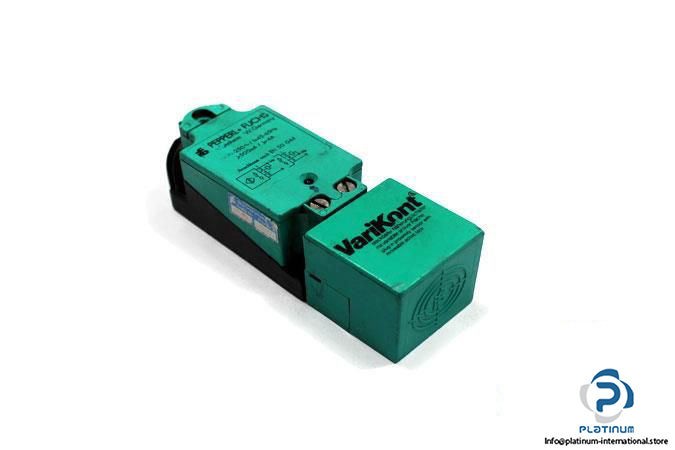

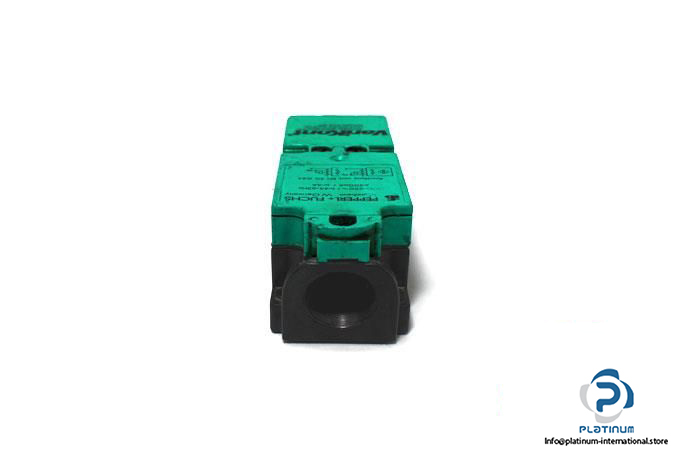

Pepperl+Fuchs NJ15+U1+W3 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model No.: NJ15U1W3

Rated operating distance: 15 mm

Assured operating distance: 0 … 12.5 mm

Operating Voltage: 20 … 250 V AC

Operating Current: 500 mA

Switching frequency: 0 … 25 Hz

Switching output: Normally open / normally closed

Connector type: Terminal compartment

Protection class: II

Enclosure rating: IP68

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing: Rectangular

Housing material: PBT

Sensing face material: PBT

Condition: Used
