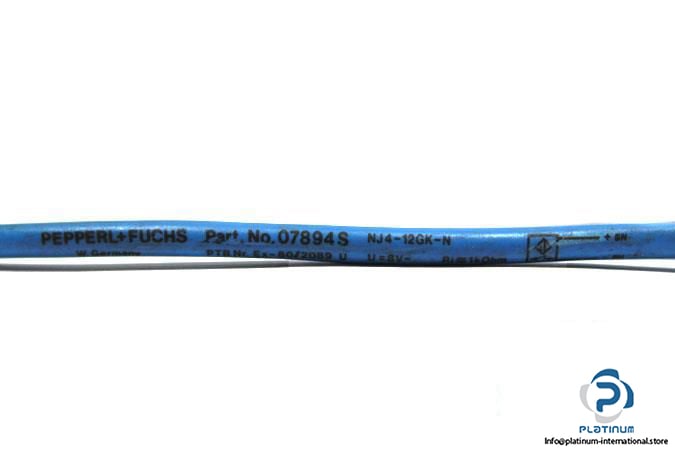

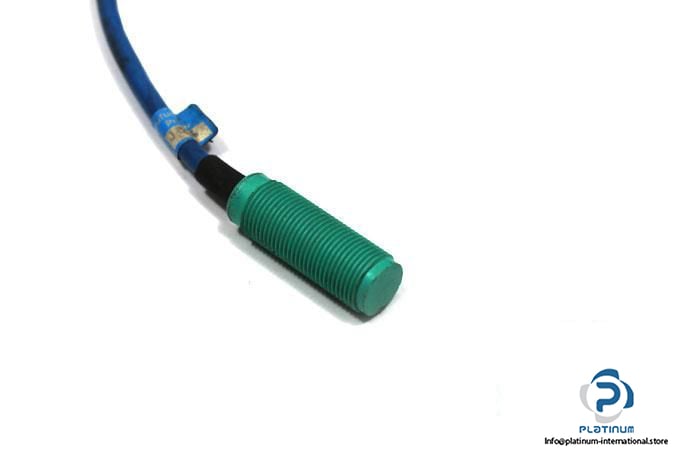

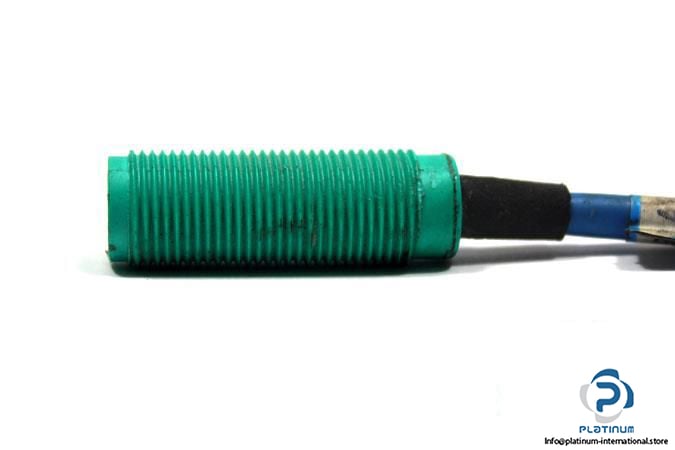

Pepperl+Fuchs NJ4-12GK-N Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ412GKN

Part No.: 07894S

Rated operating distance: 4 mm

Assured operating distance: 0 … 3.24 mm

Operating Voltage: 8 V DC

Current consumption (Measuring plate not detected): ≥ 3 mA

Current consumption (Measuring plate detected): ≤ 1 mA

Switching frequency: 0 … 1500 Hz

Switching output: Normally closed

Output type: NAMUR

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP66/IP68

Ambient Operating temperature: -25 … 100°C

Diameter, Housing length: 12, 35 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable

Condition: New
