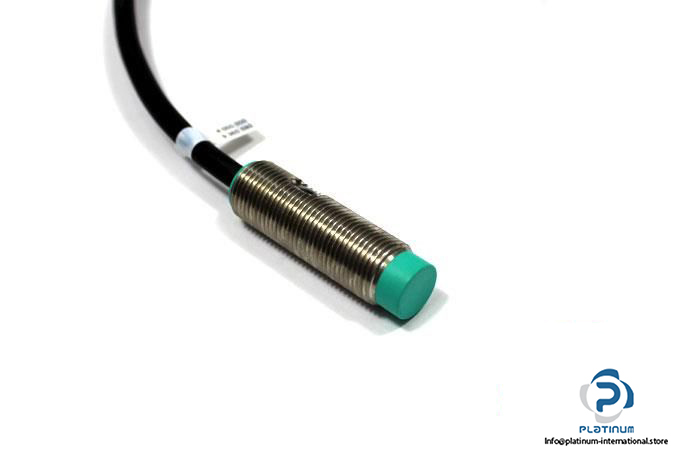

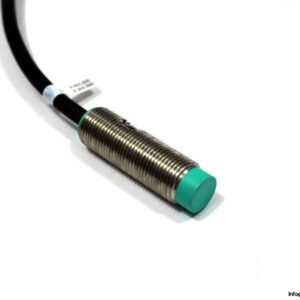

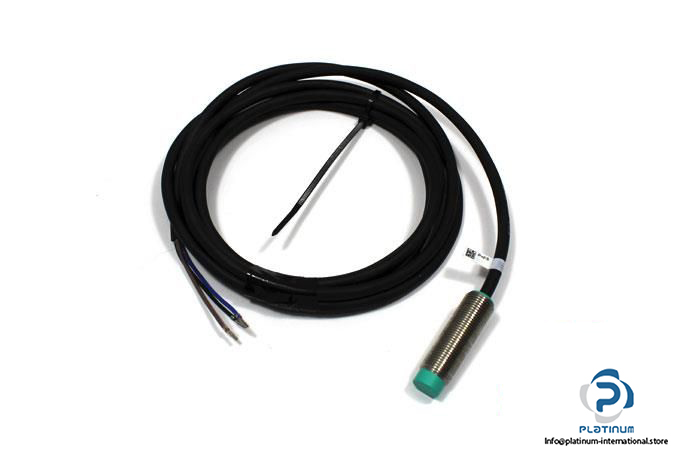

Pepperl+Fuchs NJ4-12GM40-E2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ412GM40E2

Part No.: 086388

Rated operating distance: 4 mm

Assured operating distance: 0 … 3.24 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 0 … 200 mA

Switching frequency: 0 … 2000 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: PUR Cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 12, 40 mm

Housing material: Stainless steel

Sensing face material: Stainless steel

Mounting: Non-flush

Supplied items: 2 lock nuts

Condition: New
