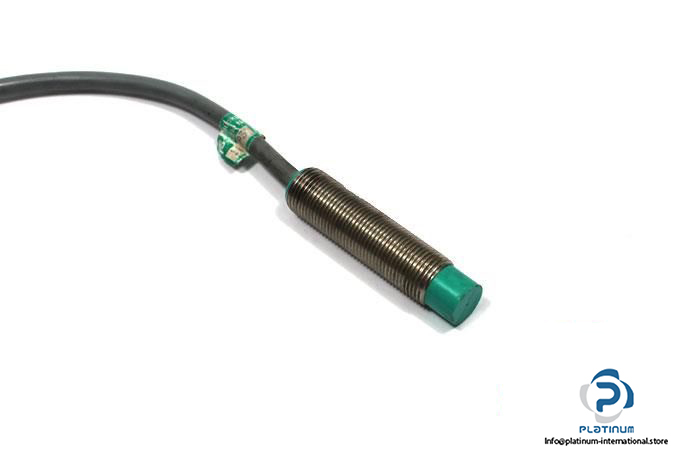

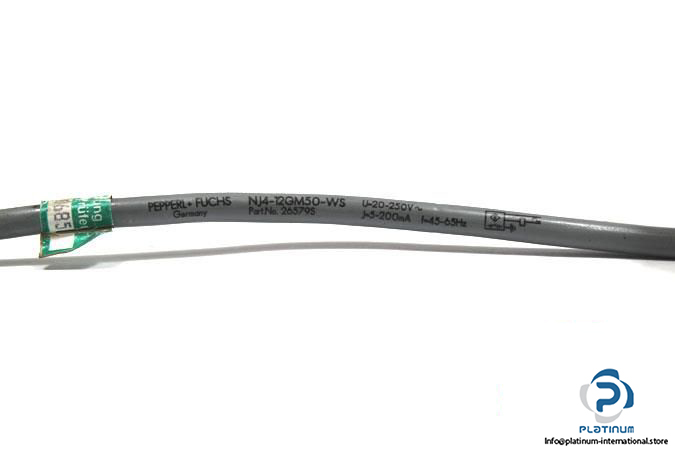

Pepperl+Fuchs NJ4-12GM50-WS Inductive Sensor
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model No.: NJ412GM50WS
Part No.: 26579S
Rated operating distance: 4 mm
Assured operating distance: 0 … 3.24 mm
Time delay before availability: ≤ 30 ms
Operating Voltage: 20 … 250 V AC,45 … 65 Hz
Operating Current: 5 … 200 mA
Switching frequency: 0 … 20 Hz
Switching output: Normally open
Connector type: PVC Cable, 2 m
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C
Diameter, housing length: M12,50 mm
Housing material: Stainless steel
Sensing face material: PBT
Mounting: Non-flush mountable
