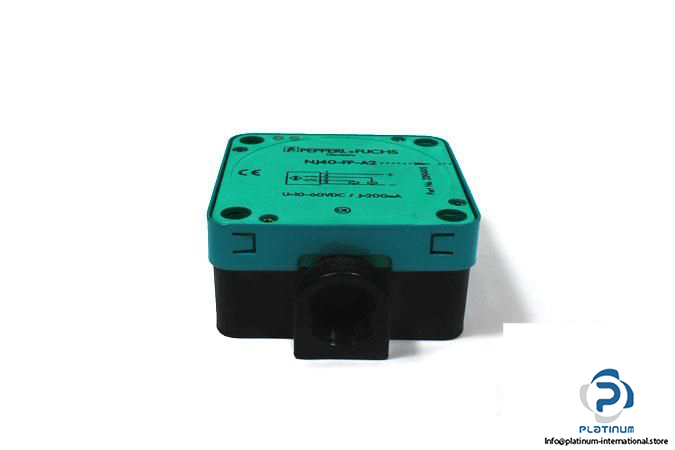

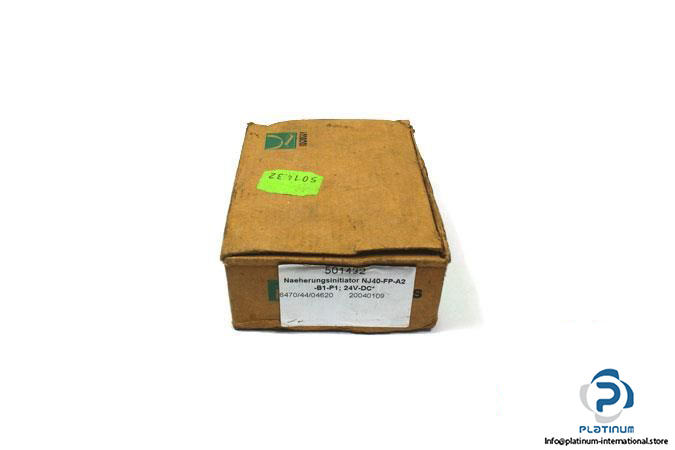

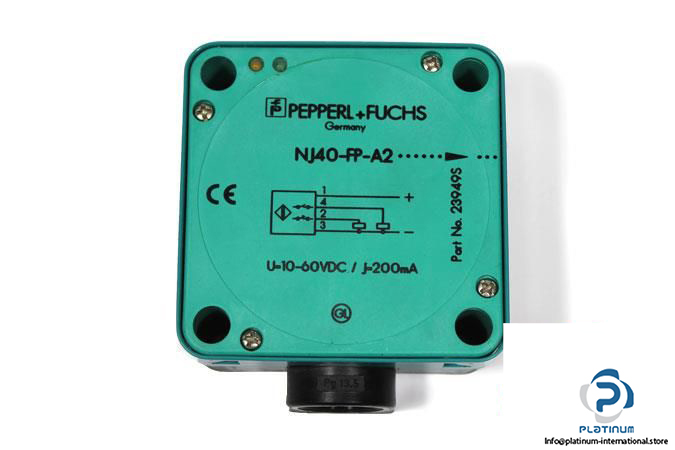

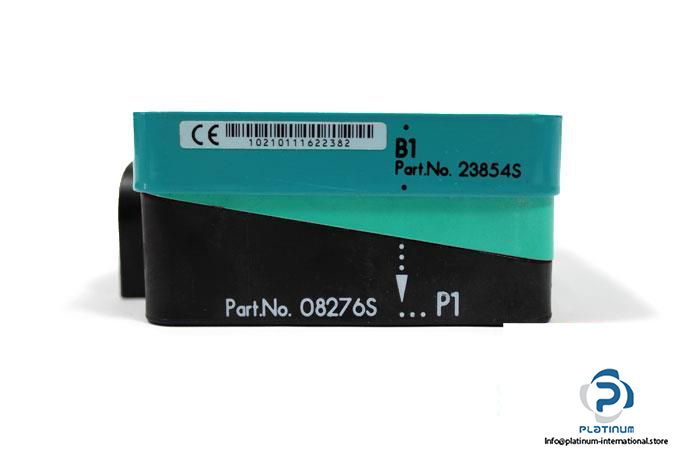

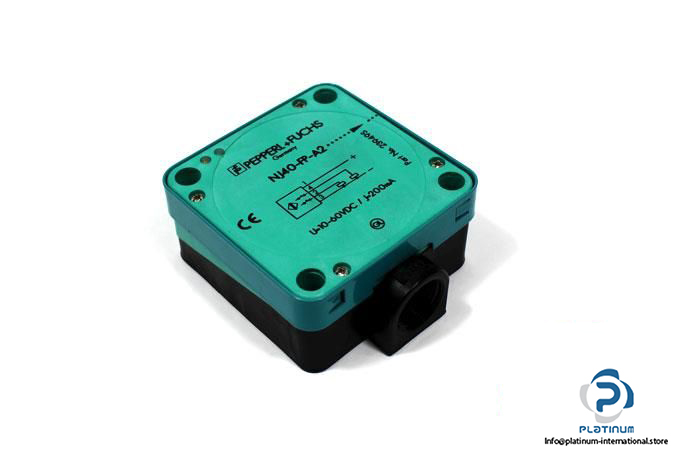

Pepperl+Fuchs NJ40-FP-A2-B1-P1 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model: NJ40FPA2B1P1
Replaced by new model: NCB40-FP-A2-P1
Rated operating distance: 40 mm
Assured operating distance: 0 … 32.4 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 0 … 200 mA
Switching frequency: 0 … 100 Hz
Electrical design: PNP
Switching output: Normally open/Normally closed (complementary)
Connector type: Terminal Compartment
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C
Dimensions: 83 x 40 x 83 mm
Housing material: PBT
Sensing face material: PBT
Mounting: Flush mountable
