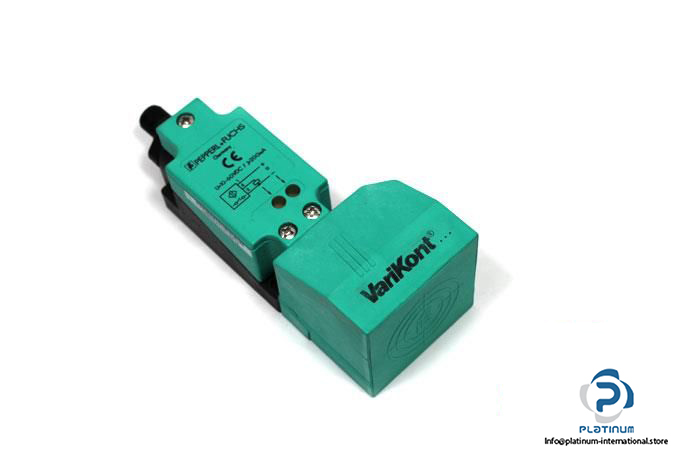

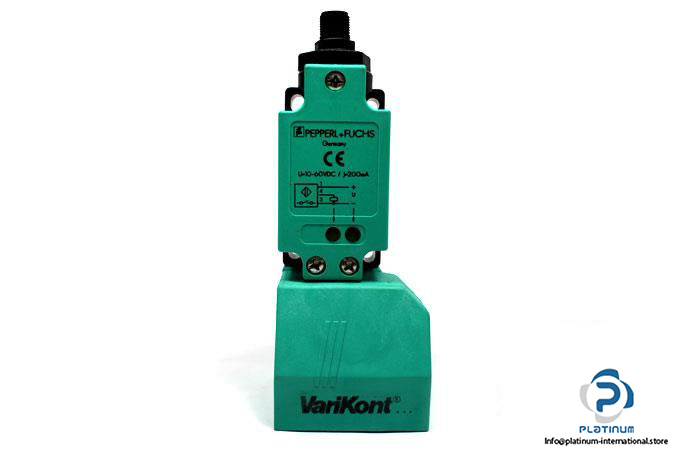

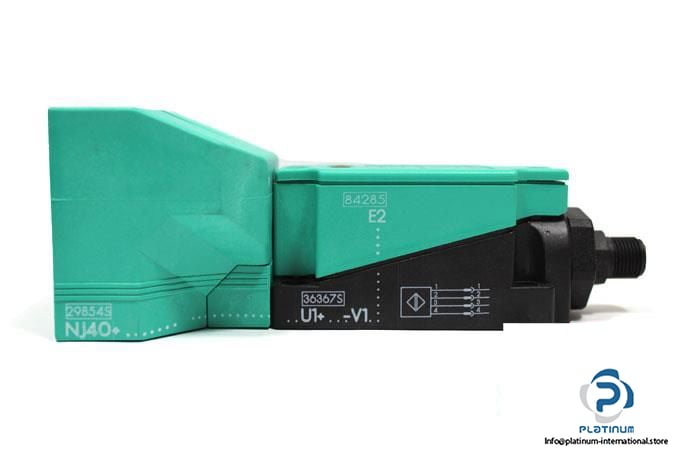

Pepperl+Fuchs NJ40+U1+E2-V1 Inductive Sensor

Manufacturer:  PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ40U1E2V1

Part No.: 089883

Rated operating distance: 40 mm

Assured operating distance: 0 … 32.4 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 100 Hz

Electrical design: PNP

Switching output: Normally open

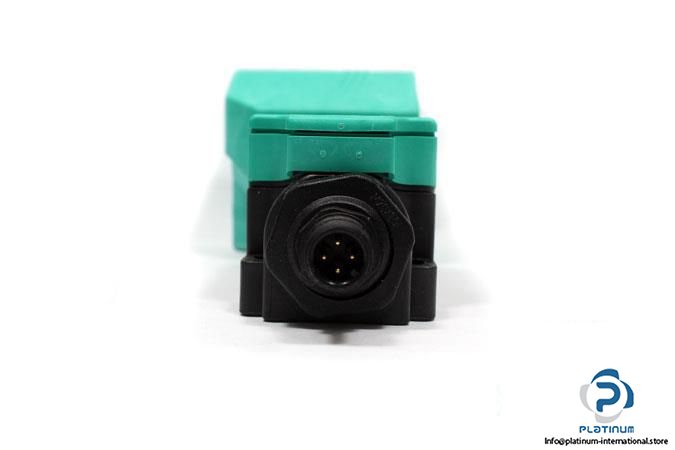

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 55 x 55 x 128 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable
