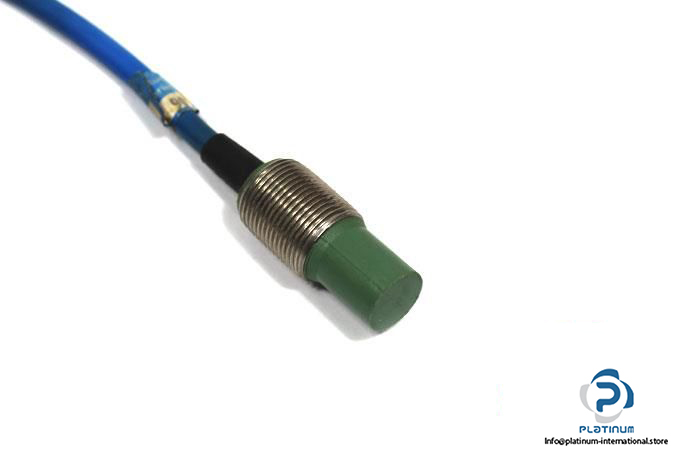

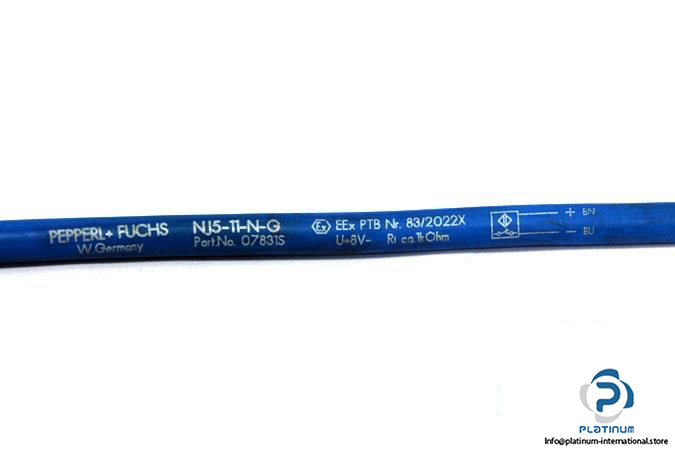

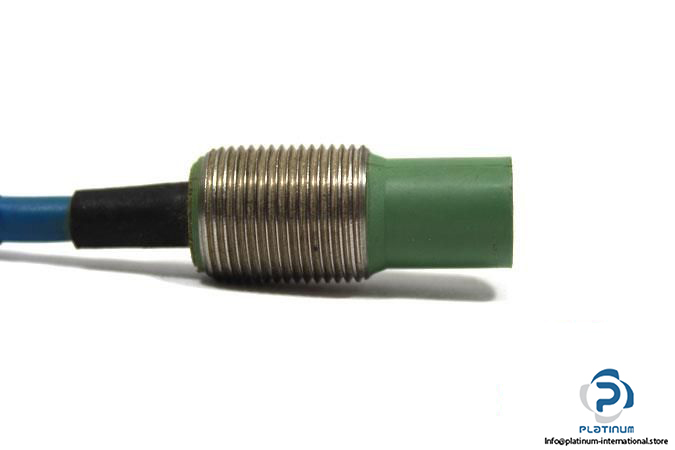

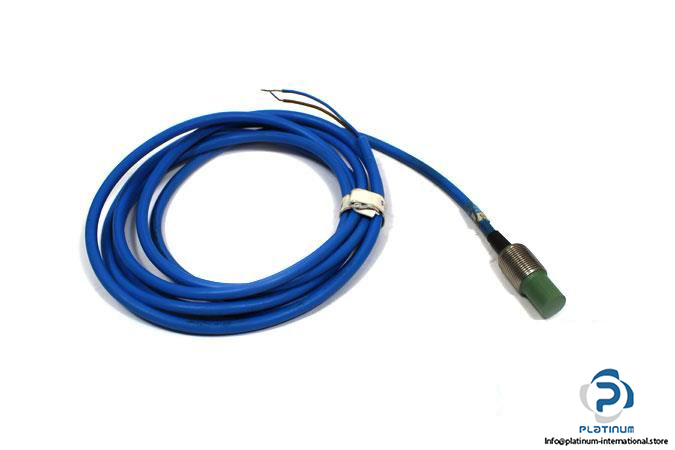

Pepperl Fuchs NJ5-11-N-G Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model: NJ511NG

Part No.: 07831S

Rated Operating Distance: 5 mm

Assured Operating Distance: 0 … 4.05 mm

Operating Voltage: 8 V DC

Current Consumption (Measuring Plate not Detected): ≥ 3 mA

Current Consumption (Measuring Plate Detected): ≤ 1 mA

Switching Frequency: 0 … 3000 Hz

Switching Output: Normally Closed

Output Type: NAMUR

Connector Type: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 100 °C

Diameter, Housing Length: 18, 31 mm

Housing Material: Stainless Steel

Sensing Face Material: PBT

Mounting: Non-Flush Mountable
