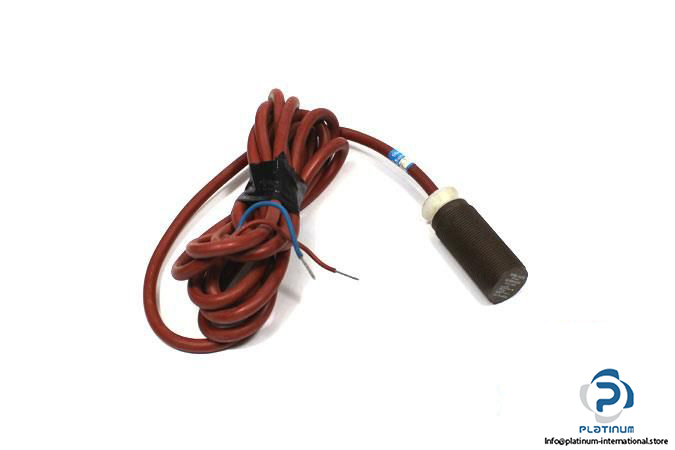

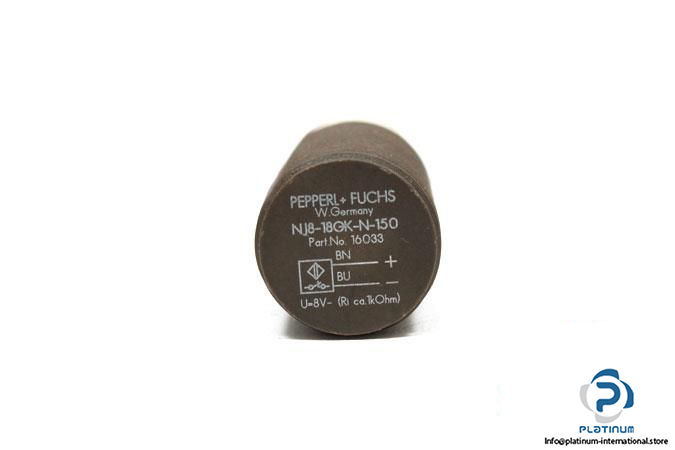

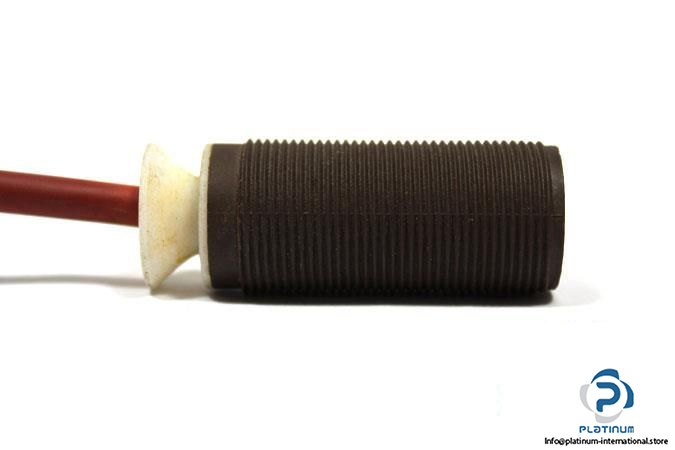

Pepperl+Fuchs NJ8-18GK-N-150 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model: NJ818GKN150
Part No.: 16033
Rated operating distance: 8 mm
Assured operating distance: 0 … 6.48 mm
Operating Voltage: 8 V DC
Current consumption (Measuring plate not detected): ≥ 3 mA
Current consumption (Measuring plate detected): ≤ 1 mA
Switching frequency: 0 … 200 Hz
Switching output: Normally closed
Output type: NAMUR
Connector type: Cable, 2 m
Protection class: II
Enclosure rating: IP65
Ambient Operating temperature: -40 … 150°C
Diameter, housing length: 18, 40 mm
Housing material: PPS
Sensing face material: PPS
Mounting: Non-flush mountable
