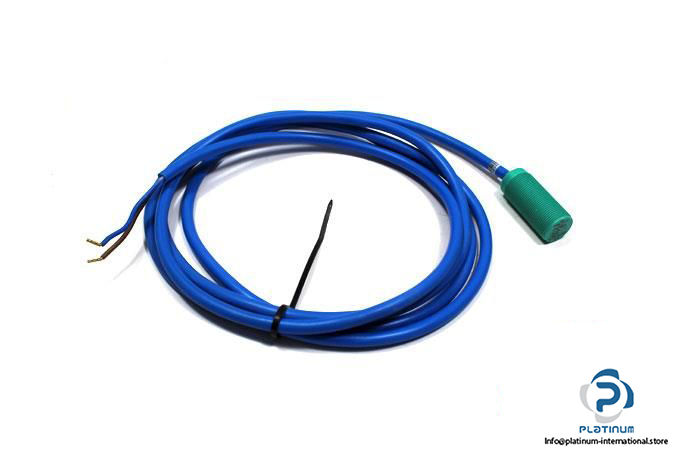

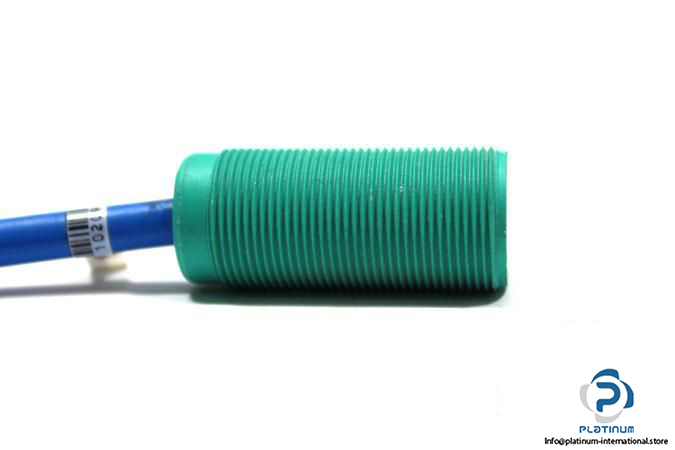

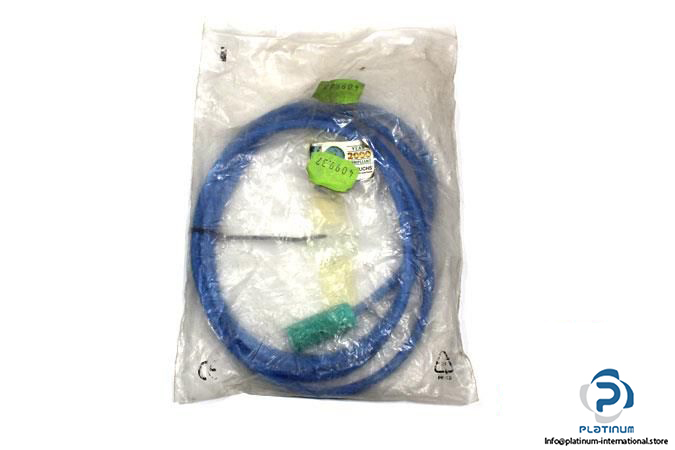

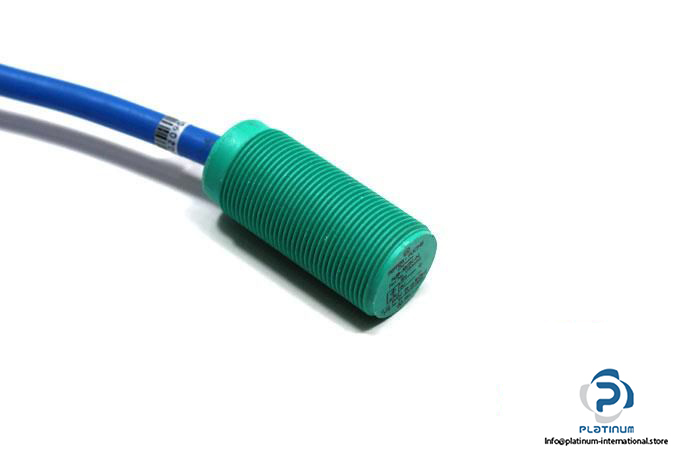

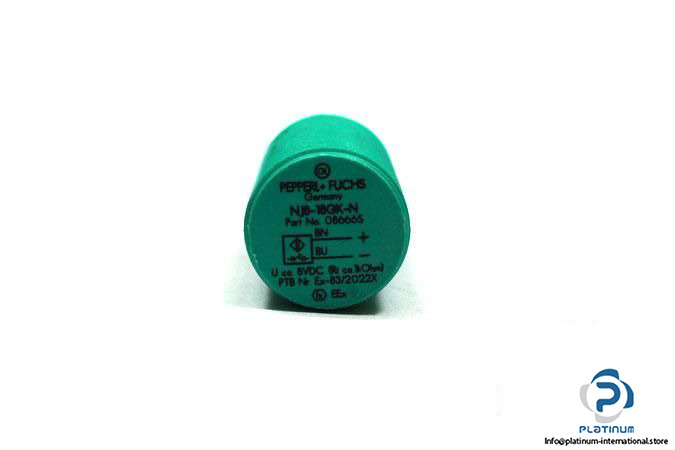

Pepperl+Fuchs NJ8-18GK-N Inductive Sensor

Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model: NJ818GKN
Part No.: 08666S

Rated operating distance: 8 mm
Assured operating distance: 0 … 6.48 mm
Operating Voltage: 8 V DC
Switching frequency: 0 …. 200 Hz
Current consumption (Measuring plate not detected): ≥ 3 mA
Current consumption (Measuring plate detected): ≤ 1 mA
Switching output: Normally closed
Output type: NAMUR
Connector type: PVC Cable, 2 m
Protection class: II
Enclosure rating: IP68
Ambient Operating temperature: -25 … 100°C
Diameter, Housing length: 18, 40 mm
Housing material: PBT/PBS
Sensing face material: PBT
Mounting: Non-flush mountable
