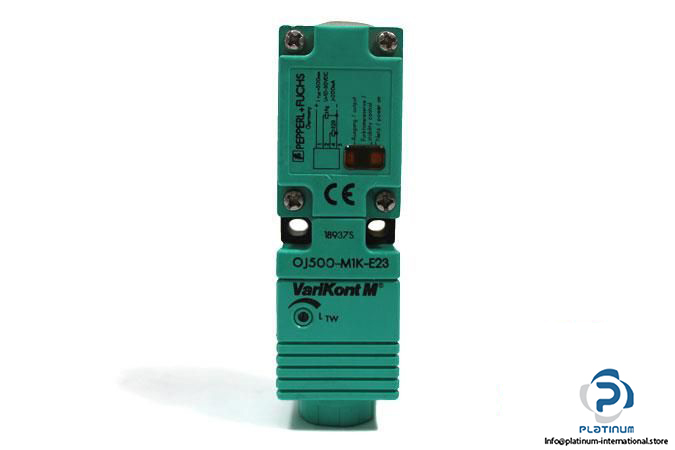

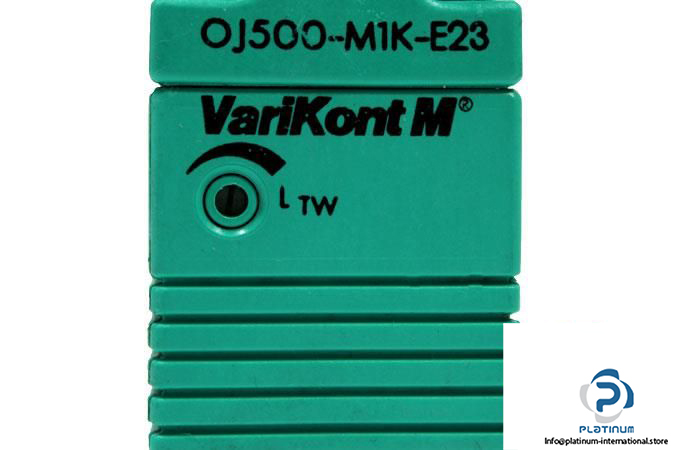

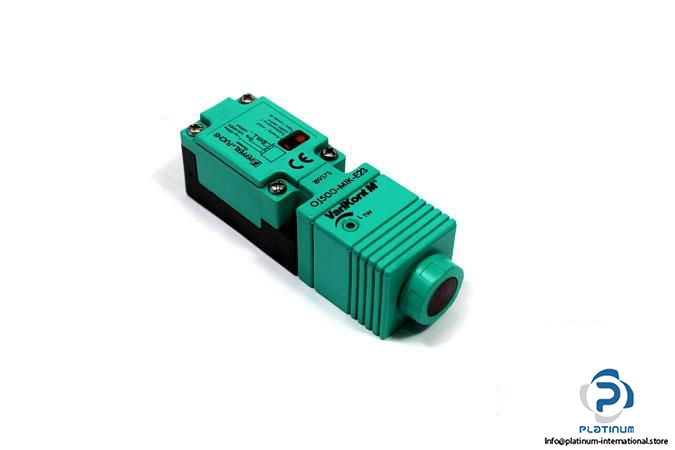

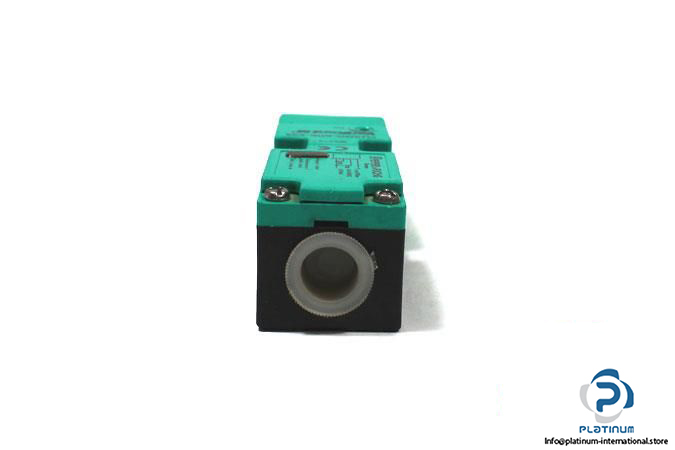

Pepperl+Fuchs OJ500-M1K-E23 Photoelectric Fiber Optic Sensor
Manufacturer: PEPPERL FUCHS
Series: VariKont M
Type: PHOTOELECTRIC FIBER OPTIC SENSOR FOR GLASS FIBER OPTIC
Model: OJ500M1KE23
Part No.: 18937SOperating Range: up to 100 mm
Detection Range: up to 600 mm
Response Time Max.: 0.3 ms
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching Frequency: ≤ 1.5 kHz/ 200 Hz Switchable
Electrical Design: PNP
Switching Output: Light/dark on
Light Type: LED
Type of Light: Modulated Infrared light
Connector Type: M16 terminal compartment
Enclosure Rating: IP67
Ambient Operating Temperature: -25 … 70°C
Dimensions: 30 x 30 x 99 mm
Housing Material: PBT
Optical Face Material: Scratch resistant mineral glass lens
Weight: 0.1 kg
Series: VariKont M
Type: PHOTOELECTRIC FIBER OPTIC SENSOR FOR GLASS FIBER OPTIC
Model: OJ500M1KE23
Part No.: 18937SOperating Range: up to 100 mm
Detection Range: up to 600 mm
Response Time Max.: 0.3 ms
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching Frequency: ≤ 1.5 kHz/ 200 Hz Switchable
Electrical Design: PNP
Switching Output: Light/dark on
Light Type: LED
Type of Light: Modulated Infrared light
Connector Type: M16 terminal compartment
Enclosure Rating: IP67
Ambient Operating Temperature: -25 … 70°C
Dimensions: 30 x 30 x 99 mm
Housing Material: PBT
Optical Face Material: Scratch resistant mineral glass lens
Weight: 0.1 kg
