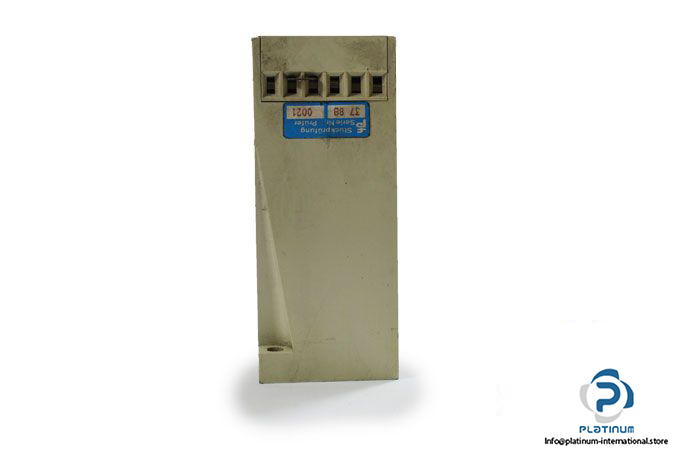

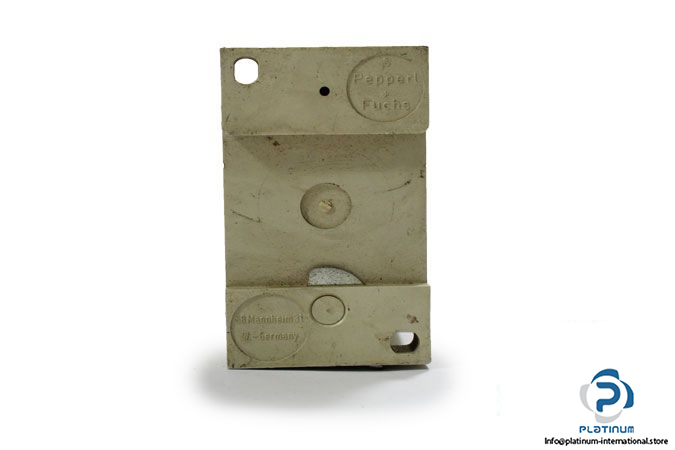

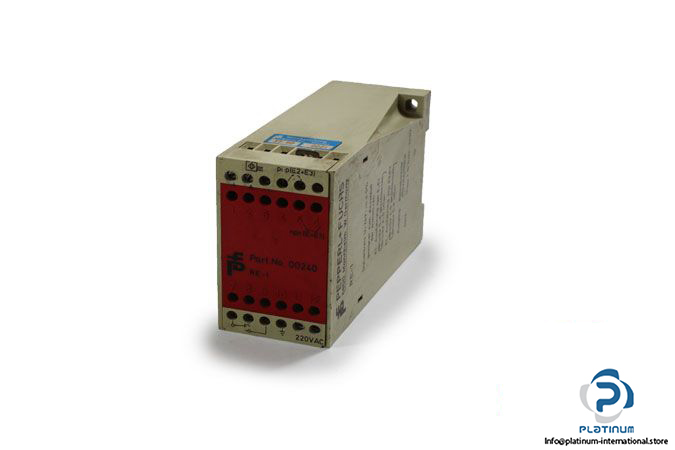

Pepperl+Fuchs RE-1 Isolating Switch Amplifier FOR 3-WIRE Sensors
Used
In stock1 unitReady to ship
55,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: PEPPERL+FUCHS
Type: ISOLATING SWITCH AMPLIFIER FOR 3-WIRE SENSORS
Model: RE-1
Part No.: 00240
Rated Operational Voltage: 198 … 253 VAC
Frequency: 45 … 65 Hz
Power Consumption: max. 3 VA
Input:
Current: low: ≤ 0.5 mA / high: ≤ 33 mA
Voltage: low: 0 … 1 V / high: 18 … 24 V
Output:
Connection: terminals 7, 8, 9
Relay: 1 changeover contact
Energised/De-Energised Delay: approx. 20 ms / approx. 10 ms
Contact Loading: 250 V AC/4 A/500 VA / cos ϕ = 0.7 220 V DC 0.1 A; 60 V / 0.6 A ; 24 V / 4 A
Sensor Supply: 22.5 V at 30 mA / 20.0 V at 50 mA / 18.0 V at 70 mA
Dimensions: 40 X 70 X 110 mm
Ambient Temperature: -25 … 60 °C
Weight: 0.26 Kg
