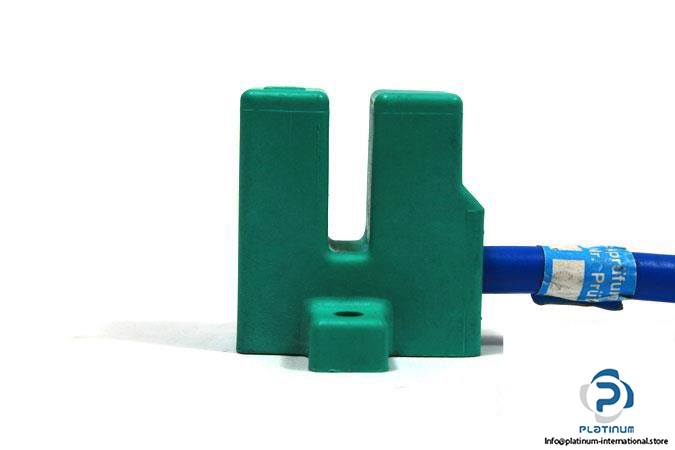

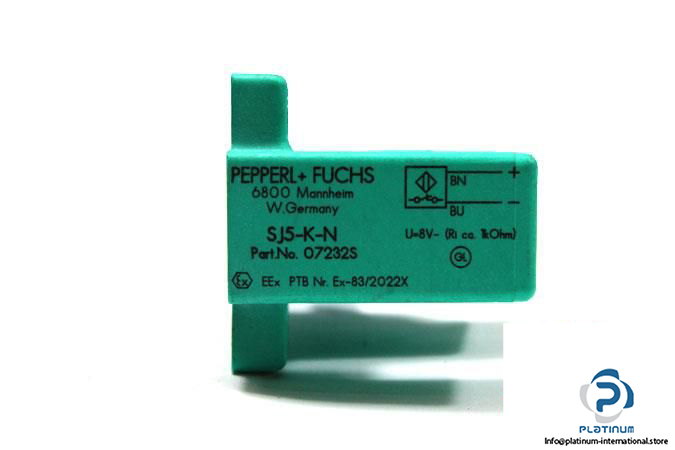

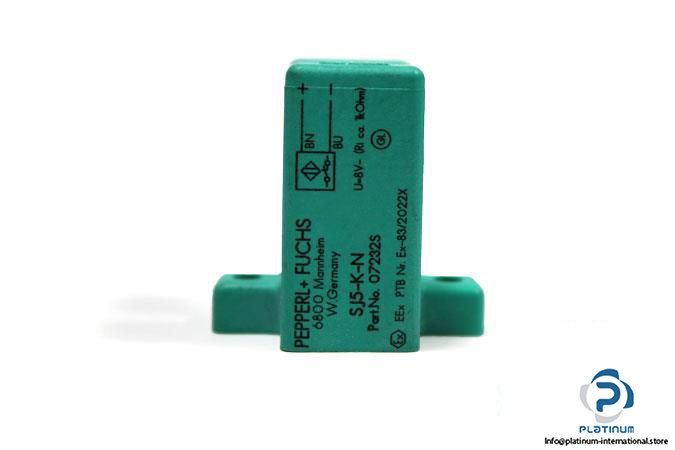

Pepperl+Fuchs SJ5-K-N Inductive Slot Sensor

Manufacturer:  PEPPERL FUCHS

Type: INDUCTIVE SLOT SENSOR

Model No.: SJ5-K-N

Part No.: 07232S

Slot width: 5 mm

Depth of immersion (lateral): 8 … 10 mm, typ. 9 mm

Operating Voltage: 5 … 25 V DC

Nominal voltage: 8 V

Current consumption (Measuring plate not detected): ≥ 3 mA

Current consumption (Measuring plate detected): ≤ 1 mA

Hysteresis: 0.05 … 0.3 mm

Switching frequency: 0 … 2000 Hz

Switching output: Normally closed

Output type: NAMUR

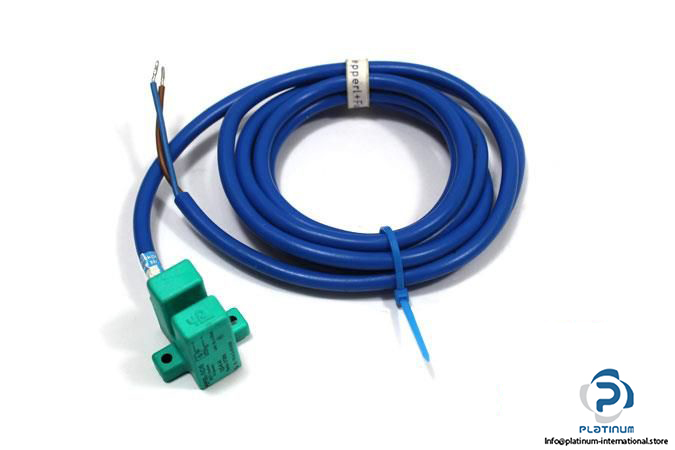

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 100°C

Dimensions: 29 x 15 x 31 mm

Housing material: PBT

Condition: New
