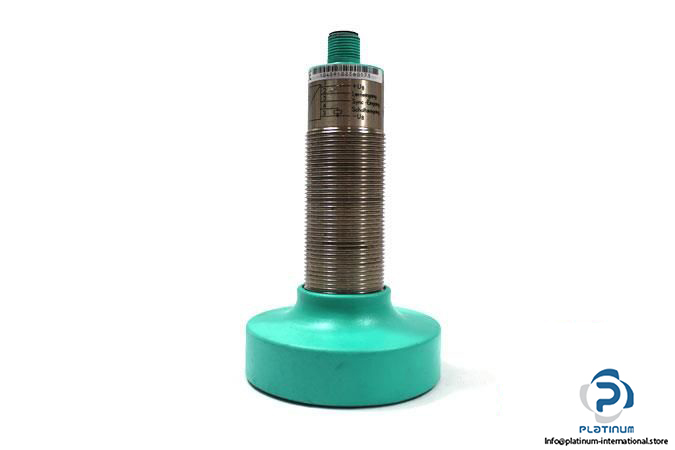

Pepperl+Fuchs UB6000-30 GM-E2-V15 Ultrasonic Sensor

Name: PEPPERL+FUCHS UB6000-30 GM-E2-V15 ULTRASONIC SENSOR
SKU: 965846
Availability: LimitedAvailability


pepperlfuchs-ub6000-30-gm-e2-v15-ultrasonic-sensor3_675x450

pepperlfuchs-ub6000-30-gm-e2-v15-ultrasonic-sensor4_675x450

pepperlfuchs-ub6000-30-gm-e2-v15-ultrasonic-sensor5_675x450

pepperlfuchs-ub6000-30-gm-e2-v15-ultrasonic-sensor6_675x450





Used

Available on request

SKU

965846

Category

Sensors

Condition

Used

6 Fuchs M NC NO Pepperl PNP Sensor Ultrasonic

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

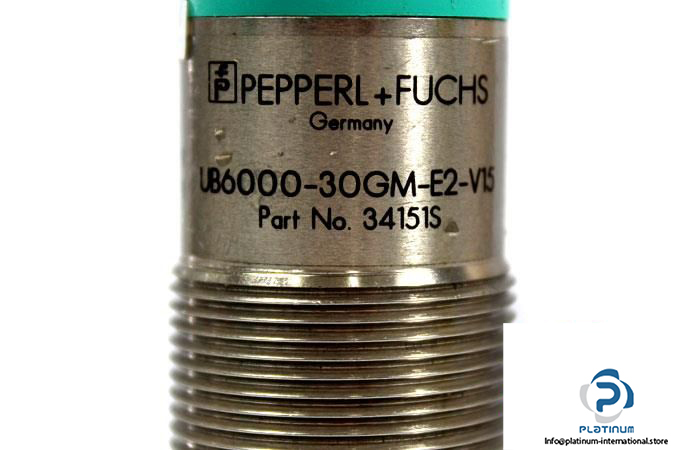

Manufacturer: PEPPERL FUCHS

Type: ULTRASONIC SENSOR

Model: UB600030GME2V15

Part No.: 34151S

Sensing Range: 350 … 6000 mm

Adjustment Range: 400 … 6000 mm

Dead Band: 0 … 350 mm

Standard Target Plate: 100 x 100 mm

Response Delay: Approx. 650 ms

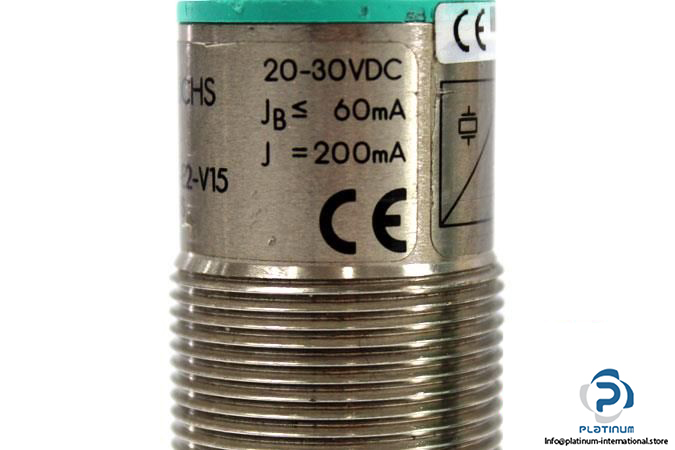

Operating Voltage: 20 … 30 V DC

Operating Current: 200 mA

No Load Supply Current: ≤ 60 mA

Transducer Frequency: approx. 65 kHz

Switching Frequency: ≤ 0.8 Hz

Electrical Design: PNP

Switching Output: Normally Open and Normally Closed (programmable)

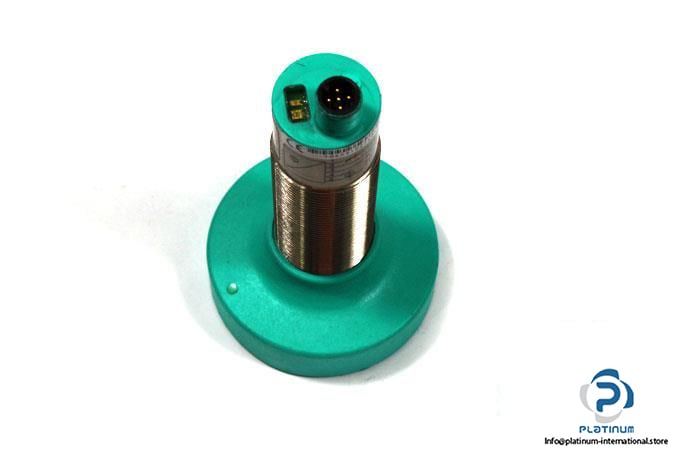

Connector Type: M12 Connector, 5-Pin

Protection Class: II

Enclosure Rating: IP65

Ambient Operating Temperature: -25 …70°C

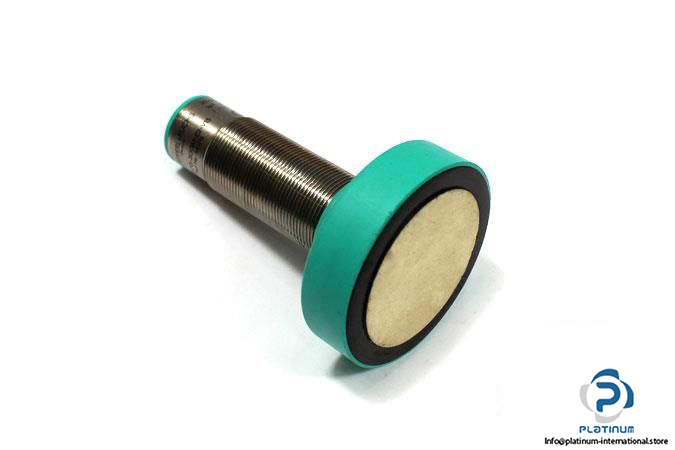

Sensing Face Diameter: 73 mm

Housing Length: 113 mm

Housing Material: Nickel plated brass; plastic components: PBT

Sensing Face Material: Epoxy resin/hollow glass sphere mixture; polyurethane foam

Weight: 250 g
