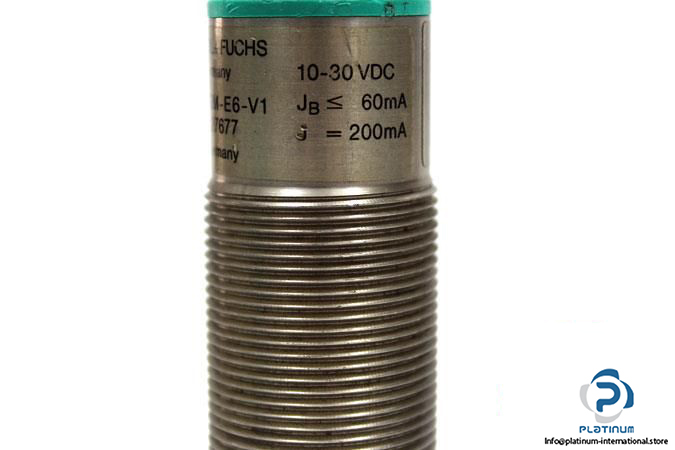

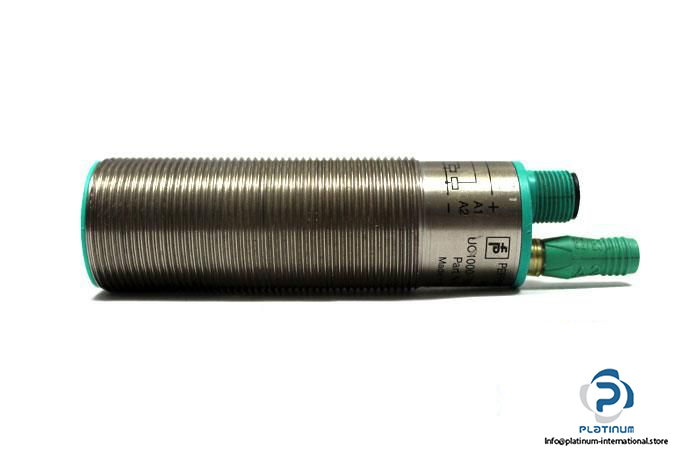

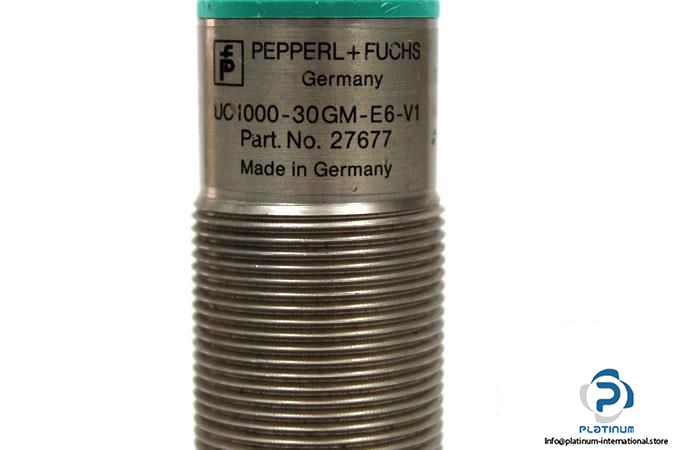

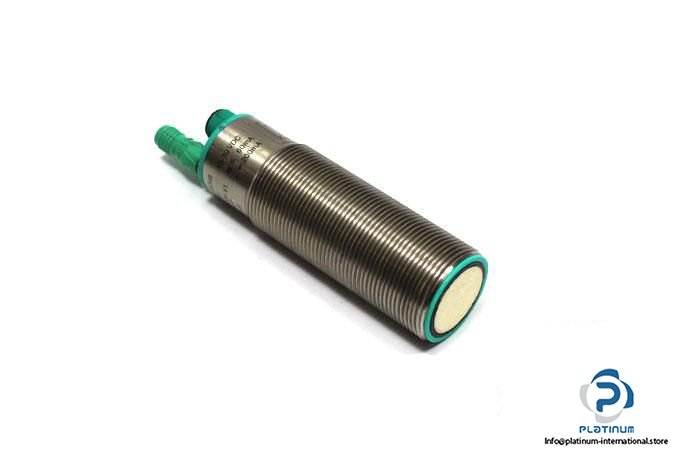

Pepperl+Fuchs UC1000-30GM-E6-V1 Ultrasonic Sensor

Manufacturer: PEPPERL FUCHS

Type: ULTRASONIC SENSOR

Model: UC100030GME6V1

Part No.: 27677

Sensing Range: 200 … 1000 mm

Unusable Area: 0 … 200 mm

Standard Target Plate: 100 x 100 mm

Response Delay: ≤ 100 ms

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Transducer Frequency: approx. 175 kHz

Switching Frequency: ≥ 5 Hz

Electrical Design: PNP

Switching Output: Normally Open/Normally Closed

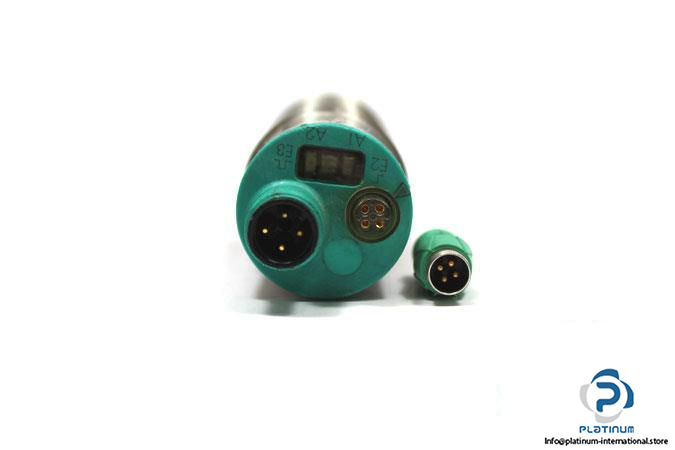

Connector Type: M12 Connector, 4-pin

Protection Class: II

Enclosure Rating: IP65

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 30, 94 mm

Housing Material: High Grade Stainless Steel

Sensing Face Material: Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT

Additional Features: Temperature probe coded plug

Weight: 140 g
