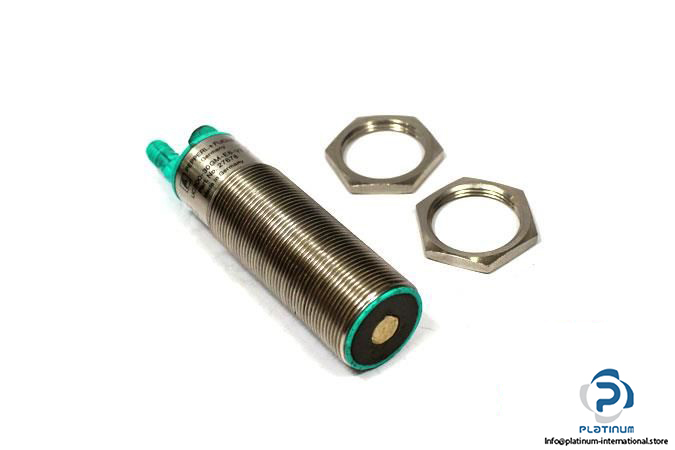

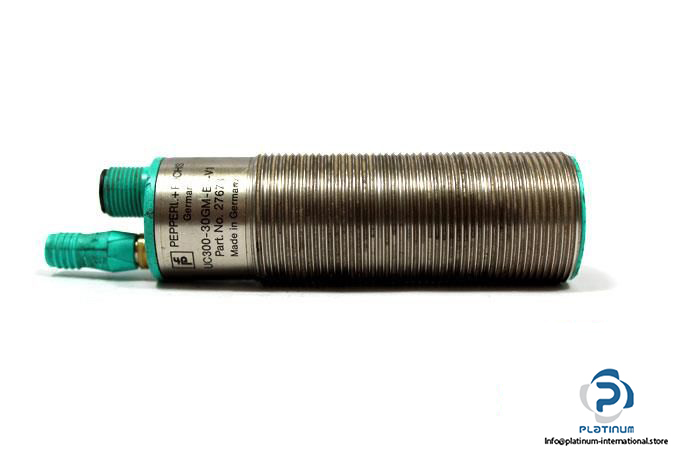

Pepperl+Fuchs UC300-30GM-E6-V1 Ultrasonic Sensor

Manufacturer: PEPPERL FUCHS

Type: ULTRASONIC SENSOR

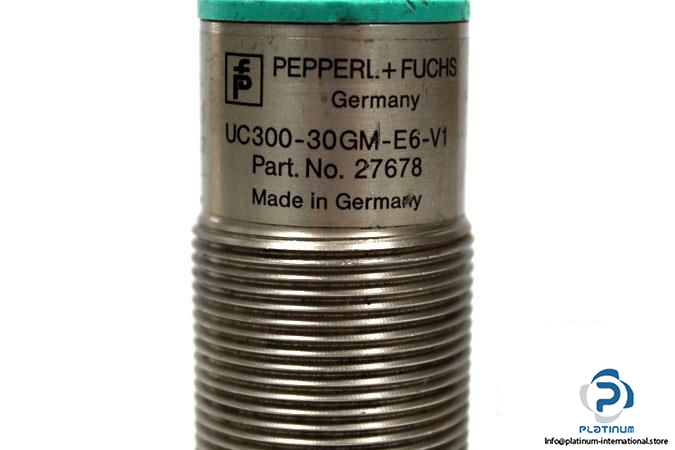

Model No.: UC30030GME6V1

Part No.: 27678

Replaced by: UC500-30GM-E6R2-V15

Sensing Range: 60 … 300 mm

Unusable Area: 0 … 60 mm

Standard Target Plate: 100 x 100 mm

Response Delay: ≤ 35 ms

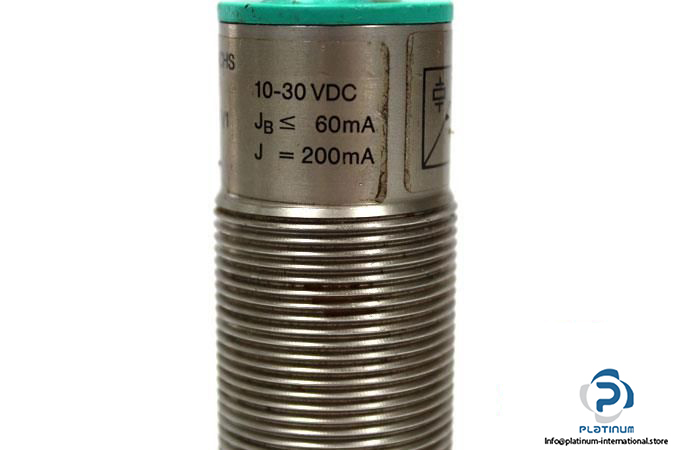

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Transducer Frequency: Approx. 380 kHz

Switching Frequency: ≥ 15 Hz

Electrical Design: PNP

Switching Output: Normally Open and Normally Closed

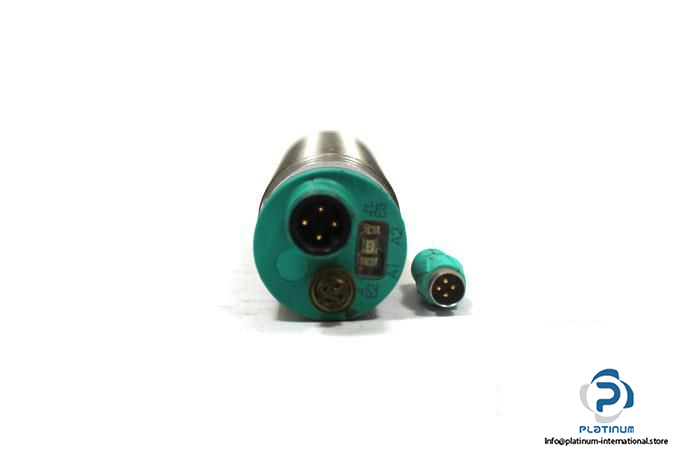

Connector Type: M12 Connector, 4-pin

Protection Class: II

Enclosure Rating: IP65

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 30, 93 mm

Housing Material: High Grade Stainless Steel

Sensing Face Material: Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
