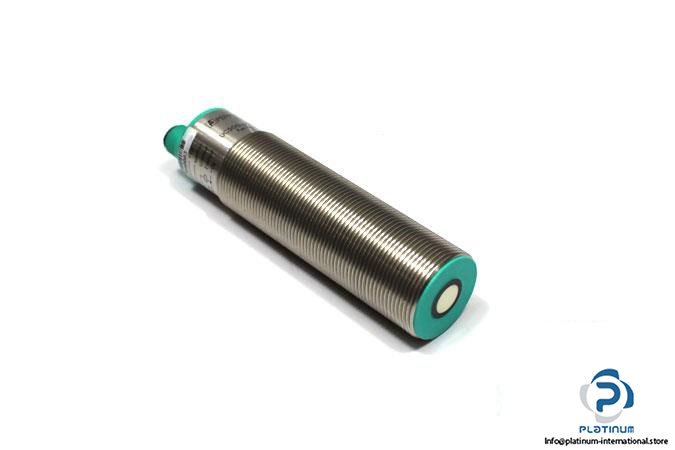

Pepperl+Fuchs UC500-30GM-IUR2-V15 Ultrasonic Sensor
450,00$
Manufacturer: PEPPERL FUCHS
Type: ULTRASONIC SENSOR

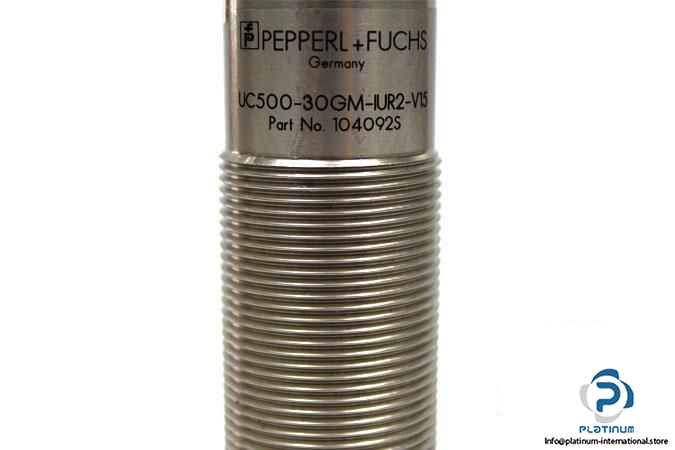

Model No.: UC50030GMIUR2V15
Part No.: 104092S
Sensing range: 30 … 500 mm
Adjustment range: 50 … 500 mm
Standard target plate: 100 x 100 mm
Transducer frequency: approx. 380 kHz
Response delay: 21 ms minimum,63 ms factory setting
Operating Voltage: 10 … 30 V DC
Power consumption: ≤ 900 mW
Frequency (Common mode operation): ≤ 95 Hz
Frequency (Multiplex operation): ≤ 95 Hz / n, n = number of sensors, n ≤ 5
Synchronization: bi-directional 0 level -UB…+1 V 1 level: +4 V…+UB
Interface type: RS232
Electrical design: PNP

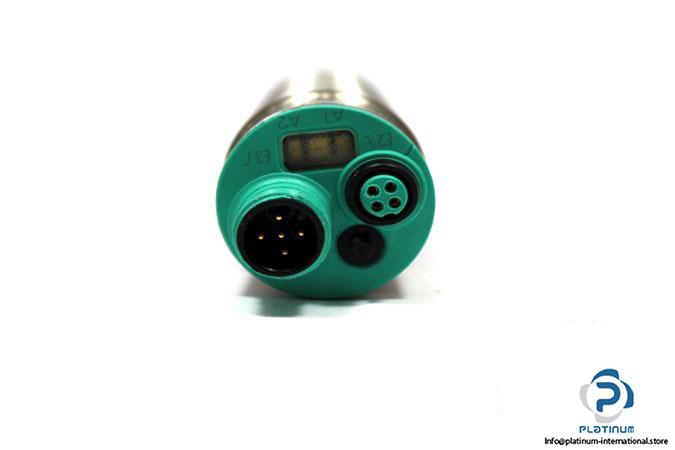

Connector type: M12 Connector, 5-pin
Protection class: II
Enclosure rating: IP65
Ambient Operating temperature: -25 … 70°C
Diameter, housing length: 30, 114 mm
Weight: 170 g
Housing material: Stainless steel, PBT
Sensing face material: epoxy resin/hollow glass sphere mixture; polyurethane foam
Supplied accessories: 2 lock nuts
Condition: Used
