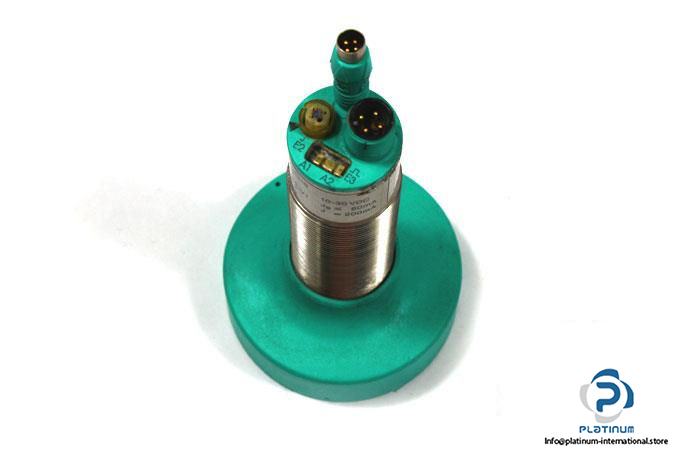

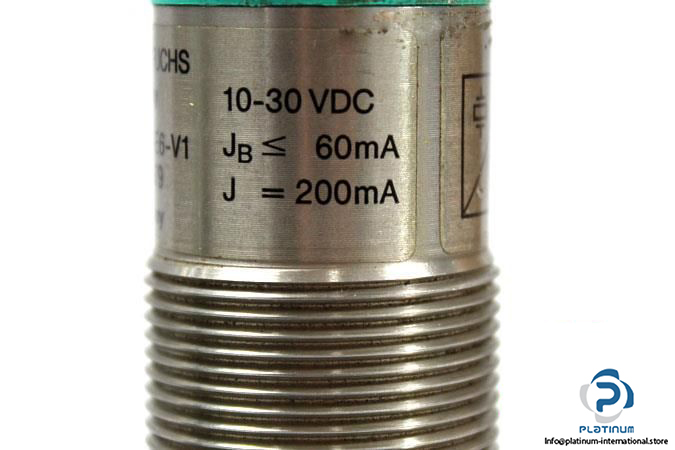

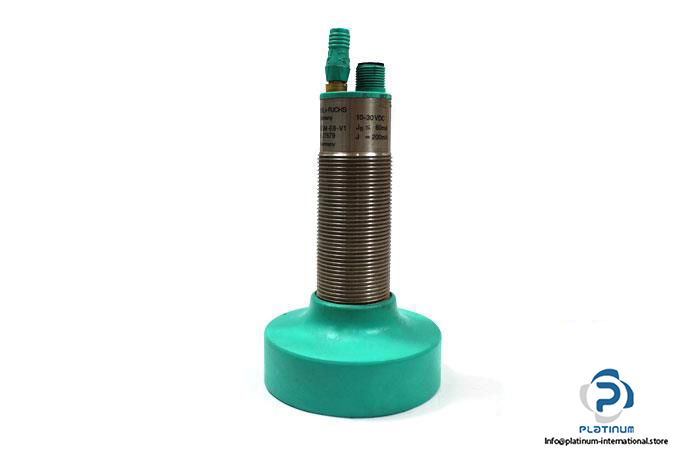

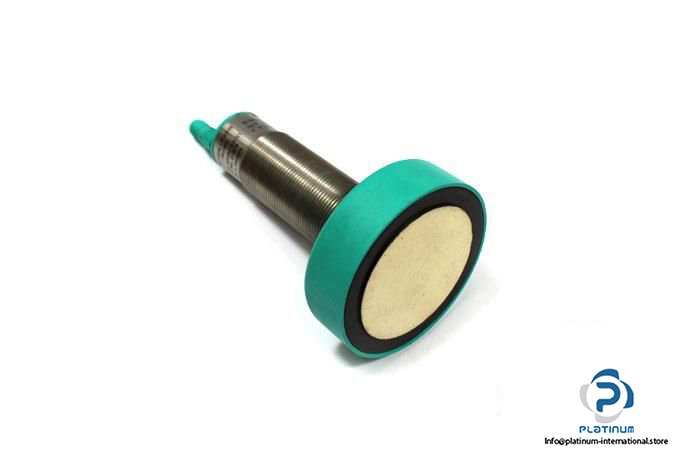

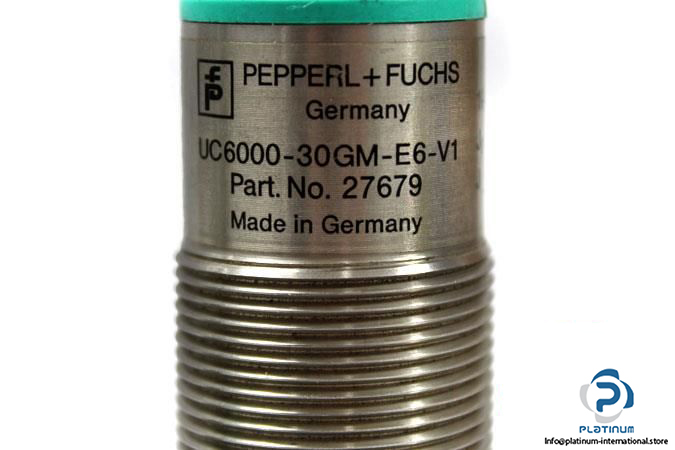

Pepperl+Fuchs UC6000-30GM-E6-V1 Ultrasonic Sensor

Manufacturer: PEPPERL FUCHS

Type: ULTRASONIC SENSOR

Model No.: UC600030GME6V1

Part No.: 27679

Replaced by: UC6000-30GM-E6R2-V15

Sensing range: 800 … 6000 mm

Unusable area: 0 … 800 mm

Standard target plate: 100 x 100 mm

Response delay: 500 m

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Transducer frequency: approx. 65 kHz

Switching frequency: 1 Hz

Electrical design: PNP

Switching output: Normally open/normally closed

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP65

Ambient Operating temperature: -25 … 70°C

Sensing face diameter: 73 mm

Housing length: 112 mm

Weight: 265 g

Housing material: High grade stainless steel

Sensing face material: epoxy resin/hollow glass sphere mixture; foam polyurethane, cover and head PBT

Supplied accessories: 2 lock nuts

Condition: Used
