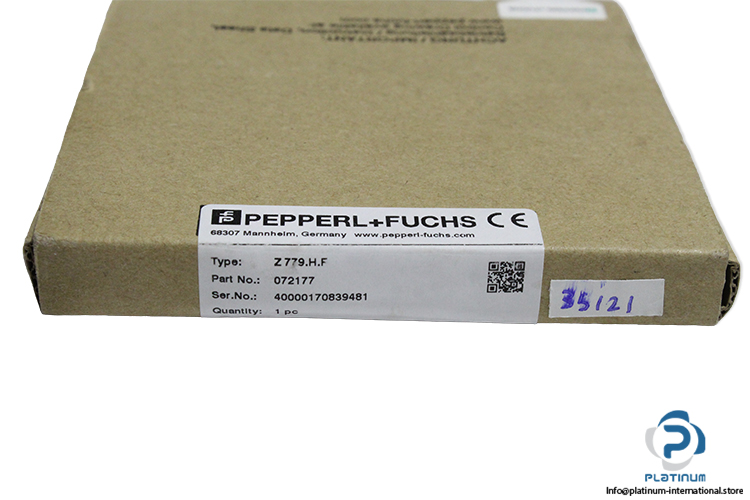

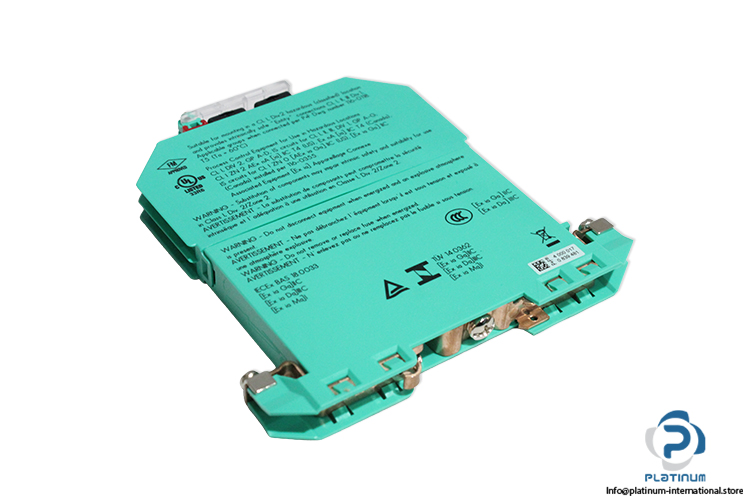

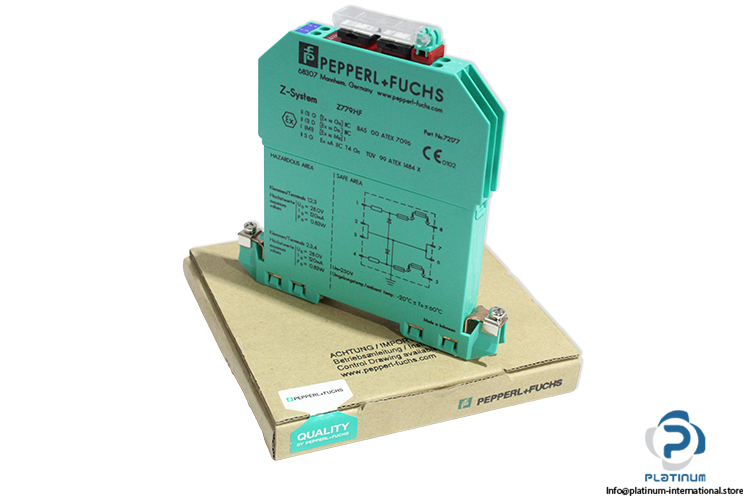

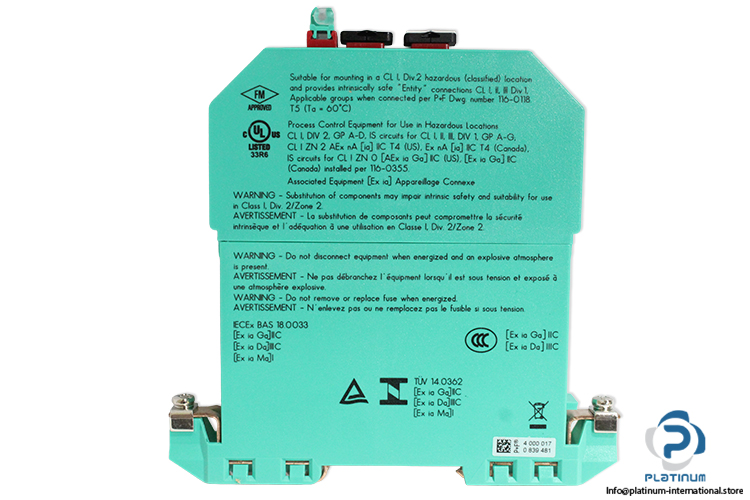

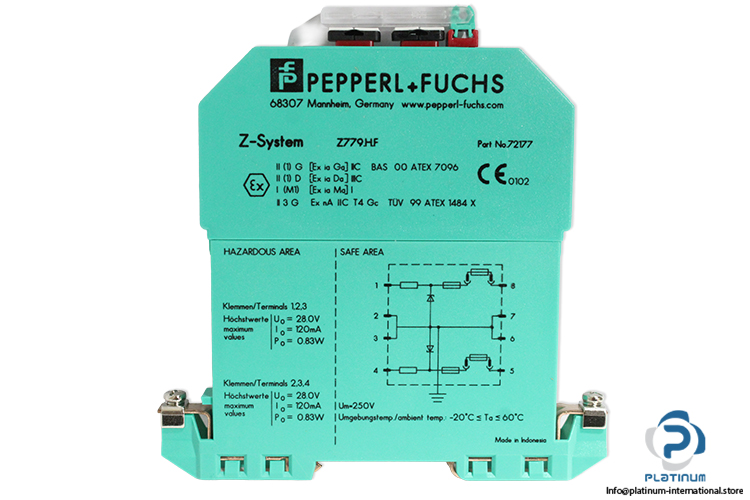

Pepperl+Fuchs Z779.H.F Zener Barrier

Available on request

Zener Barrier An intrinsic safety Zener barrier designed for explosion-proof signal protection in hazardous areas. Ideal for measurement and supply circuits in industrial automation and process control systems.

Manufacturer
PEPPERL+FUCHS
SKU
1084599
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.072177
Serial No.40000170839481
FamilyZ-SYSTEM
SupplySafety Parameters
Nominal Resistance 240 Ohm Voltage28 V
Current120 mA
Power830 mW
Maximum Safe Voltage (Um)250 V
Series Resistancemax. 273 Ohm
Fuse Rating50 mA
ConnectionTerminals 1, 2; 3, 4
Supply Loopmax. 27 V
Measurement Loopmax. 26.5 V at 10 µA
Ambient Temperature-20 / +60 °C
Degree of ProtectionIP20
Connection TypeScrew Terminals
Core Cross Sectionmax. 2 × 2.5 mm²
Dimensions12.5 x 115 x 116 mm
Construction TypeModular Terminal Housing
Mounting35 mm DIN Rail (EN 60715:2001)
Explosion ProofYes
Stock KeyCH001
ConditionNew
