Phase Motion Control U30710.30.3 Synchronous Servo Motor
Used
In stock1 unitReady to ship
Type: Three-phase servomotor
Manufacturer:
Phase Motion Control
Model:
U30710.30.3
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

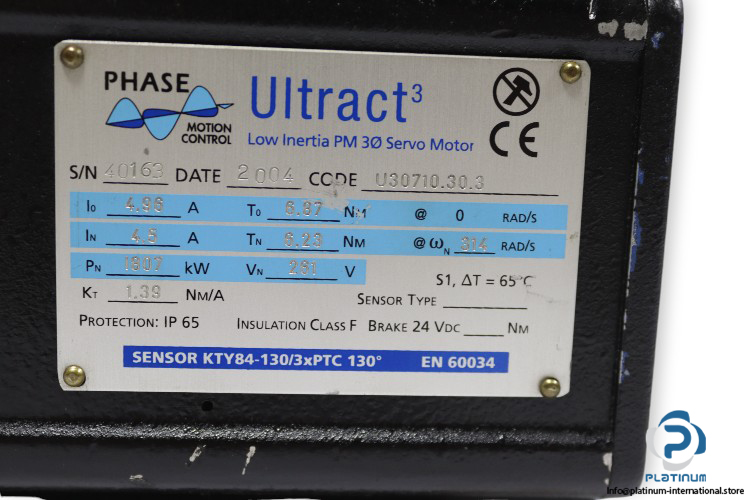

Manufacturer: Phase Motion Control
Type: Three-phase servomotor
Model: U30710.30.3
Stall Current: 4.96 A
Stall Torque: 6.87 Nm
At angular speed 0 rad/s
Rated Torque: 6.23 Nm
Rated Current: 4.5 A
Rated Voltage: 261 V
Rated power: 1807 kW
At angular speed 314 rad/s
Brake Voltage: 24 VDC
Torque Constant Kt: 1.39 NM/A
Thermal Class: F
Protection Class: IP65
Temperature Measuring: KTY84-130/3XPTC 130°
