Phoenix Contact 1681981 Sensor/Actuator Cable
New
In stock1 unitReady to ship
Sensor/Actuator Cable

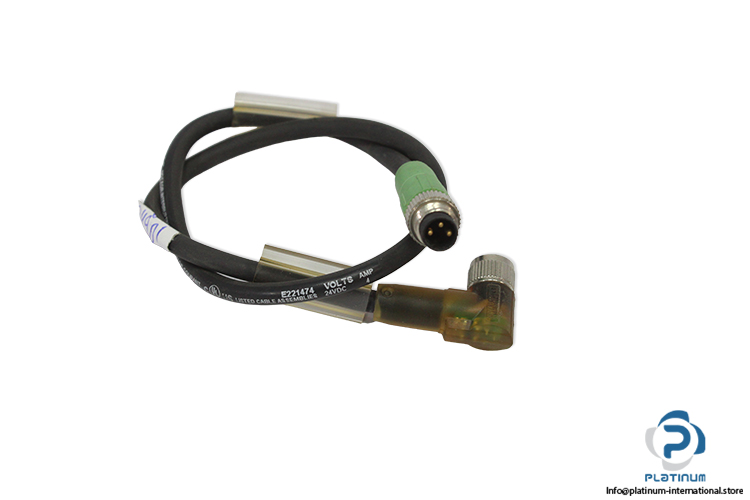

Phoenix Contact M8 sensor/actuator cable with 0.3 m PUR cable, straight plug to angled socket configuration, designed for industrial automation signal connections.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Phoenix Contact SAC-3P-M 8MS/0,3-PUR/M 8FR-2L Sensor/Actuator Cable
The Phoenix Contact SAC-3P-M 8MS/0,3-PUR/M 8FR-2L is a compact sensor/actuator connection cable designed for reliable signal transmission in industrial automation systems. The cable features M8 connectors with a straight plug and angled socket configuration, PUR outer sheath, and durable copper conductors suitable for industrial environments.
Manufacturer: Phoenix Contact
Type: Sensor/Actuator Cable
Model: SAC-3P-M 8MS/0,3-PUR/M 8FR-2L

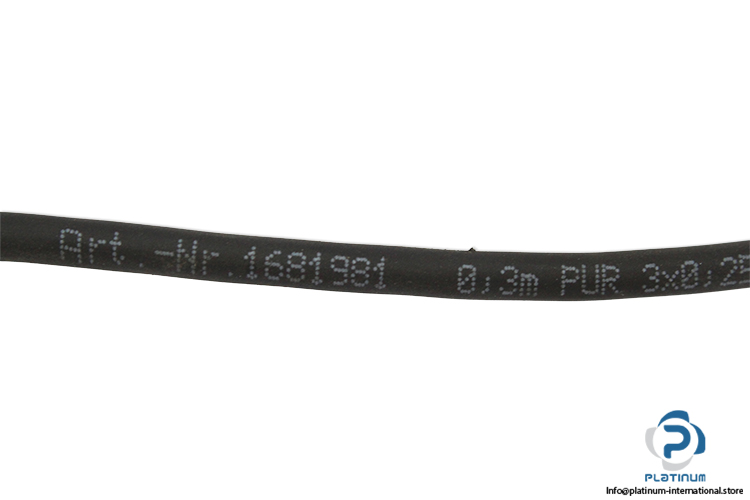

Part No.: 1681981
| Cable Length | 0.3 m |
| Connector 1 | Plug Straight M8 |

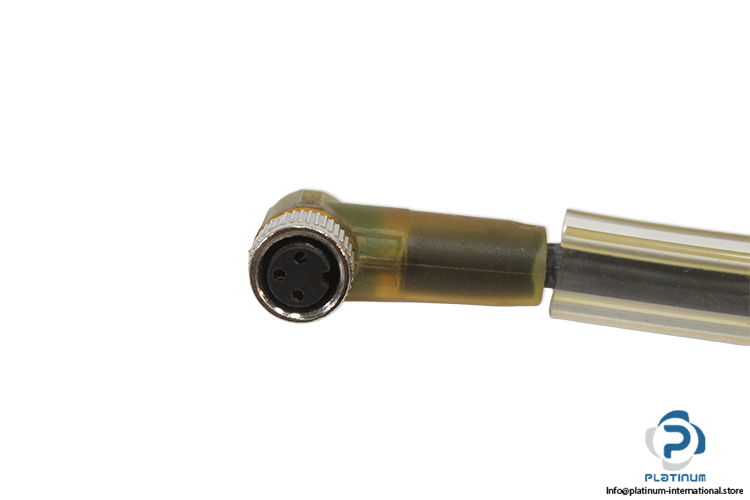

| Connector 2 | Socket Angled M8 |

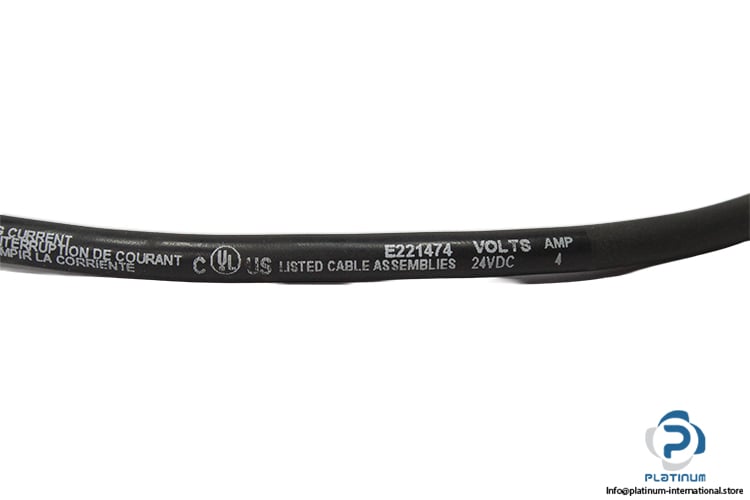

| Cable Information | E221474, 24 VDC, 4 A |
| Number Of Positions | 3 |
| No. Of Cable Outlets | 1 |
| Shielded | No |
| Coding | A |
| Contact Material | CuSn |
| Contact Surface Material | Ni/Au |
| Insulation Resistance | ‰¥ 100 MΩ |
| Nominal Voltage UN | 24 V DC |
| Nominal Current IN | 4 A |
| Insertion/Withdrawal Cycles | ‰¥ 100 |
| Tightening Torque | 0.2 Nm (M8 Connectors) |
| AWG Signal Line | 24 |
| Conductor Cross-Section | 3 × 0.25 mm² (Signal Line) |
| Wire Diameter Incl. Insulation | 1.17 mm ±0.02 mm |
| External Cable Diameter | 3.60 mm ±0.15 mm |
| Outer Sheath, Material | PUR |
| External Sheath, Color | Black-Gray RAL 7021 |
| Conductor Material | Bare Cu Litz Wires |
| Material Wire Insulation | PP |
| Single Wire, Color | Brown, Blue, Black |
| Thickness, Insulation | ‰¥ 0.21 mm (Core Insulation) |
| Thickness, Outer Sheath | Approx. 0.50 mm |
| Overall Twist | 3 Wires, Twisted |
| Length Of Twist, Overall Twist | 40 mm |
| Max. Conductor Resistance | ‰¤ 78 Ω/km (At 20 °C) |
| Insulation Resistance | ‰¥ 100 GΩ·km (At 20 °C) |
| Nominal Voltage, Cable | ‰¤ 300 V |
| Test Voltage | ‰¥ 3000 V |
| Smallest Bending Radius, Fixed Installation | 18 mm |
| Smallest Bending Radius, Movable Installation | 36 mm |
