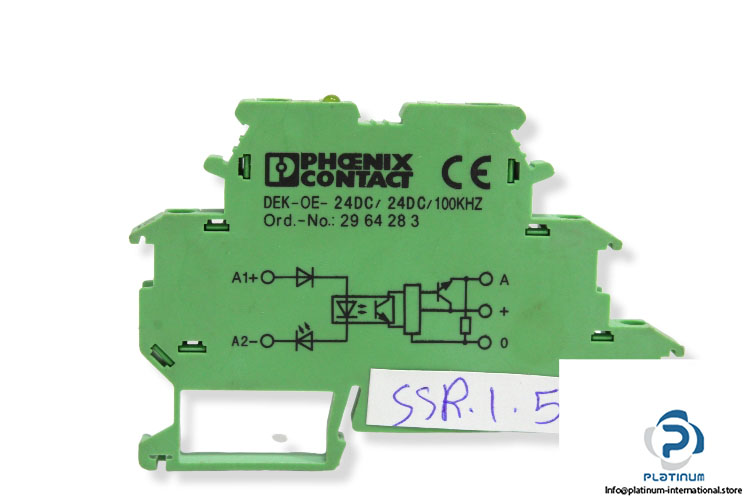

Phoenix Contact DEK-OE-24DC/24DC/100KHZ Solid State Relay
The Phoenix Contact DEK-OE-24DC/24DC/100KHZ is a slim and efficient solid state relay designed for high-speed switching in industrial automation. With compact dimensions and screw connection, it offers reliable performance in control systems requiring consistent DC output handling.
Manufacturer: Phoenix Contact
Type: Solid State Relay
Model: DEK-OE-24DC/24DC/100KHZ
Order No.: 2964283
| Input Voltage | 24 V DC (19.2 / 28.8 V DC) |
| Typical Input Current | 6 mA |
| Power (Max) | 3 mW |
| Output Voltage Range | 4 to 30 V DC |
| Limiting Continuous Current | 50 mA |
| Contact Type | 1 N/O contact |
| Connection Method | Screw connection |
| Operating Temperature | -20 to +60 °C |
| Dimension | 6.2 x 80 x 56 mm |
