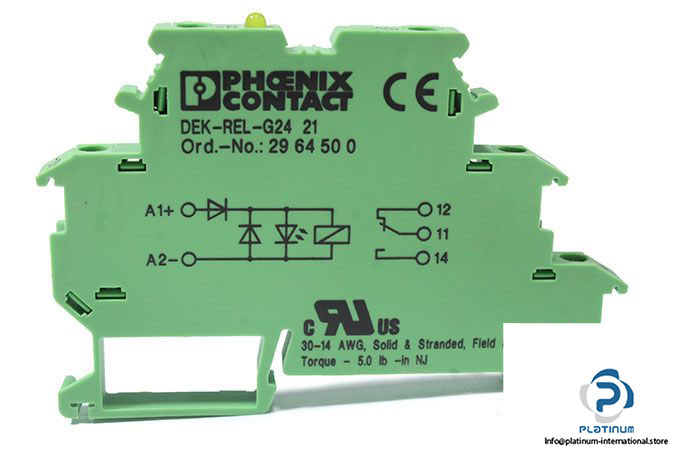

Phoenix Contact DEK-REL-G24/21 – 2964500 Relay Module

Manufacturer: Phoenix Contact

Type: Relay Module

Model: DEK-REL-G24/21 – 2964500

Part No.: 2964500

Nominal Input Voltage: 24 VDC

Typical Input Current: 9 mA

Typical Response Time: 8 ms

Typical Release Time: 5 ms

Contact Type: 1 changeover contact

Type of Switch Contact: Single contact

Connection Method: Screw connection

Stripping Length: 8 mm

Screw Thread: M3

Contact Material: AgSnO

Operating Voltage Display: Yellow LED

Power Dissipation for Nominal Condition: 0.22 W

Ambient Temperature (Operation): -20 … 50 °C

Torque: 0.5 Nm

Pollution Degree: 2

Dimensions: 80 X 6.2 X 56 mm

Weight: 0.02 Kg
