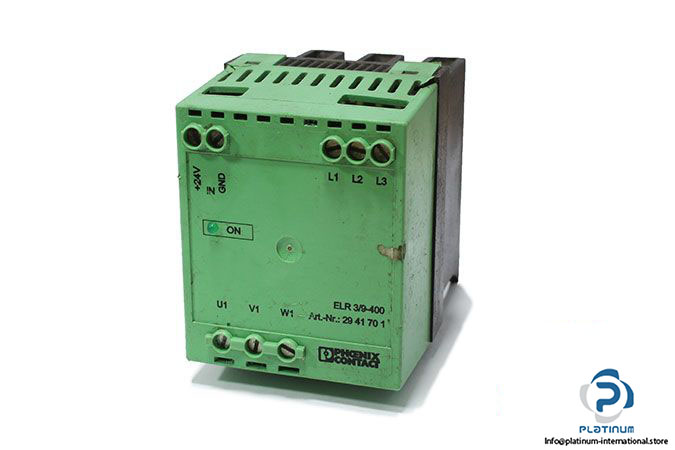

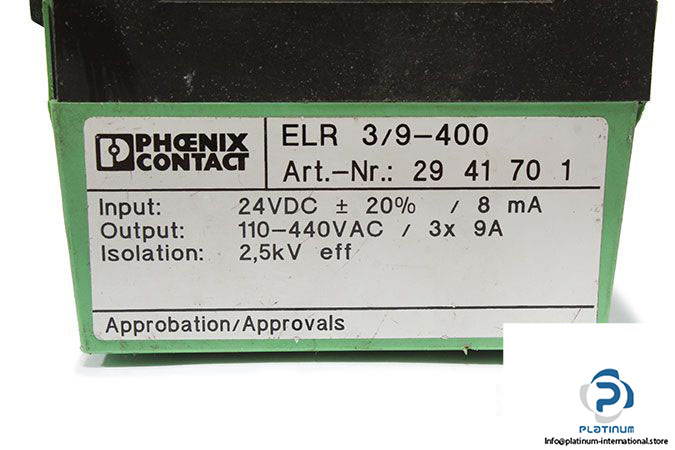

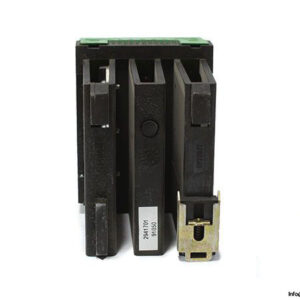

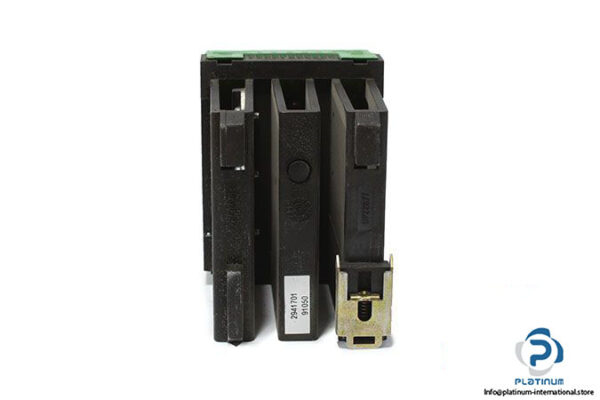

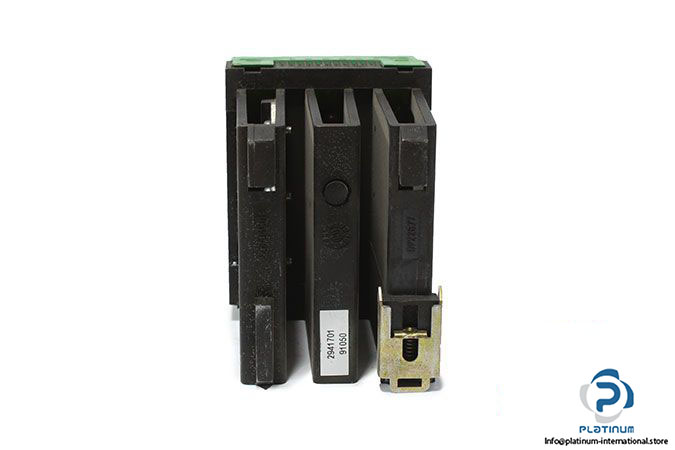

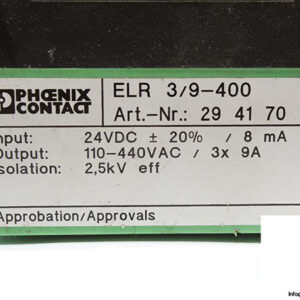

Phoenix Contact ELR 3/ 9-400 – 2941701 Load Relay

Manufacturer: PHOENIX CONTACT

Type: Load Relay

Model: ELR 3/ 9-400 – 2941701

Art No.: 2941701

Test Voltage Input/Output: 2.5 kV

Switching Frequency: max. 10 Hz

Input:

Rated Actuating Voltage: 24 VDC

Triggering Voltage Range: 19.2 … 28.8 V DC

Current: 8 mA

Reaction Time in Normal Load Operation: 20 ms

Output:

Rated Operating Voltage: 400 VAC

Operating Voltage Range: 110 … 440 V AC

Load Current Range:       150 mA … 9 A

Degree of Protection: IP20

Connection Method: Screw connection

Ambient Temperature: -20 … 60 °C

Dimensions: 63 X 107 X 80 mm

Weight: 0.68 Kg
