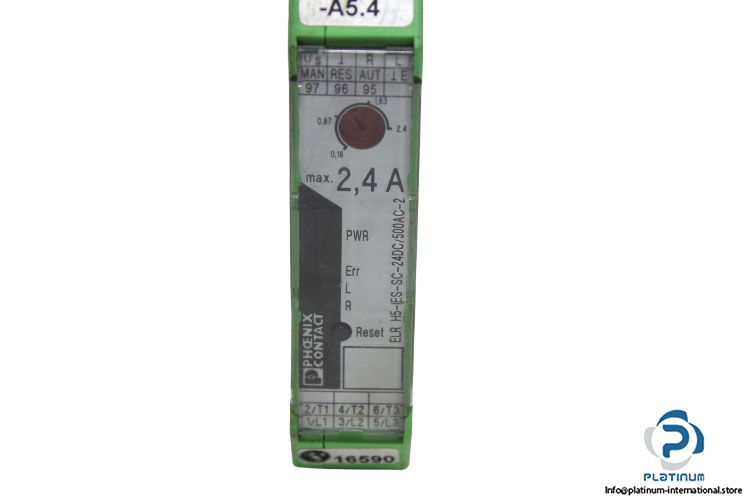

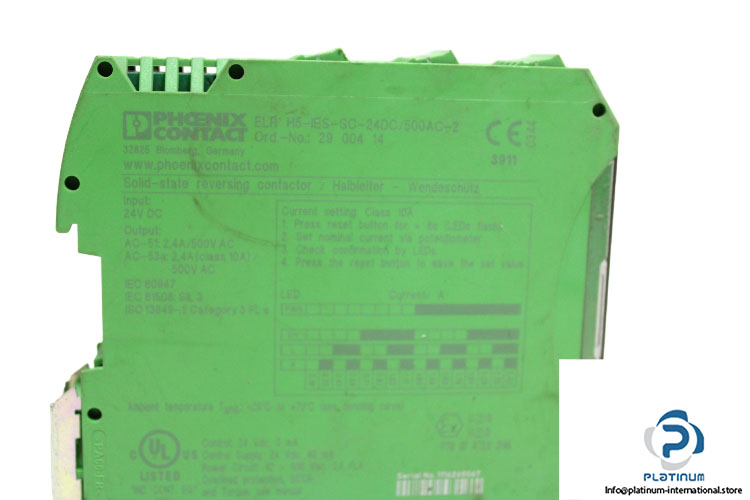

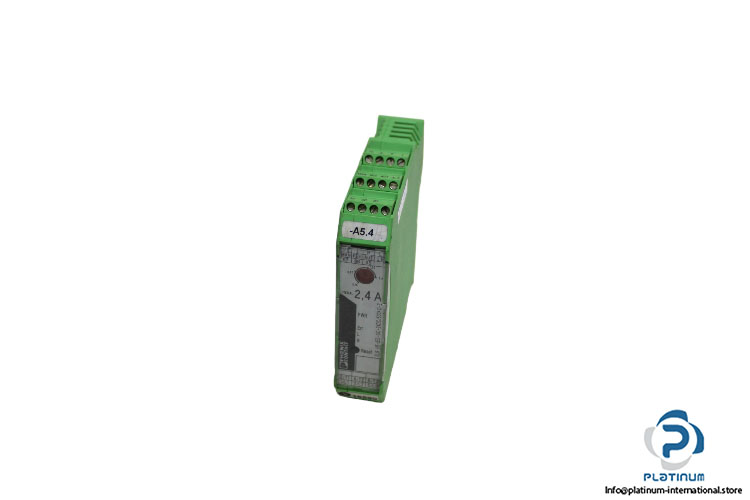

Phoenix Contact ELR H5-IES-SC-24DC/500AC-2 Hybrid Motor Starter
Manufacturer: Phoenix Contact
Type: Hybrid Motor Starter
Model: ELR H5-IES-SC-24DC/500AC-2
Order No.: 29 004 14
Rated control circuit supply voltage (US): 24 V DC
Output: AC-51: 2.4A, 500 V AC / AC-53a: 2.4A,500 V AC
Frequency: 50/60 Hz
Contact type: changeover contact (Single pole double through)
Connection method: Screw connection
Screw thread: M3
Operating Temperature: -25 … +70 °C
Degree of Protection: IP20
Dimensions: 22.5 x 106.6 x 113.7 mm
