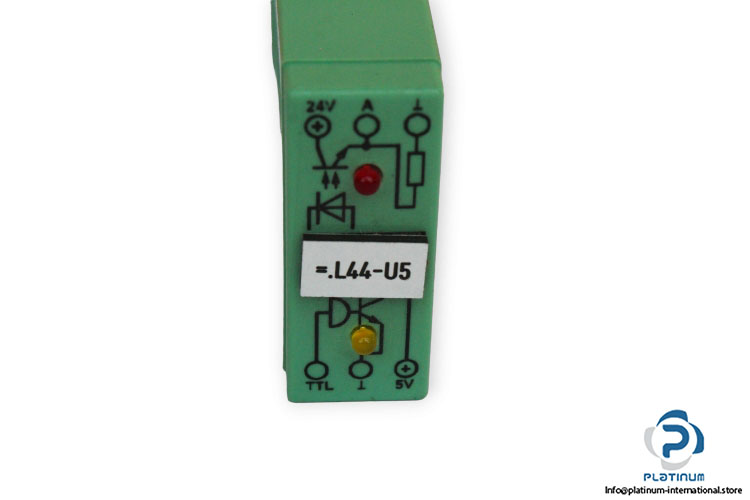

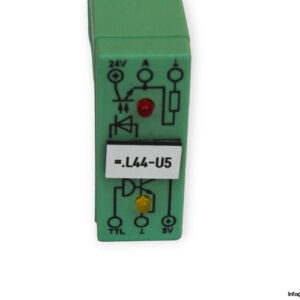

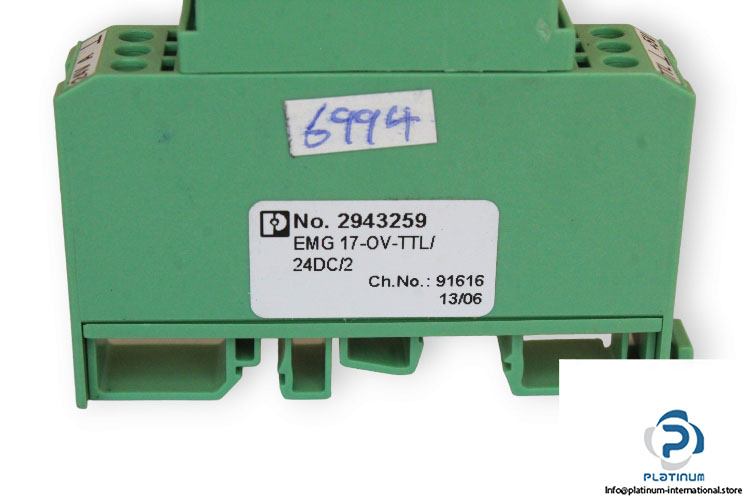

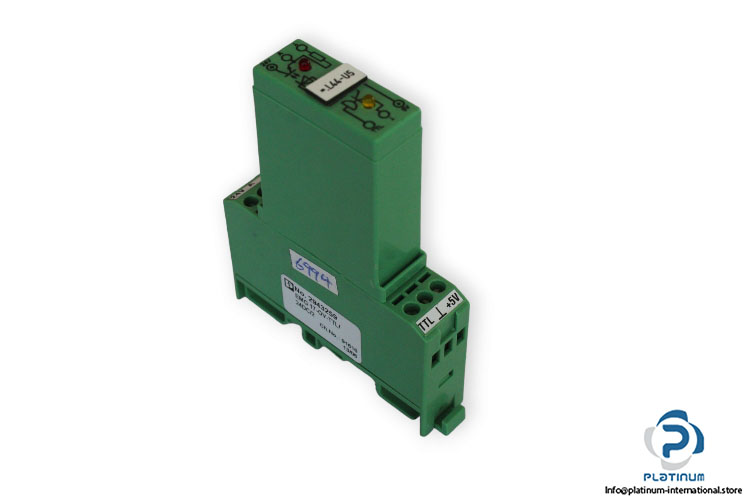

Phoenix Contact EMG 17-OV-TTL/24DC/2 Solid State Relay Module
Used
In stock8 unitsReady to ship
19,99$
SOLID STATE RELAY MODULE
Phoenix Contact EMG 17-OV-TTL/24DC/2 solid-state relay module with 5 V DC input, 24 V DC output, 2 A continuous current, advanced protections, and compact 75 x 17.5 x 102 mm design.17-OV-TTL/24DC/224v29432592A5VCompactContactdcEMGIndustrialInputModuleOutputPhoenixPolarityProtectionRelayReverseSolidSSRStateSurge
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Phoenix Contact EMG 17-OV-TTL/24DC/2 Solid State Relay Module
The Phoenix Contact EMG 17-OV-TTL/24DC/2 is a compact and reliable solid-state relay module designed for industrial automation. With robust input/output specifications, advanced protection features, and screw connection terminals, it ensures long-term durability and efficient operation in control applications.
Manufacturer: Phoenix Contact
Type: Solid State Relay Module
Model: EMG 17-OV-TTL/24DC/2
Order No.: 2943259
Input
Output
General
| Nominal Input Voltage | 5 V DC |
| Typical Input Current | 2.6 mA |
| Input Voltage Range | 4 / 6 V DC |
| Connection Method | Screw connection |
| Stripping Length | 8 mm |
| Nominal Output Voltage | 24 V DC |
| Output Voltage Range | 10 / 30 V DC |
| Limiting Continuous Current | 2 A |
| Voltage Drop at Max. Continuous Current | ‰¤ 0.3 V |
| Type of Protection | Reverse polarity protection, Surge protection, Freewheeling diode |
| Contact Switching Type | 1 N/O contact |
| Screw Thread | M3 |
| Pollution Degree | 2 |
| Ambient Temperature (Operation) | -20 / 60 °C |
| Dimensions | 75 x 17.5 x 102 mm |
