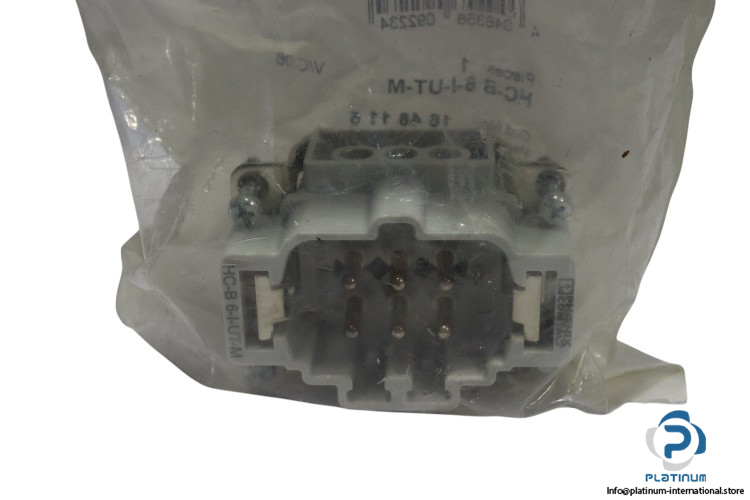

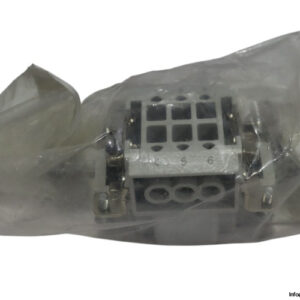

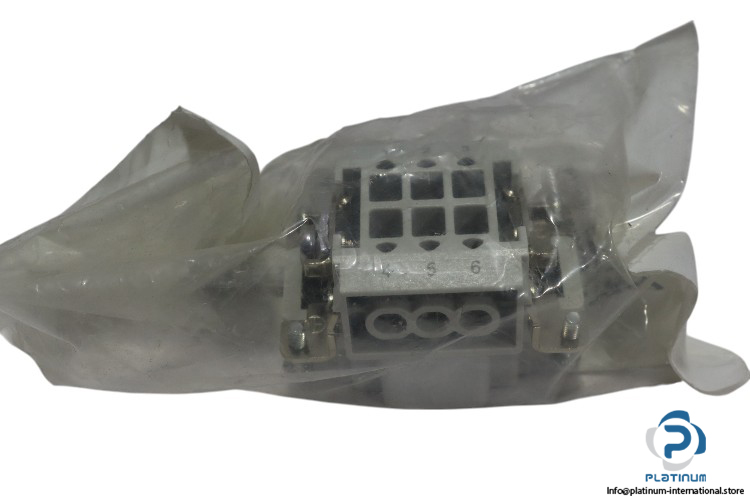

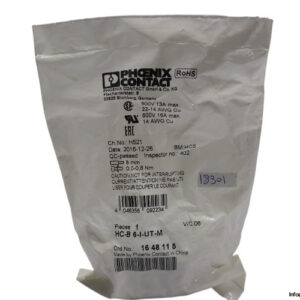

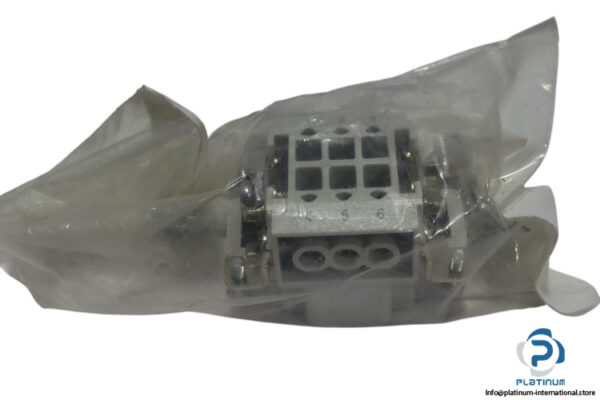

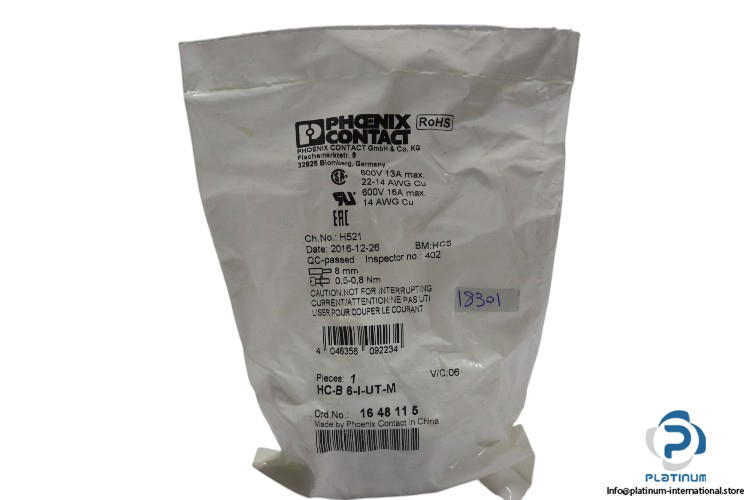

Phoenix Contact HC-B 6-I-UT-M Contact Insert

Phoenix Contact HC-B 6-I-UT-M Contact Insert

The Phoenix Contact HC-B 6-I-UT-M (Part No.: 16 48 11 5) is a robust contact insert designed for power applications requiring high reliability and durability. Built to handle up to 500 V and 16 A, it features a 6+PE connection profile with screw connection technology, providing secure and consistent electrical contact. This B6-type insert is engineered for use in harsh environments, offering a wide operating temperature range of -40°C to +125°C and a rated surge voltage of 6 kV. With a compact footprint, it is ideal for modular industrial connectors in power distribution systems.

• Manufacturer: Phoenix Contact
• Type: Contact Insert
• Model: HC-B 6-I-UT-M
• Part No.: 16 48 11 5

Technical Specifications:

• Rated Voltage (III/3): 500 V
• Rated Surge Voltage: 6 kV
• Rated Current: 16 A
• Application: Power
• Type: B6
• Number of Positions: 6
• Connection Profile: 6+PE
• Degree of Pollution: 3
• Contact Diameter: 2.5 mm
• Connection Technology: Screw connection
• Number of Connections per Position: 1
• Ambient Temperature (Operation): -40°C to +125°C
• Dimensions (H x W x D): 32 x 34 x 50.5 mm

Applications:

• Industrial power distribution systems
• Machine and control cabinet installations
• Heavy-duty modular connectors
• Electrical systems in harsh environments
