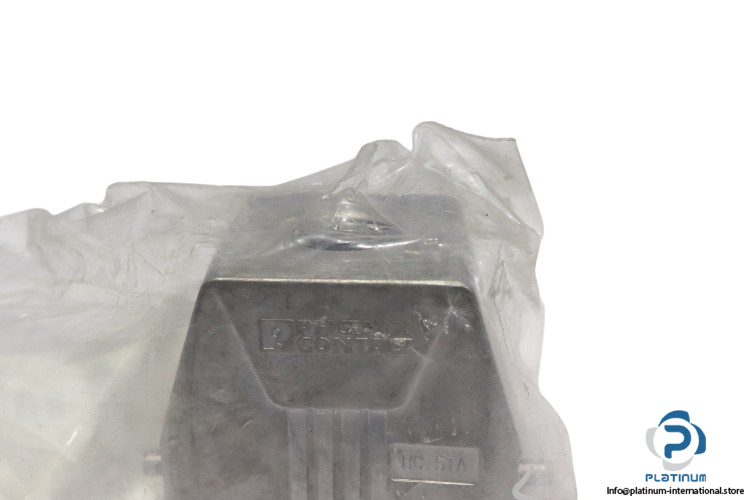

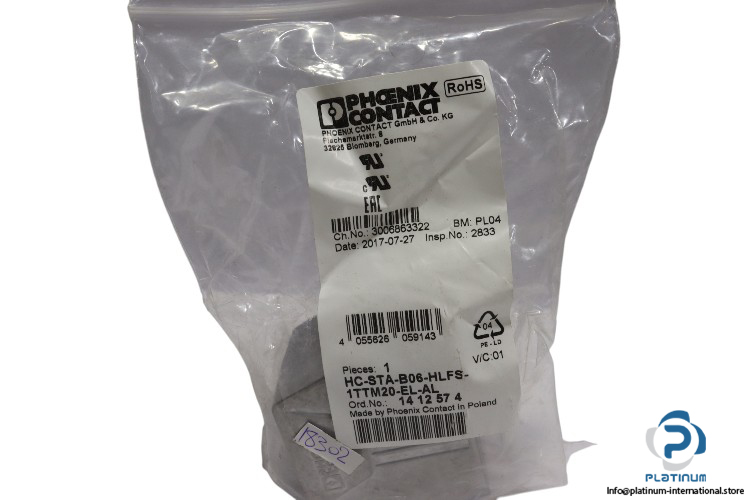

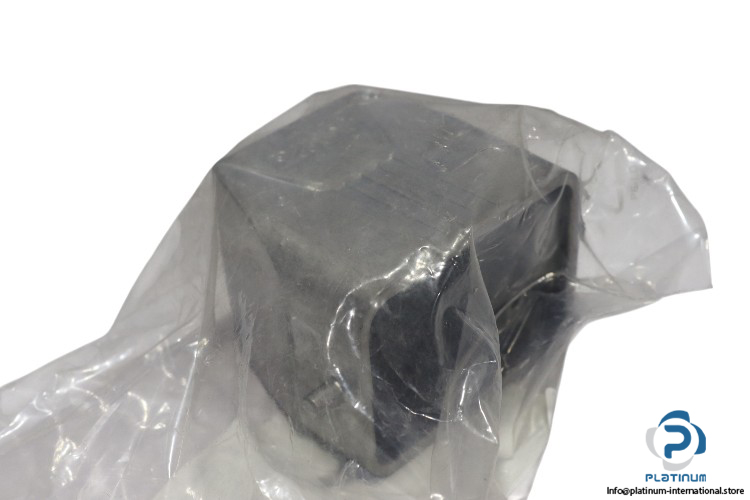

Phoenix Contact HC-STA-B06-HLFS-1TTM20-EL-AL Sleeve Housing

Phoenix Contact HC-STA-B06-HLFS-1TTM20-EL-AL Sleeve Housing

The Phoenix Contact HC-STA-B06-HLFS-1TTM20-EL-AL is a robust B6-type sleeve housing designed for reliable protection and secure cable management in industrial environments. With a single straight M20 cable outlet and integrated locking latch, this aluminum housing ensures high mechanical strength and corrosion resistance. It meets IP66 and IP67 protection standards, making it suitable for use in harsh conditions including dust, moisture, and vibration. The unit is ideal for enclosing contact inserts in modular connector systems where durability and environmental sealing are essential.

• Manufacturer: Phoenix Contact
• Type: Sleeve Housing
• Model: HC-STA-B06-HLFS-1TTM20-EL-AL
• Part No.: 14 12 57 4

Technical Specifications:

• Type: B6
• Product Type: Housing with locking latch
• Application: Standard
• Number of Cable Outlets: 1
• Cable Outlet: Straight
• Screw Connection: 1x M20
• Locking Type: For single locking latch
• Housing Type: Sleeve housing
• Color: Gray aluminum
• Degree of Protection: IP66, IP67
• Ambient Temperature (Operation): -40 to +125 °C
• Dimensions (H x W x D): 52 x 44 x 60 mm

Applications:

• Industrial control cabinets
• Power and signal interface systems
• Heavy-duty industrial connectors
• Outdoor and harsh environment enclosures
