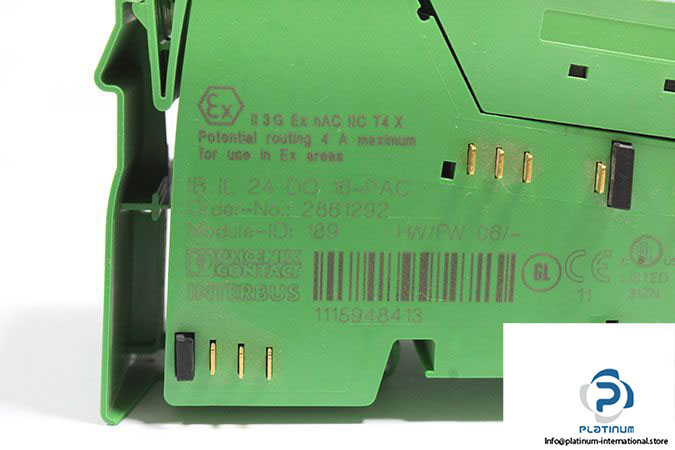

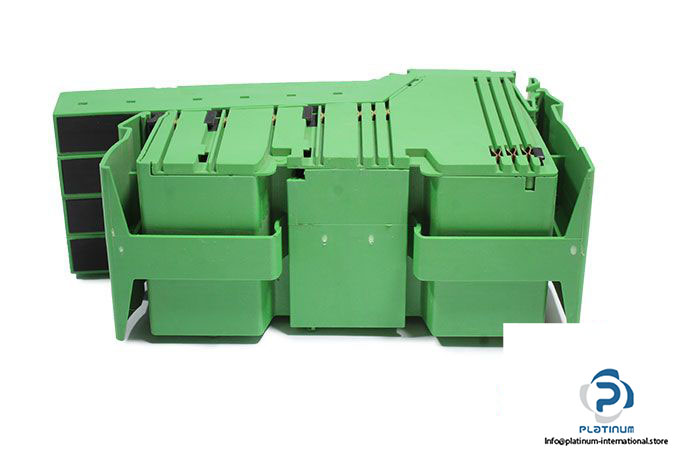

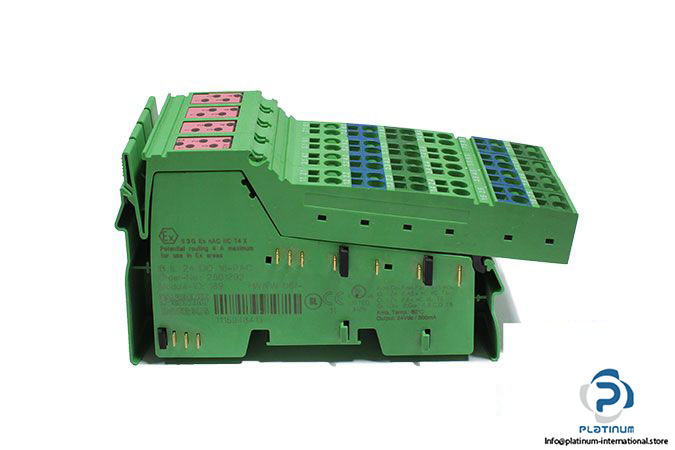

Phoenix Contact IB IL 24 DO 16-PAC – 2861292 Inline Terminal

Manufacture: PHOENIX CONTACT

Type: Inline Terminal

Model: IB IL 24 DO 16-PAC – 2861292

Order No.: 2861292

Supply Voltage: 7.5 V DC

Current Consumption: max. 90 mA

Power Consumption: max. 0.675 W

Output Name: Digital outputs

Connection Method: Spring-cage connection

Connection Technology: 3-wire

Number of Outputs: 16

Operating Mode: Process data mode with one word

Air Pressure (Storage/Transport): 70 … 106 kPa

Mounting Type: DIN rail

Color: green

Degree of Protection: IP20

Temperature Range: -25 … 55°C

Dimensions: 140.5 X 48.8 X 71.5 mm

Weight: 0.2 Kg
