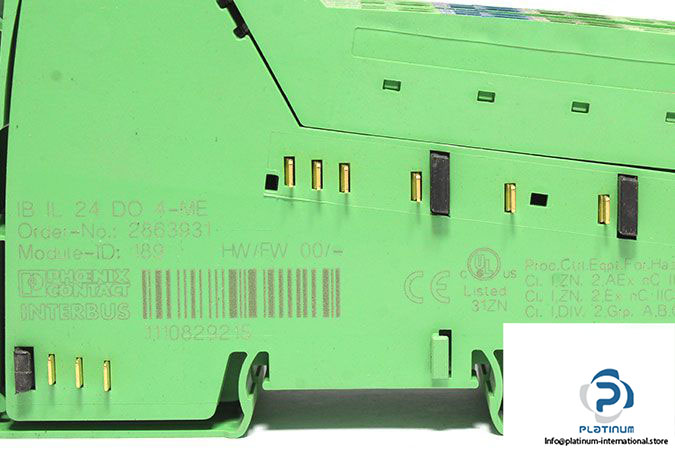

Phoenix Contact IB IL DO 4-ME – 2863931 Digital Output Terminal
Manufacturer: Phoenix Contact
Type: Digital output terminal
Model: IB IL DO 4-ME
Order No.: 2863931
No. of Digital outputs: 4
Nominal current per output: 500 mA
Total current of the terminal: 2 A
Transmission Speed: 500 kbps
Operating Temp.: -25 … 55 °C
Supply voltage: 7.5 V DC, 24 V DC (via voltage jumper)
Current consumption: max. 44 mA
Power consumption: max. 0.33 W
Output Voltage: 24 V DC
Inrush current: max. 1.5 A (for 20 ms)
Dimensions: WHD 12.2 x 119.8 x 71.5 mm
Weight: 0.24 kg
