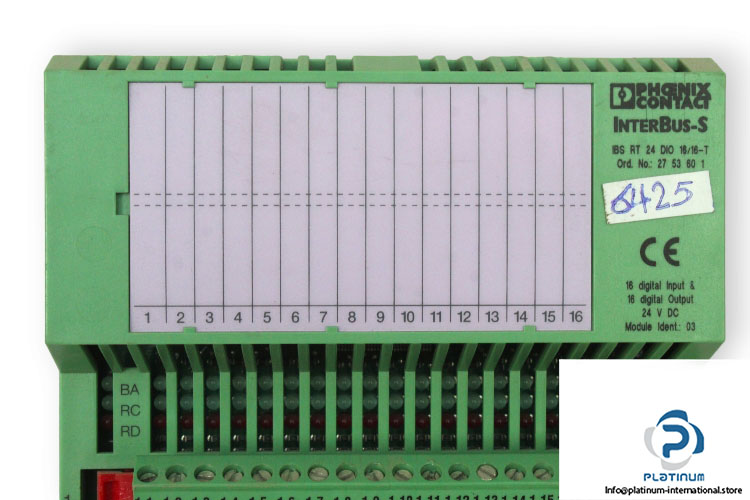

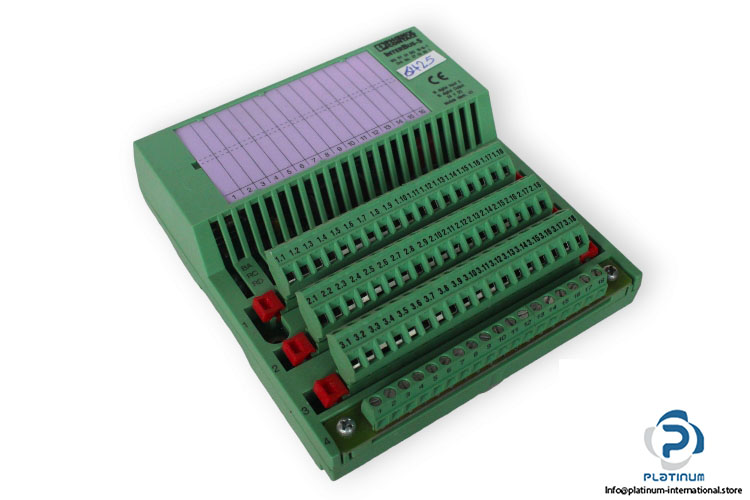

Phoenix Contact IBS RT 24 DIO 16/16-T I/O Module

Manufacturer: Phoenix Contact
Type: I/O Module
Model: IBS RT 24 DIO 16/16-T
Part No: 2753601

Number of Inputs: 16
Typical Current Consumption: 100 mA
I/O Voltage: ± 24 VDC
I/O Voltage Range: 19.2 … 30 VDC
Typical Input Current Per Channel: 6 mA
Number of Outputs: 16

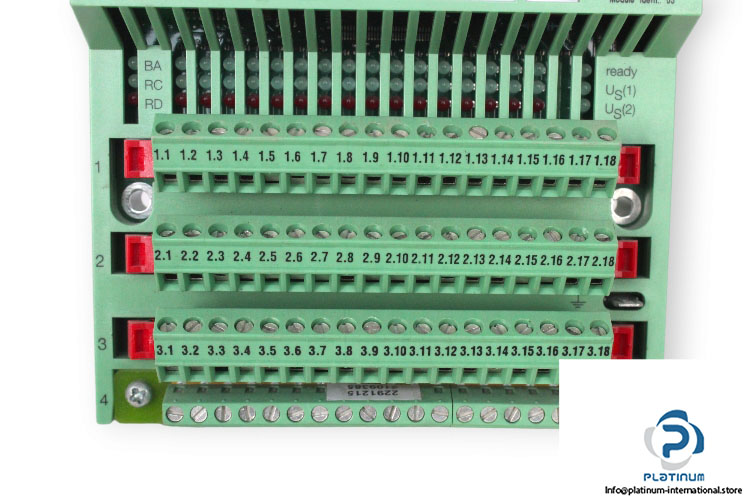

Connection technology: 1-conductor (optional 2, 3, 4-conductor)
Output Voltage: 24 V DC
Output Current: 100 mA
Input Voltage Range “0” Signal: -30 V DC … 5 V DC
Input Voltage Range “1” Signal: 15 V DC … 30 V DC
Interface: remote bus

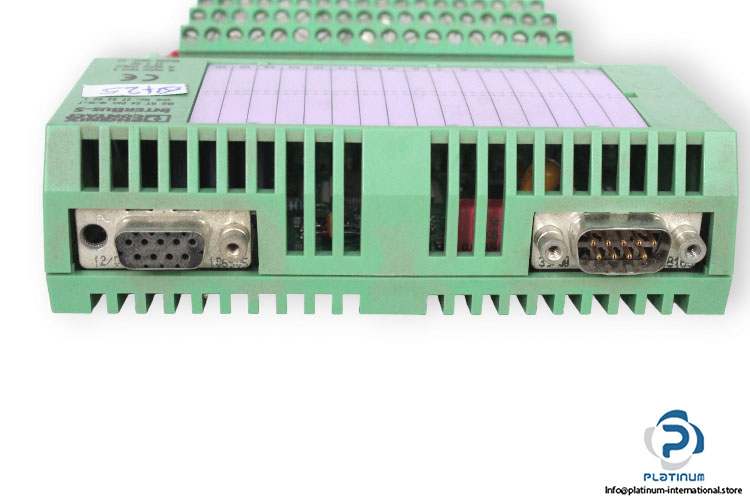

Connection Method: D-SUB-9
Dimensions: 44 X 125 X 146 mm
