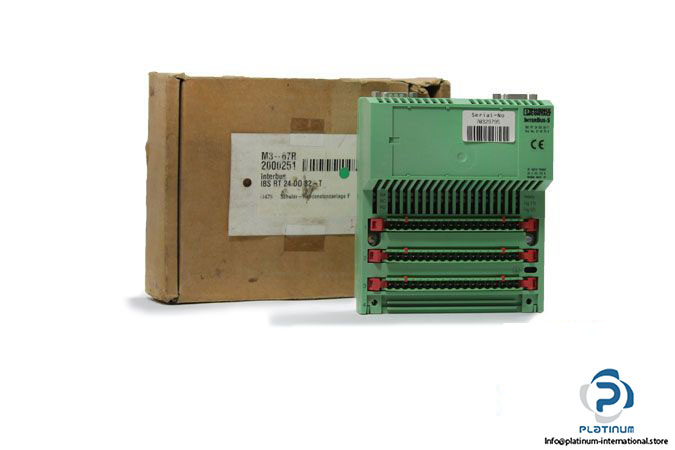

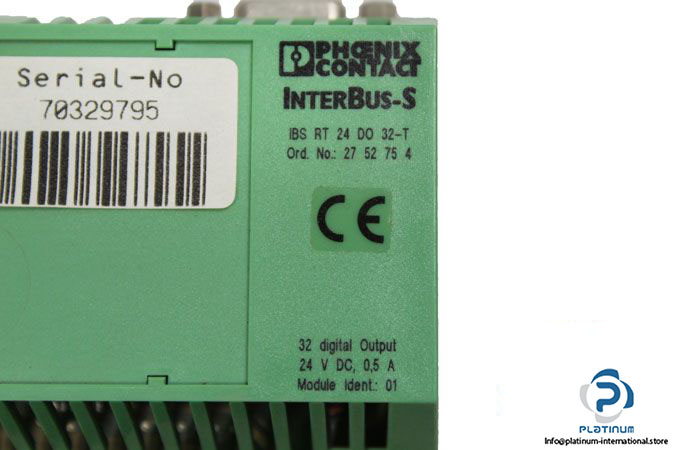

Phoenix Contact IBS RT 24 DO 32-T – 2752754 I/O Module

Manufacturer: Phoenix Contact

Type: I/O Module

Model: IBS RT 24 DO 32-T – 2752754

Order No.: 2752754

Typical Current Consumption: 100 mA

I/O Voltage: 24 VDC

Residual Ripple: ± 1.2 VPP

I/O Voltage Range: 19.2 … 30 VDC

Number of Outputs: 32

Number of Output Groups: 2

Connection Technology: 2-wire (optionally 3-wire)

Maximum Output Current Per Channel: 500 mA

Maximum Output Current Per Group: 8 A

Interface: INTERBUS remote bus (incoming/outgoing)

Nominal Load, Ohmic: 12 W

Connection Method: D-SUB-9

Degree of Protection: IP20

Ambient Temperature (Operation): -25 … 55 °C

Dimensions: 44 X 125 X 146 mm

Weight: 0.24 Kg
