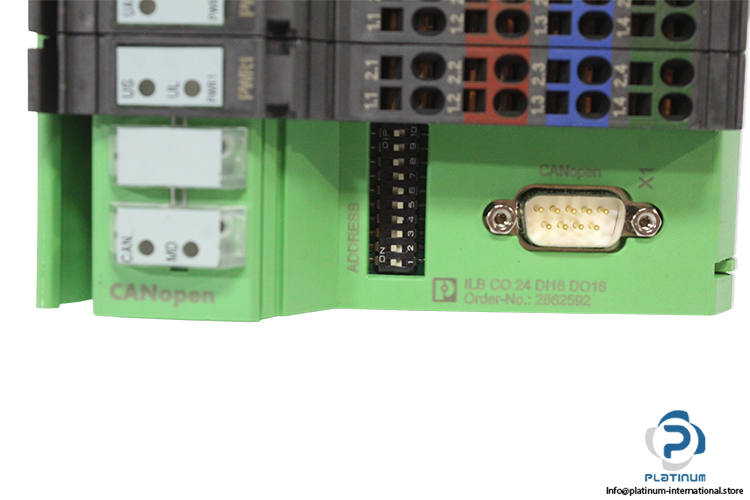

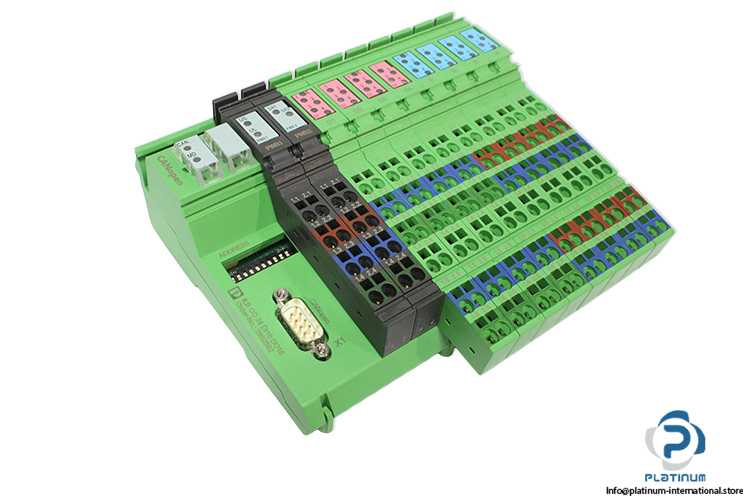

Phoenix Contact ILB CO 24 DI16 DO16 I/O Module

In stock2 unitsReady to ship

I/O Module

PHOENIX CONTACT ILB CO 24 DI16 DO16 Inline I/O module with 16 digital inputs, 16 digital outputs, 24 V DC operation, CANopen communication, and integrated protection circuits.

Manufacturer
PHOENIX CONTACT
SKU
1095744
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.2862592

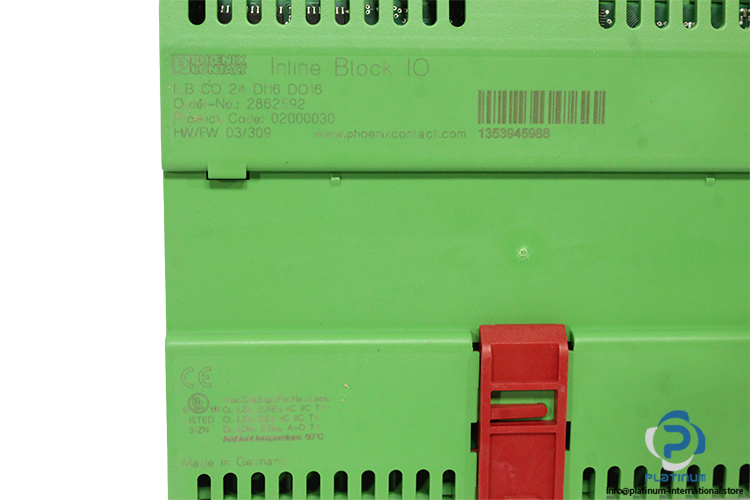

Code02000030 / 1353945988
Version No.03/309
Product FamilyInline
Scope of SupplyIncluding Inline Connector
No. of Channels32
Description of the InputIEC 61131-2 Type 1
Number of Inputs16
Digital Inputs Connection Technology3-Conductor
Input Voltage24 V DC
Input Voltage Range “0” Signal-30 V DC … 5 V DC
Input Voltage Range “1” Signal15 V DC … 30 V DC
Nominal Input Voltage (UIN)24 V DC
Nominal Input Current at UIN5 mA
Total Sensor CurrentMax. 2 A
Typical Response TimeApprox. 500 µs
Protective CircuitShort-Circuit Protection, Overload Protection Of The Sensor Supply
Number of Outputs16
Digital Outputs Connection MethodSpring-Cage Connection
Digital Outputs Connection Technology3-Conductor
Digital Outputs Protective CircuitShort-Circuit And Overload Protection
Output Voltage24 V DC
Maximum Output Current Per Channel500 mA
Maximum Output Current Per Module / Terminal Block8 A
Maximum Output Current Per Module8 A
Nominal Output Voltage24 V DC
Digital Outputs Nominal Load, Inductive12 VA
Digital Outputs Nominal Load, Lamp12 W
Digital Outputs Nominal Load, Ohmic12 W
Supply Voltage24 V DC
Supply Voltage Range19.2 V DC … 30 V DC (Including All Tolerances, Including Ripple)
Power SupplyMax. 8 A
Current Draw25 mA
Communication ProtocolCANopen
Connection MethodD-SUB-9 Female Connector
Number of Positions9
Transmission Speed10 kbps … 1 Mbps
Width156 mm
Height141 mm
Depth57 mm
Ambient Temperature (Operation)-25 °C … 60 °C
Degree of ProtectionIP20
ConditionNew
Stock KeyJO-004
