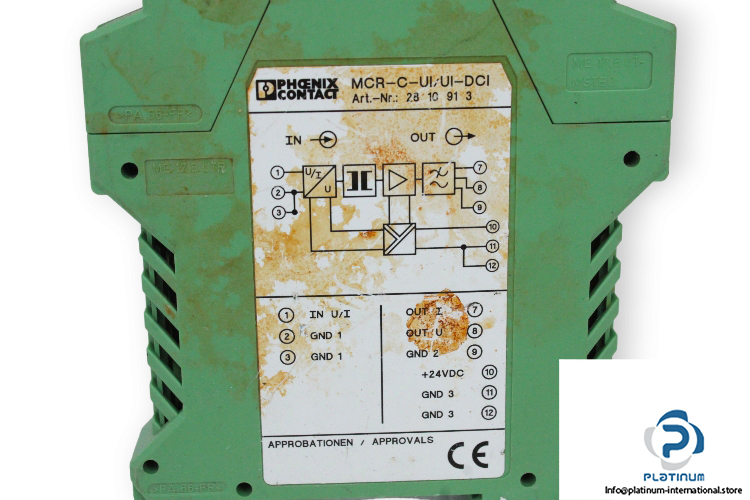

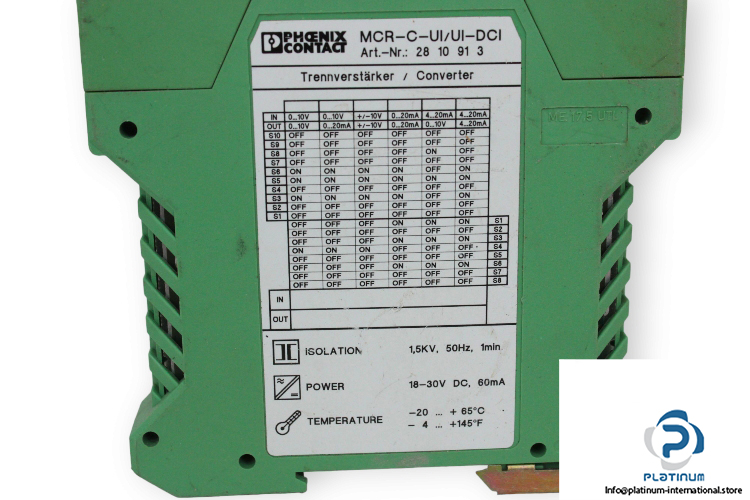

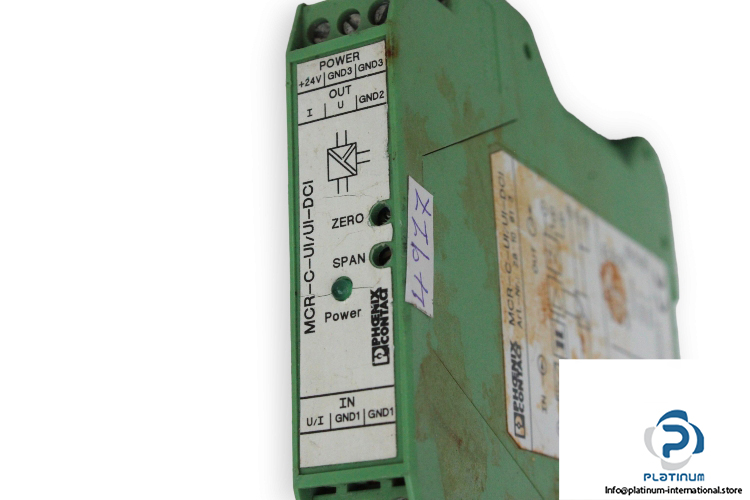

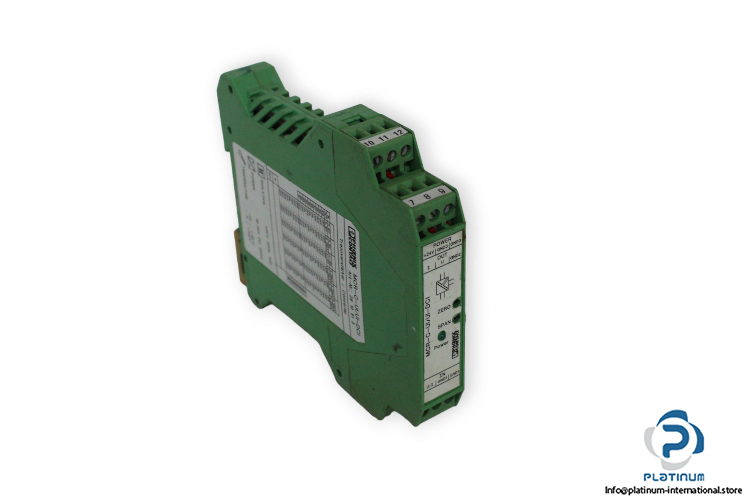

Phoenix Contact MCR-C-Ui/Ui-DCI Signal Conditioner

Manufacture: Phoenix Contact
Type: Signal Conditioner
Model: MCRCUIUIDCI
Art No.: 28 10 91 3

Supply Voltage Range: 18 … 30 V DC
Max. Current Consumption: 60 Ma
Maximum power dissipation for nominal condition: 900 mW
Analog Input/Output: 0/4 … 20 mA, 0 … 10 V
Degree of protection: IP20
Number of Channels: 1 Channel
Connection Method: Pluggable screw connection
Housing Material: Polyamide PA non-reinforced
Mounting Type: DIN rail mounting
Ambient Temperature: -20 … 65 °C
Dimensions: 114,5 x 99 x 17,5 mm
