Phoenix Contact MCR-R/I-4-V-DC Resistance Transducer
Potentiometer Position Transducer
Phoenix Contact MCR-R/I-4-V-DC converts resistance signals into accurate 4“20 mA current outputs. Compact DIN rail housing, IP20 protection, and reliable performance for automation systems.Phoenix Contact MCR-R/I-4-V-DC Potentiometer Position Indicator Transducer

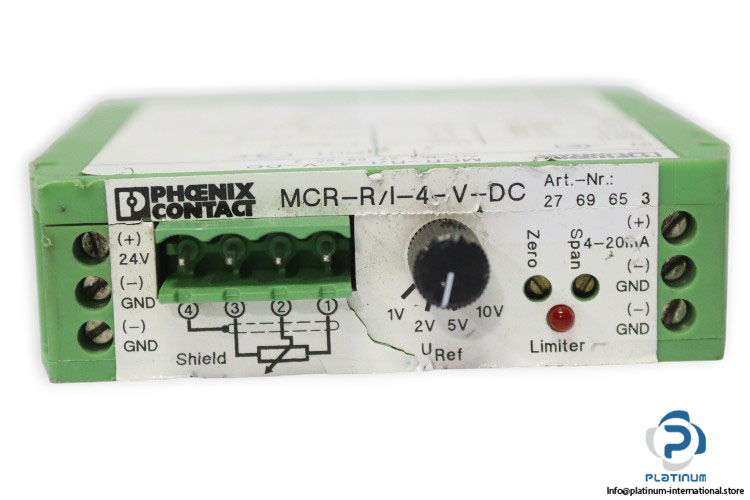

The Phoenix Contact MCR-R/I-4-V-DC is a reliable potentiometer position indicator and resistance transducer designed for accurate signal conversion from resistance to current. Built in a compact green DIN rail housing, it ensures precision, stability, and durability in industrial automation and control systems.
Manufacturer: Phoenix Contact
Type: Potentiometer Position Indicator Transducer / Resistance Transducer
Model: MCR-R/I-4-V-DC
Art. No.: 27 69 65 3 / 2769653
Series: MCR

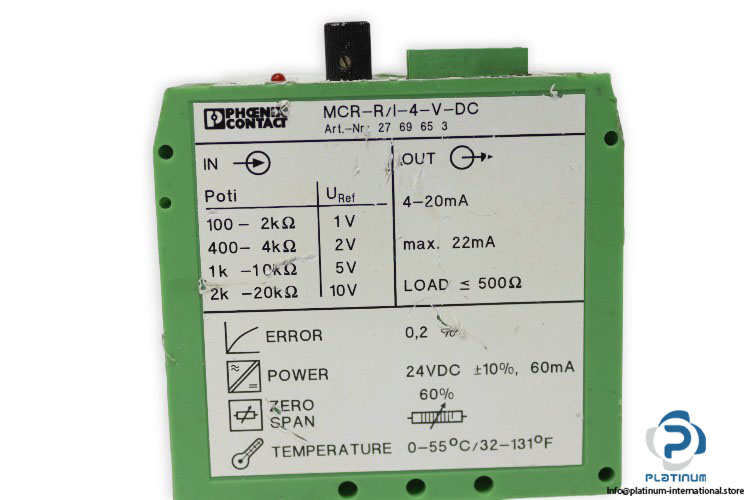

Input (Resistance / Potentiometer):
100 to 2 kohm / Uref 1 V
400 to 4 kohm / Uref 2 V
1 k to 10 kohm / Uref 5 V
2 k to 20 kohm / Uref 10 V
Output (Current Signal):
| Standard output | 4 to 20 mA |
| Maximum output current | 22 mA |
| Maximum load | less than 500 ohms |
| Supply Voltage | 24 V DC |
| Current Consumption | Approx. 60 mA |
| Signal Conversion | Resistance to Current (linear) |
| Performance | Error: 0.2 % |
| Minimum Potentiometer Use for ZERO/SPAN Alignment | 60 % |
| Temperature Coefficient | 60 ppm/K |
| Operating Temperature | -25 to +80 °C |
| Working Temperature Range | 0 to 55 °C |
| Protection Degree | IP20 |

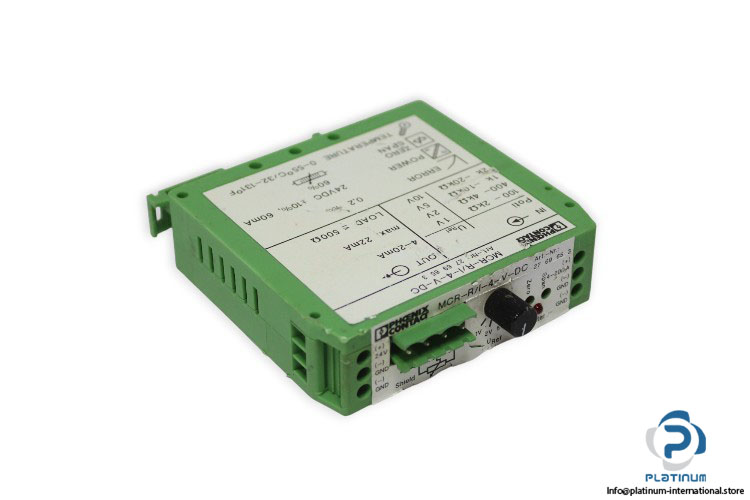

| Housing | Compact green DIN rail mount housing |

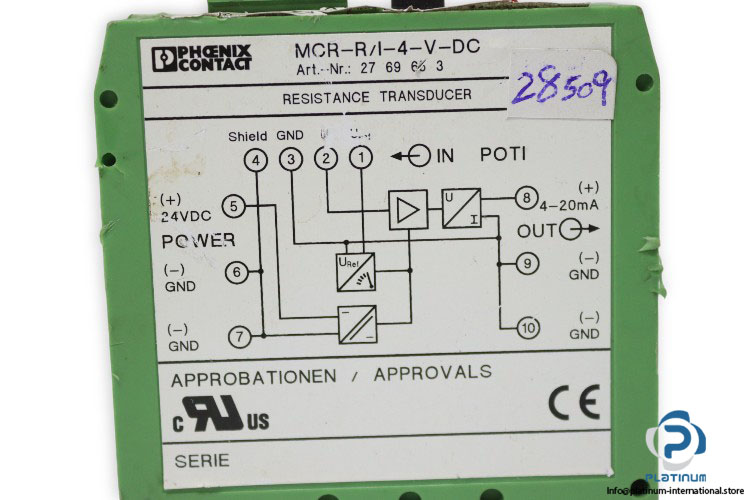

| Connection | Screw terminals for power, input, and output |
| Dimensions (W x H x D) | 22.5 x 79 x 100 mm |
