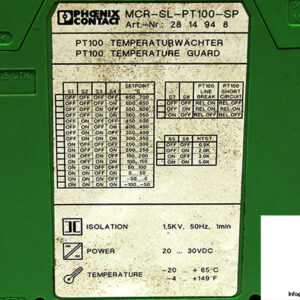

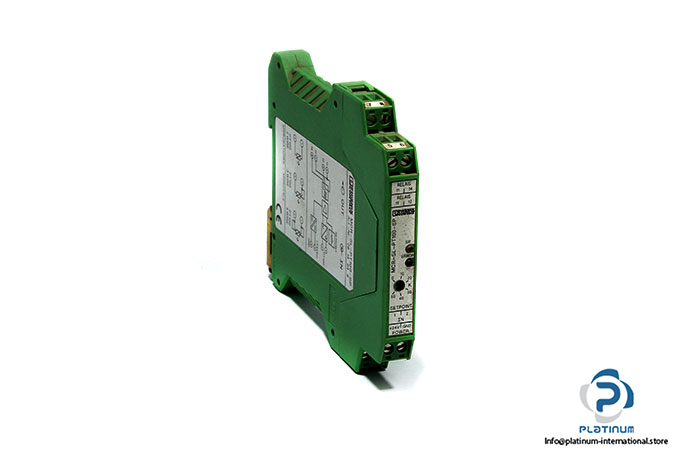

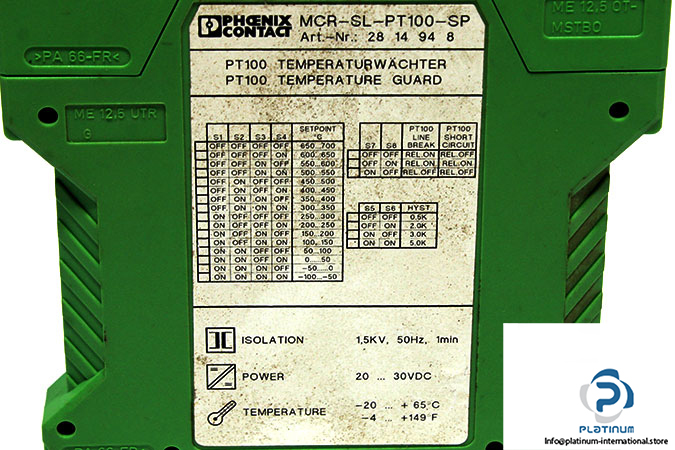

Phoenix Contact MCR-SL-PT100-SP Temperature Monitoring Relay

Temperature Monitoring Relay MCR-SL-PT100-SP

The MCR-SL-PT100-SP from Phoenix Contact is a highly reliable temperature monitoring relay designed to monitor temperature signals from Pt 100 sensors. With its robust features and versatility, it ensures precise temperature monitoring in various industrial applications.

Manufacturer: Phoenix Contact

Model: MCR-SL-PT100-SP

Part No: 2814948

Key Features:

• Supply Voltage Range: 20 / 30 V DC, ensuring stable operation across a wide voltage range
• Current Consumption: Max. <30 mA for energy-efficient operation
• Temperature Measurement Range: -100 / 700 °C, suitable for a wide range of temperature sensing applications
• Degree of Protection: IP20, providing reliable protection in industrial environments
• Sensor Type (RTD): Pt 100, a commonly used temperature sensor
• Switching Contact: 1 PDT (Single Pole Double Throw) for reliable switching functionality
• Test Voltage: 1.5 kV (50 Hz, 1 min), ensuring high electrical isolation
• Ambient Temperature Range: -20 / 65 °C for versatile operation in varying conditions

The MCR-SL-PT100-SP is a perfect solution for industrial temperature monitoring, providing accurate and efficient performance in demanding environments.
