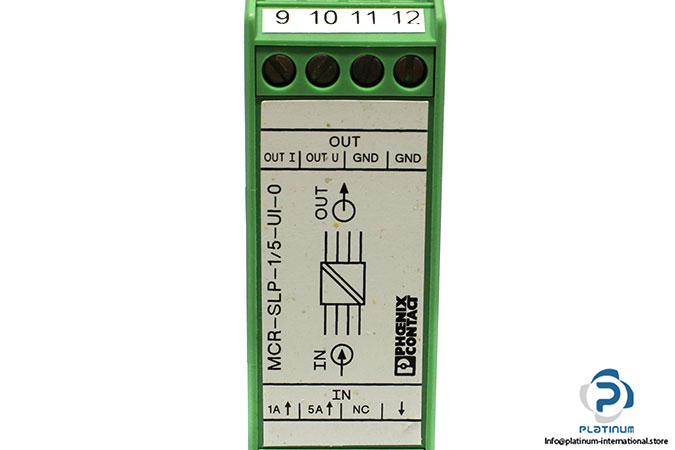

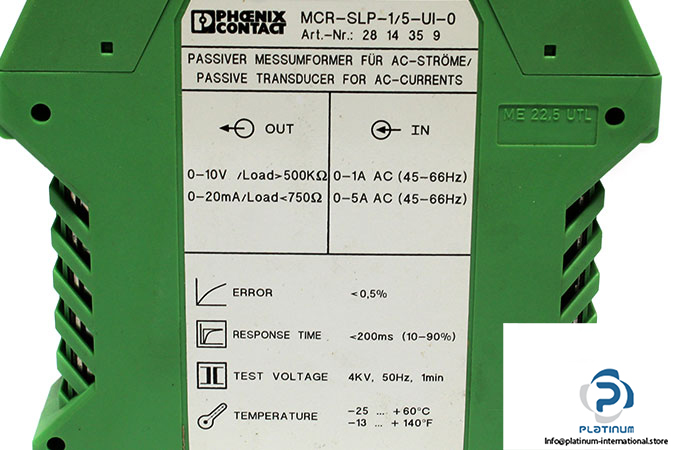

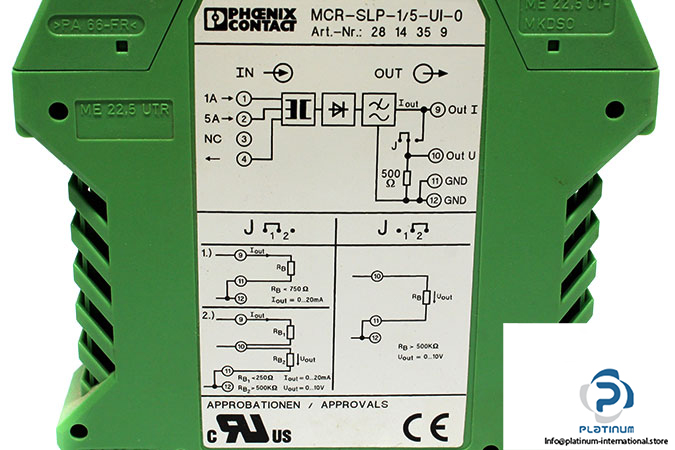

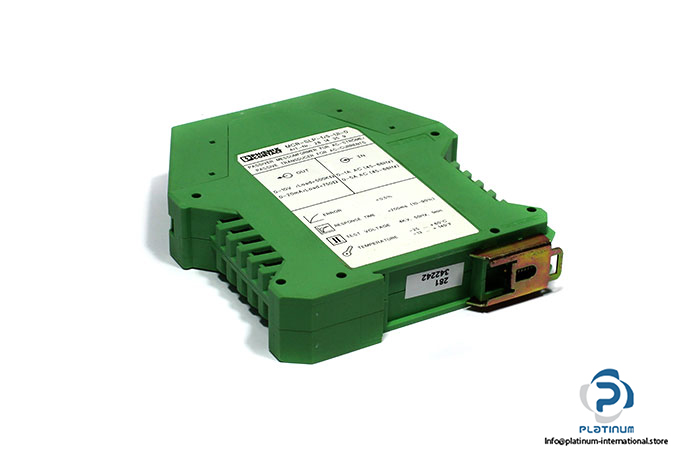

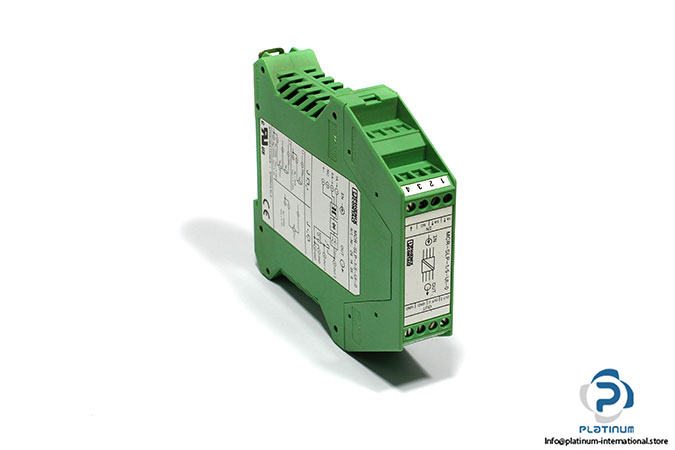

Phoenix Contact MCR-SLP-1/5-UI-0 Current Transducer

Manufacturer: Phoenix Contact
Type: Current Transducer
Model: MCRSLP1/5UI0
Art. No.: 28 14 35 9

Input Data:
Input current range: 0 … 1 A AC and 0 … 5 A AC
Frequency: 45 … 66 Hz
Surge strength: 50 A (1s, 0 … 1 A), 100 A (1s, 0 … 5 A)
Power dissipation: 1.6 VA (at IA = 20 mA, 0 … 1 A), 2.2 VA (I = 20 mA, 0 … 5 A)
Rated insulation voltage: 300 V AC
Curve type: Sine
Output Data:
Voltage Output signal: 0 … 10 V
Maximum Output Signal: 20 V
Current Output: 0 … 20 mA
Maximum Output Signal: 30 mA
Connection Method: Screw connection
Screw thread: M3
Housing Material: Polyamide PA non-reinforced
Degree of Protection: IP20
Ambient Temperature: -25 … 60 °C
Dimensions: 22.5 x 114.5 x 99 mm
