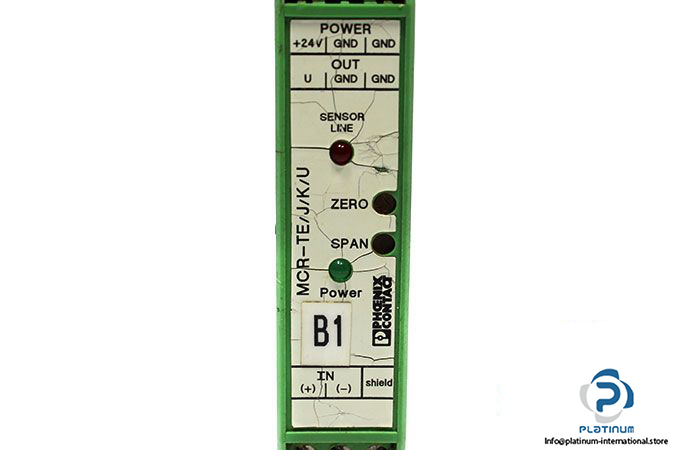

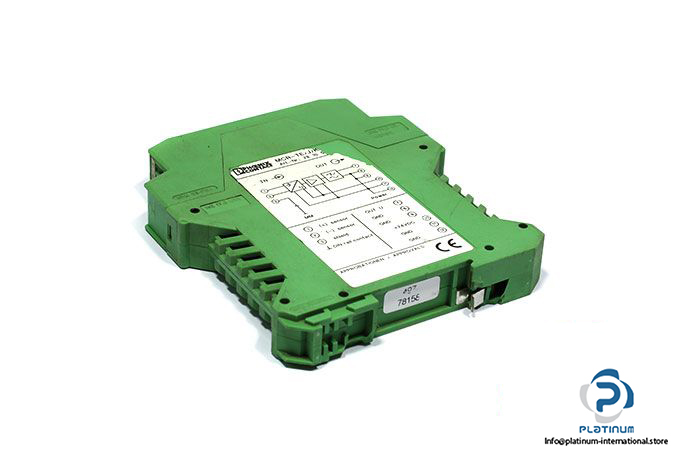

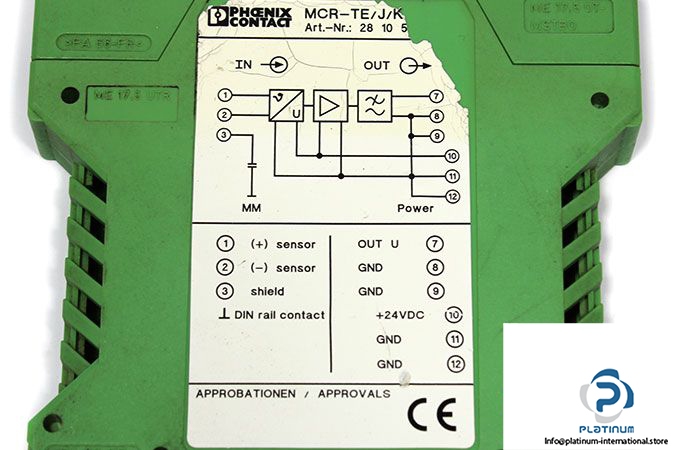

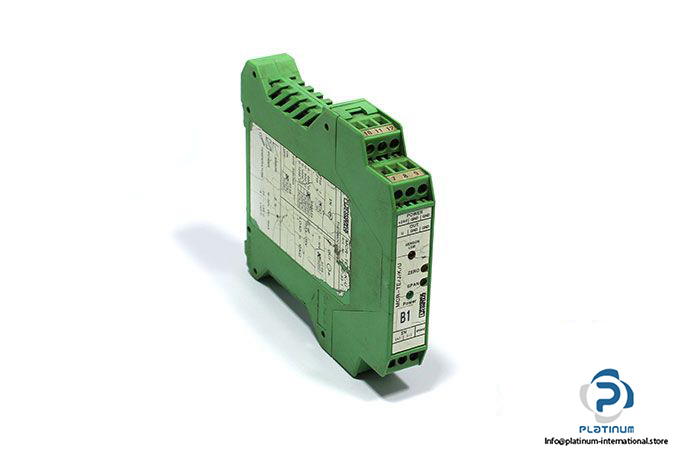

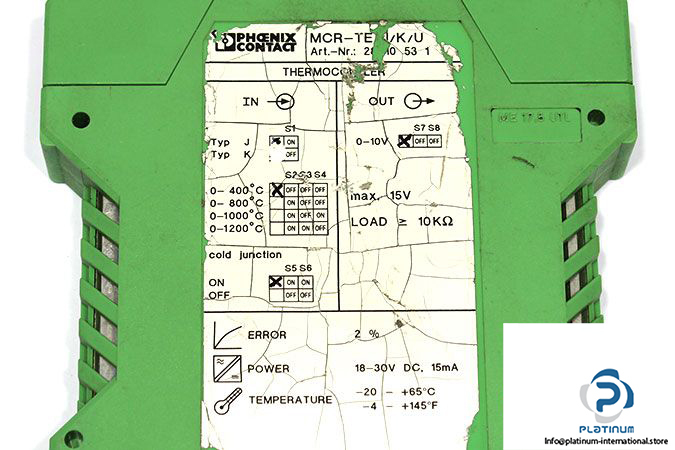

Phoenix Contact MCR-Te/J/K/U Thermocouple Measuring Transducer

Manufacturer: PHOENIX CONTACT

Type: Thermocouple Measuring Transducer

Model: MCR-TE/J/K/U

Art No.: 2810531

Supply Voltage: 18 … 30 V DC

Max. Current Consumption: 20 m

Voltage output signal: 0 … 10 V

Max. voltage output signal: 15 V

Load/output load voltage output: ≥ 10 kΩ

Connection method Pluggable: Screw connection

Housing material: Polyamide PA non-reinforced

Ambient Temperature: -20 °C … 65 °C

Dimensions: 110 x 100 x 18 mm
