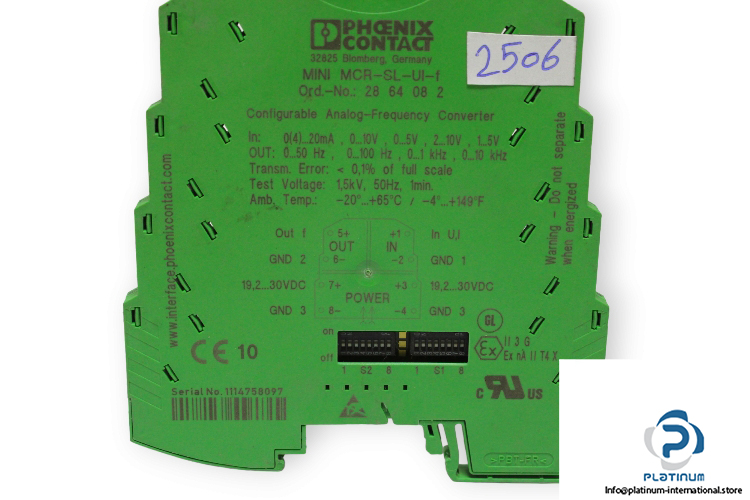

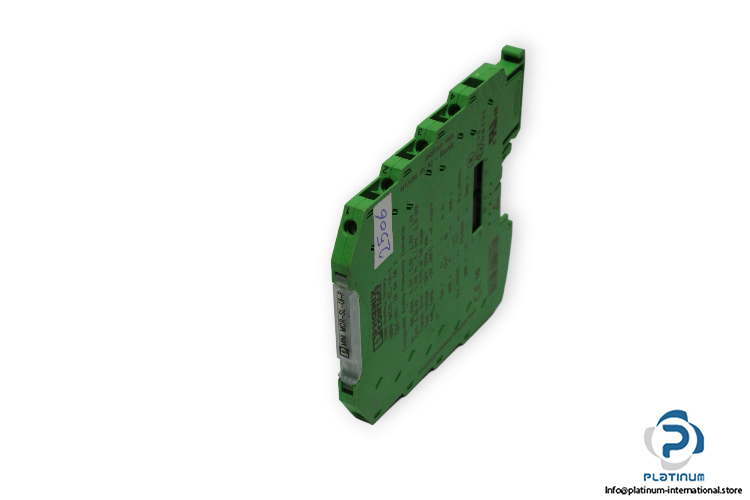

Phoenix Contact Mini MCR-SL-UI-F Frequency Value Transformer

Manufacturer: Phoenix Contact
Type: Frequency value transformer/Configurable analog frequency transducer
Model: MINIMCRSLUIF
Part No.: 2864082

Nominal supply voltage: 24 V DC (19.2 V DC … 30 V DC)
Voltage input signal: 0 … 5 V,1 … 5 V,0 … 10 V,2 … 10 V
Output frequency: 0 … 50 Hz,0 … 100 Hz,0 … 1 kHz, 0 … 10 kHz
Current input signal: 0 … 20 mA,4 … 20 mA
Test voltage: 1.5 kV,50 Hz,1 min
Connection method: Screw connection
Mounting type: DIN rail mounting
Screw thread: M3
Pollution degree: 2
Test voltage: 1.5 kV
Degree of protection: IP20
Ambient operation temperature: -20 … 65 °C
Dimensions: 6.2 x 93.1 x 101.2 mm
