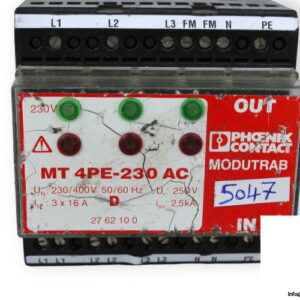

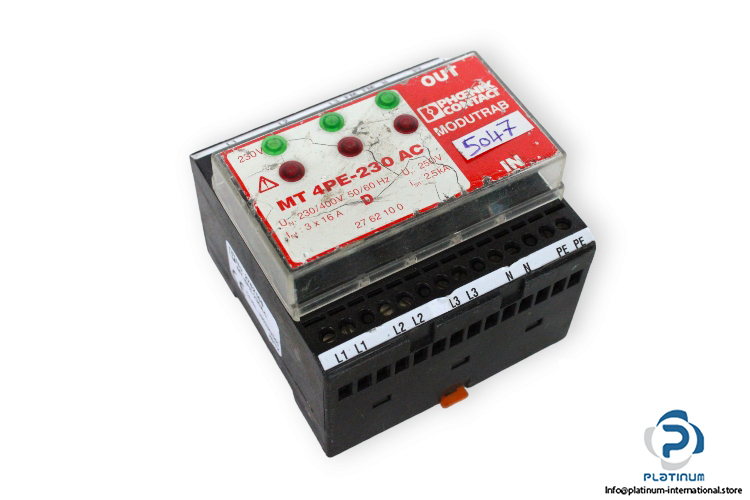

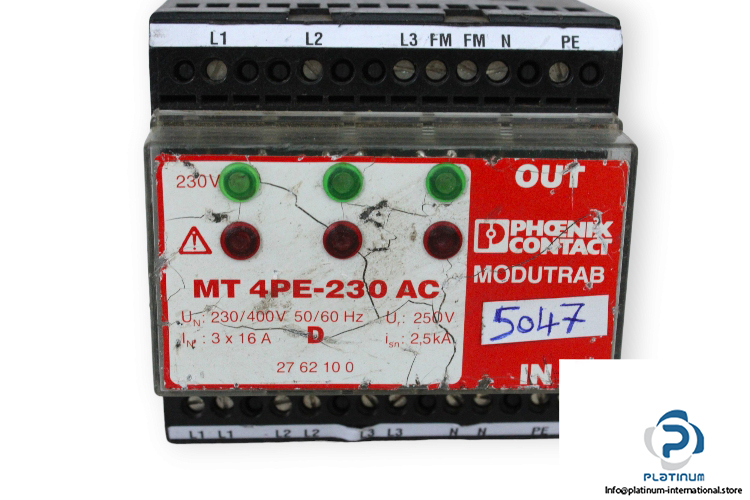

Phoenix Contact MT 4PE-230 AC Surge Protection Device

Manufacture: Phoenix Contact
Type: Surge protection device
Model: MT4PE230AC

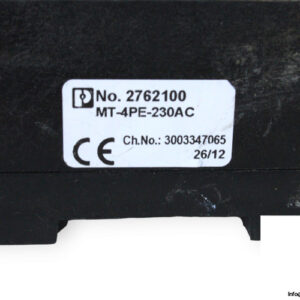

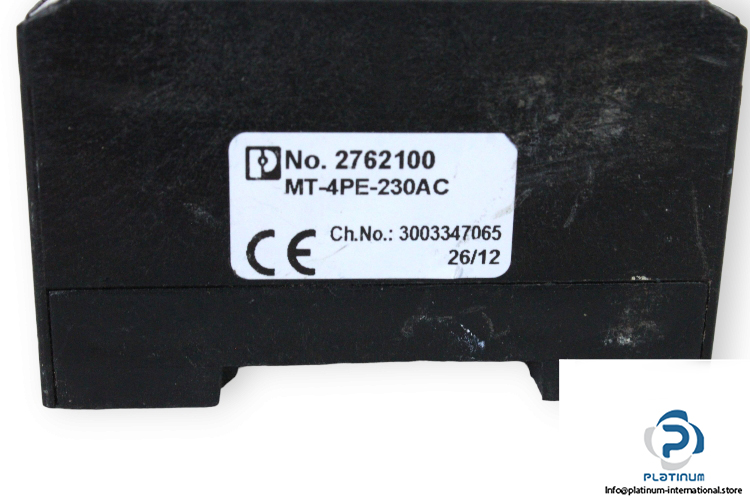

Order No.: 27 62 10 0

Nominal voltage Un: 230/400 V AC
Nominal frequency: 50/60 Hz
Nominal current In: 3 X 16 A
Maximum continuous operating voltage Uc: 250 V AC
Number of positions: 4
Nominal discharge current In: 2.5 kA
Max. required back-up fuse: 16 A
Switching function: NC contact
Maximum operating voltage U max.: 250 V AC
Max. operating current Imax : 1 A
Connection method: Screw connection
Screw thread: M3
Housing material: PA
Degree of protection: IP20
Mounting type: DIN rail 35 mm
Ambient temperature (operation): -25 … 75 °C
Dimensions: 75 x 77.5 x 63 mm
