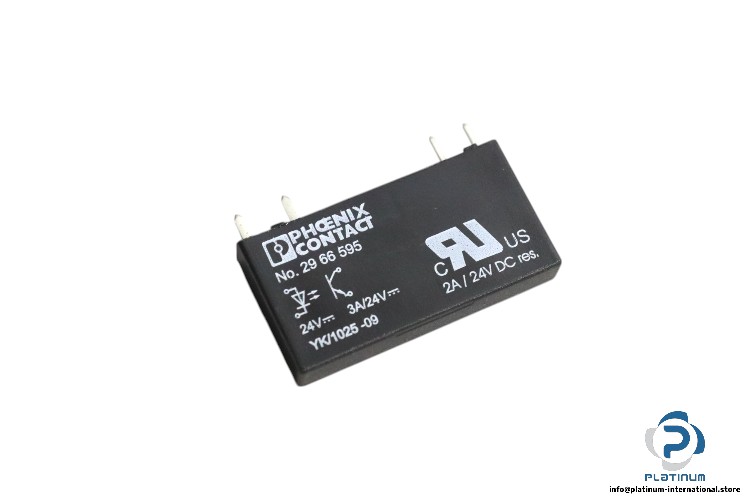

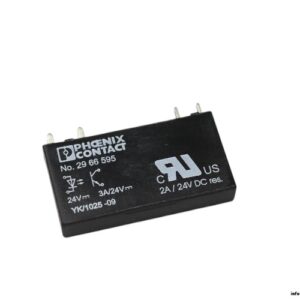

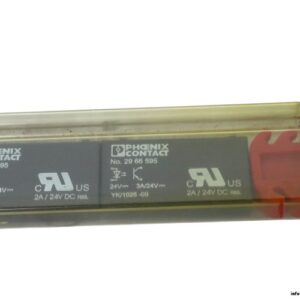

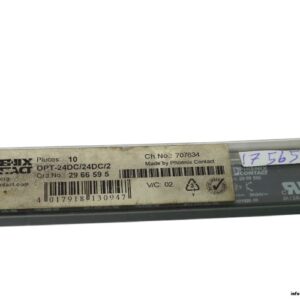

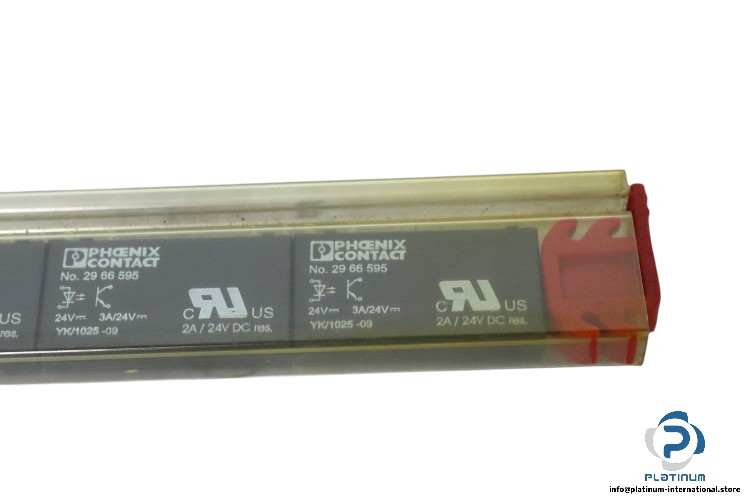

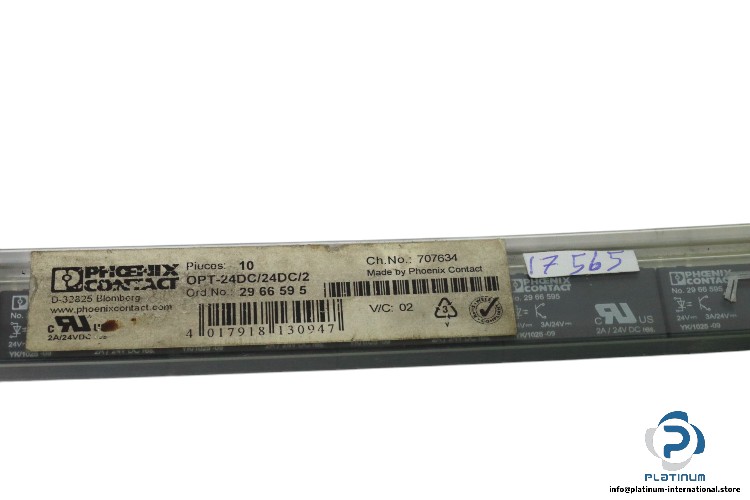

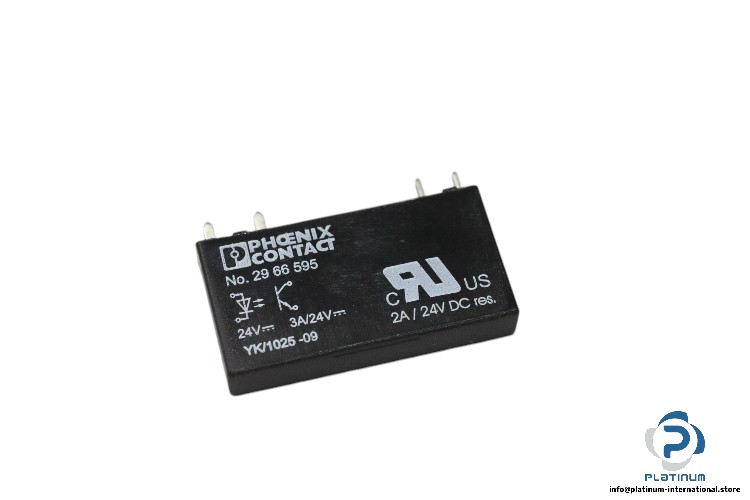

Phoenix Contact OPT-24DC/24DC/2 Miniature Solid-State Relay

Phoenix Contact Miniature Solid-State Relay – OPT-24DC/24DC/2

The Phoenix Contact OPT-24DC/24DC/2 Miniature Solid-State Relay is designed to switch DC circuits with high reliability and low power dissipation. With an electronic output, it provides fast switching times and a wide input voltage range for flexible applications in industrial automation.

• Manufacturer: Phoenix Contact
• Type: Miniature Solid-State Relay
• Model: OPT-24DC/24DC/2
• Part No.: 29 66 595
• Insulation: Basic insulation
• Pollution Degree: 2
• Maximum Power Dissipation: 0.17 W
• Test Voltage (Input/Output): 2.5 kV (50 Hz, 1 min.)

Input Data:

• Nominal Input Voltage (UN): 24 V DC
• Input Voltage Range: 19.2 V DC … 28.8 V DC
• Input Current at UN: 7 mA
• Response Time: 20 µs (at UN)
• Turn-off Time: 300 µs (at UN)
• Transmission Frequency: 300 Hz

Output Data:

• Contact Switching Type: 1 N/O contact
• Design of Digital Output: Electronic
• Output Voltage Range: 3 V DC … 33 V DC
• Limiting Continuous Current: 3 A
• Maximum Inrush Current: 15 A
• Output Circuit: 2-conductor, floating

General Information:

• Color: Black
• Degree of Protection: RT III
• Ambient Temperature: -25 … 60 °C
• Dimensions (H X W X D): 28 X 5 X 15 mm
