Phoenix Contact PLC-BPT-24DC/21 Relay Base With State Relay
New
In stock191 unitsReady to ship
Relay Base
Phoenix Contact PLC-BPT-24DC/21 relay base, 24 V DC input, push-in connection, DIN rail mounting, LED status display, and integrated protective circuit. Supplied attached with 2966595 state relay.2124DC24v2900445BaseBPTContactControldcDINElectronicinIndustrialInterfaceModuleOutputPhoenixPLCPushrailRelayterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

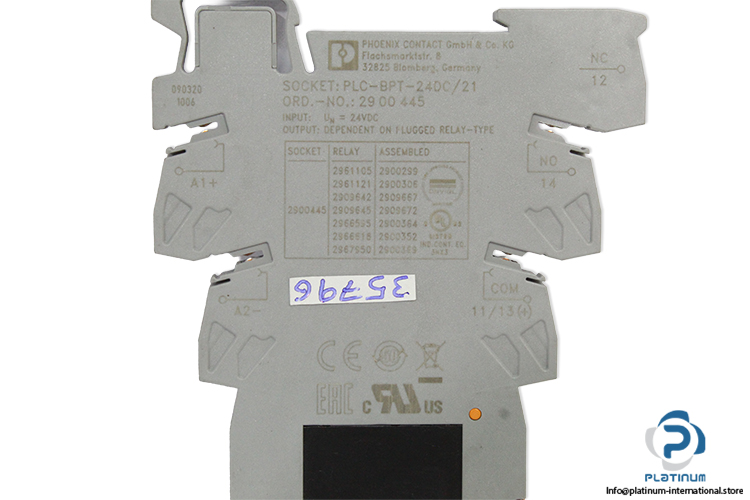

Phoenix Contact PLC-BPT-24DC/21 Relay Base “ Part No. 2900445

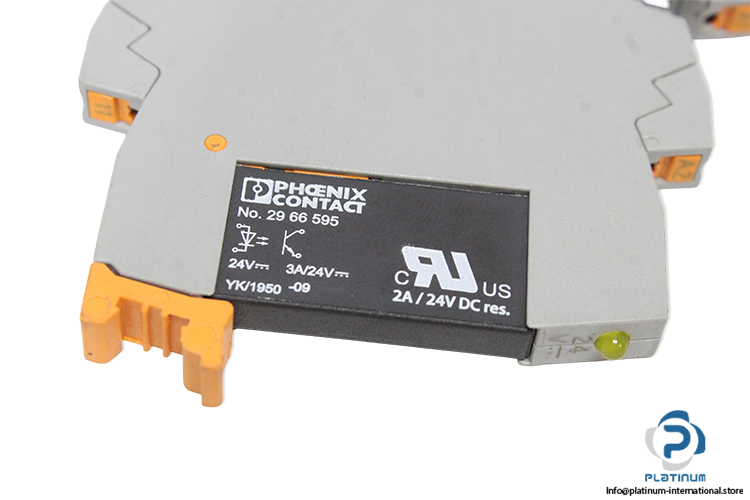

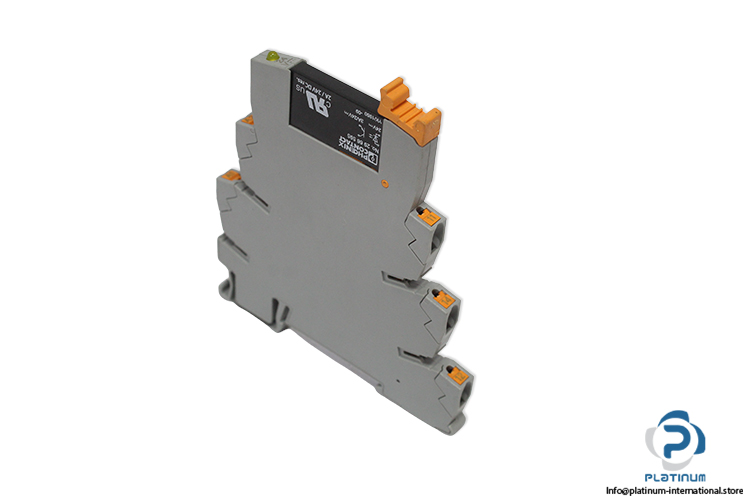

The Phoenix Contact PLC-BPT-24DC/21 relay base is a slim interface module designed for reliable signal switching and industrial control applications. It features integrated protective circuitry and LED status indication, and it is supplied attached with Phoenix Contact 2966595 state relay.
Manufacturer: Phoenix Contact
Type: Relay Base
Model: PLC-BPT-24DC/21
Part No.: 2900445
Code: YK/1950-09
Attached With: Phoenix Contact 2966595 State Relay
| Protective Circuit | Damping Diode, Polarity Protection Diode |
| Nominal Input Voltage (UN) | 24 V DC |
| Input Voltage Range (In Reference To UN) | 0.8 ... 1.2 |
| Input Voltage Range | 19.2 V DC ... 28.8 V DC |
| Switching Threshold "0" Signal (In Reference To UN) | 0.4 |
| Switching Threshold "1" Signal (In Reference To UN) | 0.7 |
| Typical Input Current At UN | 7 mA |
| Typical Response Time | 20 µs (At UN) |
| Typical Turn-Off Time | 300 µs (At UN) |
| Transmission Frequency | 300 Hz |
| Contact Switching Type | 1 N/O Contact |
| Design Of Digital Output | Electronic |
| Output Voltage Range | 3 V DC ... 33 V DC |
| Limiting Continuous Current | 3 A (See Derating Curve) |
| Maximum Inrush Current | 15 A (10 ms) |
| Voltage Drop At Max. Limiting Continuous Current | ‰¤ 150 mV |
| Output Circuit | 2-Conductor, Floating |
| Maximum Power Dissipation For Nominal Condition | 0.17 W |
| Test Voltage (Input/Output) | 2.5 kV (50 Hz, 1 min., Input/Output) |
| Connection Method | Push-In Connection |
| Stripping Length | 10 mm |
| Conductor Cross Section (AWG) | 26 / 14 |
| Status Signal Display | LED |
| Mounting Type | DIN Rail Mounting |
| Dimensions (Base) | 6 x 80 x 94 mm |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient Temperature (Operation “ Module) | -25 °C ... 60 °C |
| Standards / Regulations | IEC 60664, EN 50178 |
